Запчасти Case IH MAGNUM 280 (55.130.AR[02]) - HARNESS, FRONT HITCH - BSN - ZERF08099 (55) - ELECTRICAL SYSTEMS

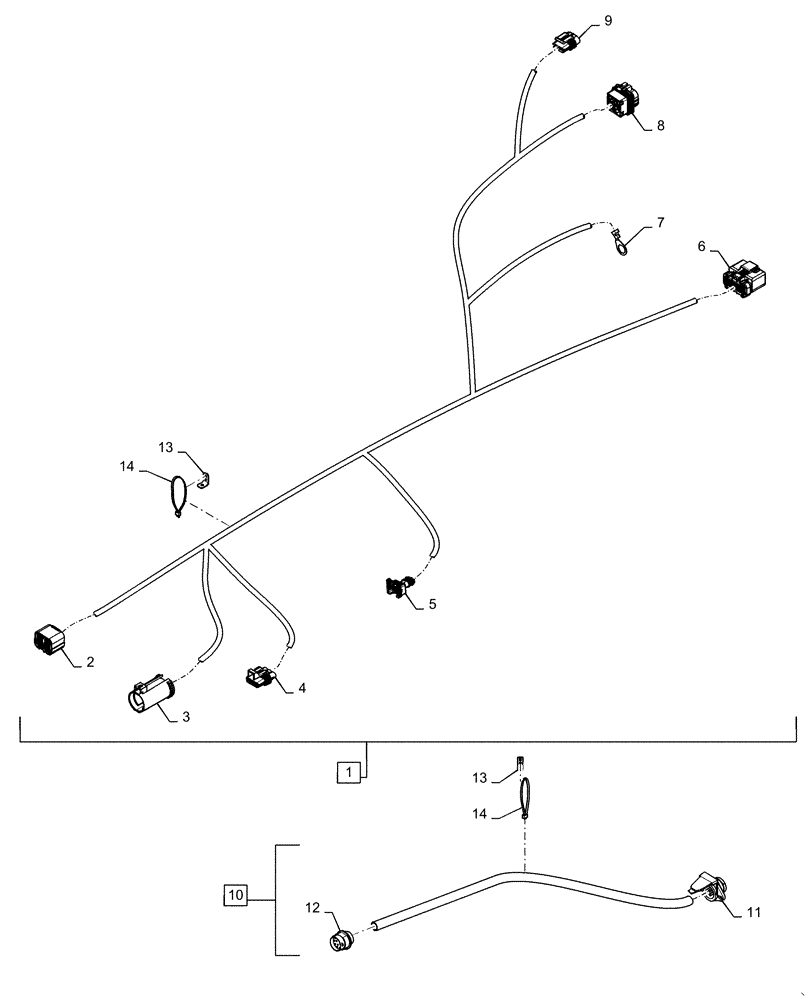

Схема запчастей Case IH MAGNUM 280 - (55.130.AR[02]) - HARNESS, FRONT HITCH - BSN - ZERF08099 (55) - ELECTRICAL SYSTEMS
4
12
2
13
5
9
7
13
14
3
8
6
11
14
1
10

Артикул

Название

Примечание

Количество

1

47562446

WIRE HARNESS

Front Hitch, Incl 2 - 9

1шт.

2

82862752

ELEC CONNECTOR

X-150 to Zuidberg Harness

1шт.

3

87698223

MULTIPOLE CONNECTOR,Male, 7 Pole

X-2383 to Front Trailer Connection

1шт.

4

182073A1

CONNECTOR, ELEC

X-348 to Power Outlet Harness

1шт.

5

84607243

ELEC CONNECTOR,Female, 2 Cavities

X-324 Front PTO Valve

1шт.

6

87382928

WIRE CONNECTOR,Female, 14 Cavities

X-2382 to Engine Harness

1шт.

7

NSS

NOT SOLD SEPARAT

Ring Terminal M12 to Front Hitch Ground, Incl in 1

1шт.

8

87697757

ELEC CONNECTOR

X-346 Front Aux Power Relay

1шт.

9

87688712

WIRE CONNECTOR,Female

X-345 Front Hitch Aux B+ Fuse

1шт.

10

47628045

WIRE HARNESS

Trailer Harness Incl 11 - 12

1шт.

11

82001021

POWER SOCKET,7 Pins

X-343 To Trailer

1шт.

12

87698222

ELEC CONNECTOR

X-2383 To Front Hitch Harness

1шт.

13

47630647

BRACKET

Wire Harness

2шт.

14

86566990

CABLE TIE,292mm OAL x 4.8mm W

1шт.

Выбрано товаров: 14
