Запчасти Case IH MAGNUM 280 (55.100.DP[06]) - VAR - 420402, 420403, 424826, 429381, 429382, 429383 - HARNESS, AUXILIARY, REMOTE CONTROL VALVE (55) - ELECTRICAL SYSTEMS

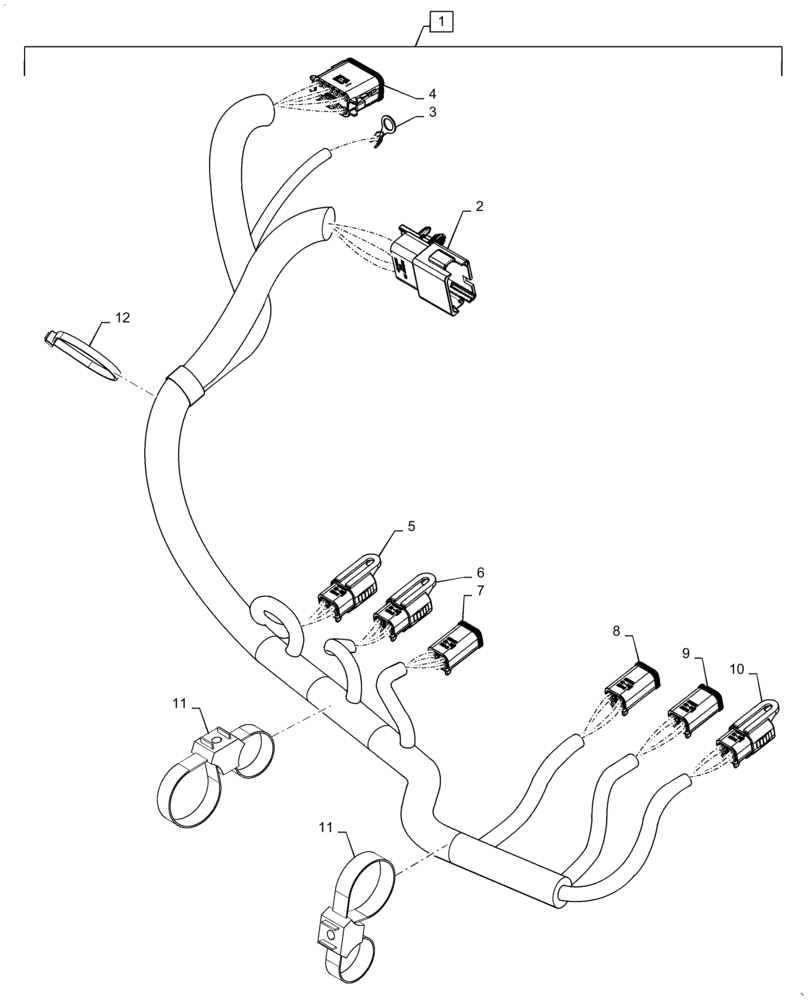

Схема запчастей Case IH MAGNUM 280 - (55.100.DP[06]) - VAR - 420402, 420403, 424826, 429381, 429382, 429383 - HARNESS, AUXILIARY, REMOTE CONTROL VALVE (55) - ELECTRICAL SYSTEMS
5
4
7
1
9
6
11
8
10
12
11
2
3

Артикул

Название

Примечание

Количество

1

84588912

WIRE HARNESS

Auxiliary Remote Valves, Incl 2 - 10

1шт.

2

87695724

ELEC CONNECTOR,Male, 12 Pole

X-385A to GPS Harness

1шт.

3

NSS

NOT SOLD SEPARAT

M8 Ring Terminal, Incl in 1, X-677 LH Side Rear Cab Outside; Incl in 1

1шт.

4

87696130

ELEC CONNECTOR,Female, 12 Cavities

X-434 to Cab Harness

1шт.

5

87694153

CONTACT HOUSING,Female, 4 Cavities

X-340 Remote Valve 6

1шт.

6

87694153

CONTACT HOUSING,Female, 4 Cavities

X-141 Remote Valve 2

1шт.

7

87694153

CONTACT HOUSING,Female, 4 Cavities

X-140 Remote Valve 1

1шт.

8

87694153

CONTACT HOUSING,Female, 4 Cavities

X-142 Remote Valve 3

1шт.

9

87694153

CONTACT HOUSING,Female, 4 Cavities

X-143 Remote Valve 4

1шт.

10

87694153

CONTACT HOUSING,Female, 4 Cavities

X-144 Remote Valve 5

1шт.

11

86991000

CLAMP

Dual Tie

2шт.

12

86566989

CABLE TIE,208mm L

1шт.

Выбрано товаров: 12
