(55.100.DP[02]) - VAR - 449112 - HARNESS, ARMREST - WITHOUT MOTOR

Запчасти Case IH MAGNUM 280 (55.100.DP[02]) - VAR - 449112 - HARNESS, ARMREST - WITHOUT MOTOR (55) - ELECTRICAL SYSTEMS

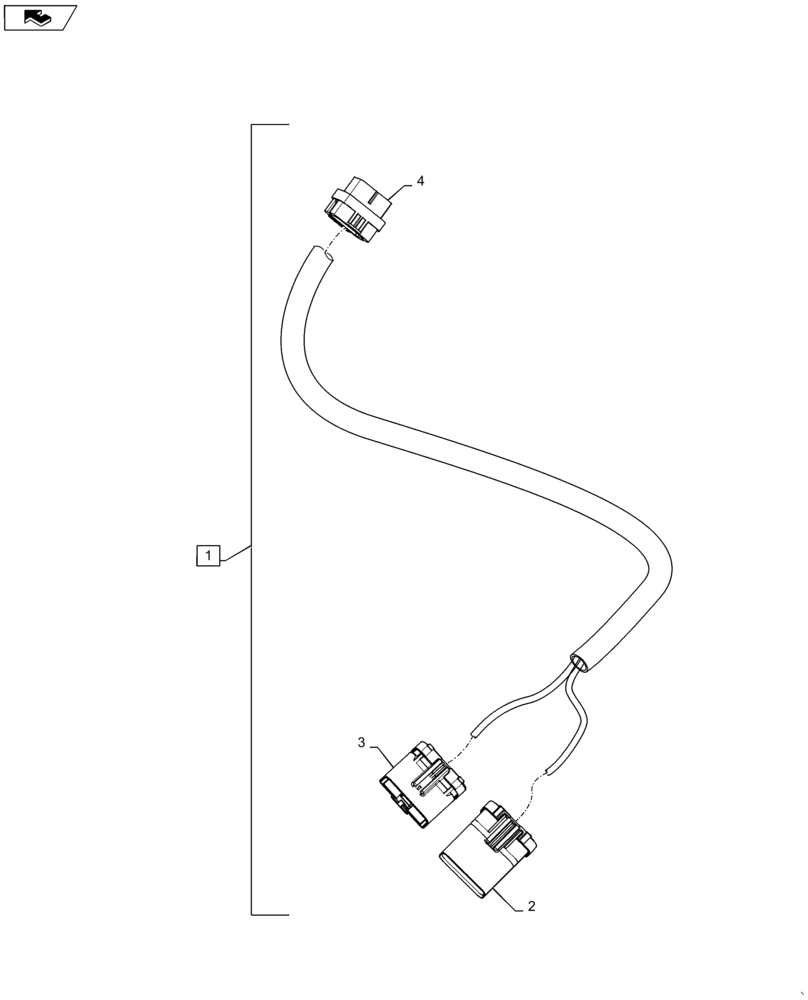

Схема запчастей Case IH MAGNUM 280 - (55.100.DP[02]) - VAR - 449112 - HARNESS, ARMREST - WITHOUT MOTOR (55) - ELECTRICAL SYSTEMS
4
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47632806

WIRE HARNESS

Armrest Without Motor, Incl 2 - 4

1шт.

2

87410946

MULTIPOLE CONNECTOR,Female, 34 Cavities

34 Pin, 137M, To Armrest Console

1шт.

3

87382929

WIRE CONNECTOR,Male, 14 Cavities

14 Pin, 280F, To Cab Harness

1шт.

4

87382926

WIRE CONNECTOR,Female, 14 Cavities

14 Pin, 281F, To Cab Harness

1шт.

Выбрано товаров: 4
