Запчасти Case IH MAGNUM 280 (55.100.DO[03]) - IMPLEMENT CONNECTORS & MOUNTING (55) - ELECTRICAL SYSTEMS

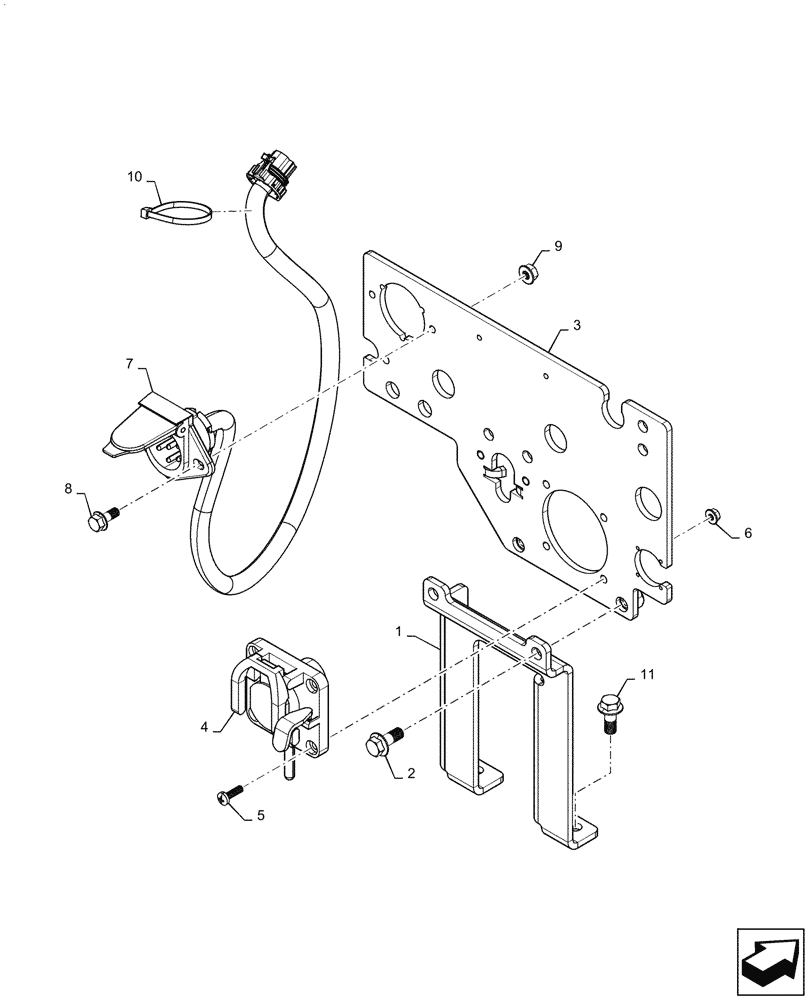

Схема запчастей Case IH MAGNUM 280 - (55.100.DO[03]) - IMPLEMENT CONNECTORS & MOUNTING (55) - ELECTRICAL SYSTEMS
6
11
1
3
9
10
7
5
8
4
2

Артикул

Название

Примечание

Количество

1

87574425

BRACKET

Support, Trailer Brake/Electrical Connector

1шт.

2

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

2шт.

3

84367305

SUPPORT

Trailer Brake/Electrical Connector

1шт.

4

87522416

ELEC CONNECTOR,Female, 5 Cavities

ISO Bus Breakaway, Implement

1шт.

5

840-1620

SCREW,Pan, M6 x 20mm, Cl 4.8

4шт.

6

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

4шт.

7

47745809

WIRE HARNESS

7-Pin Trailer Connector

1шт.

8

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

9

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

2шт.

10

86566989

CABLE TIE,208mm L

1шт.

11

48076614

BOLT,Hex, M10 x 25mm, Cl 8.8

2шт.

Выбрано товаров: 11
