(55.045.AD[01]) - VAR- 420228, 429199, 429380 - MOUNTING PARTS, WIRE HARNESS, SUSPENDED AXLE

Запчасти Case IH MAGNUM 280 (55.045.AD[01]) - VAR- 420228, 429199, 429380 - MOUNTING PARTS, WIRE HARNESS, SUSPENDED AXLE (55) - ELECTRICAL SYSTEMS

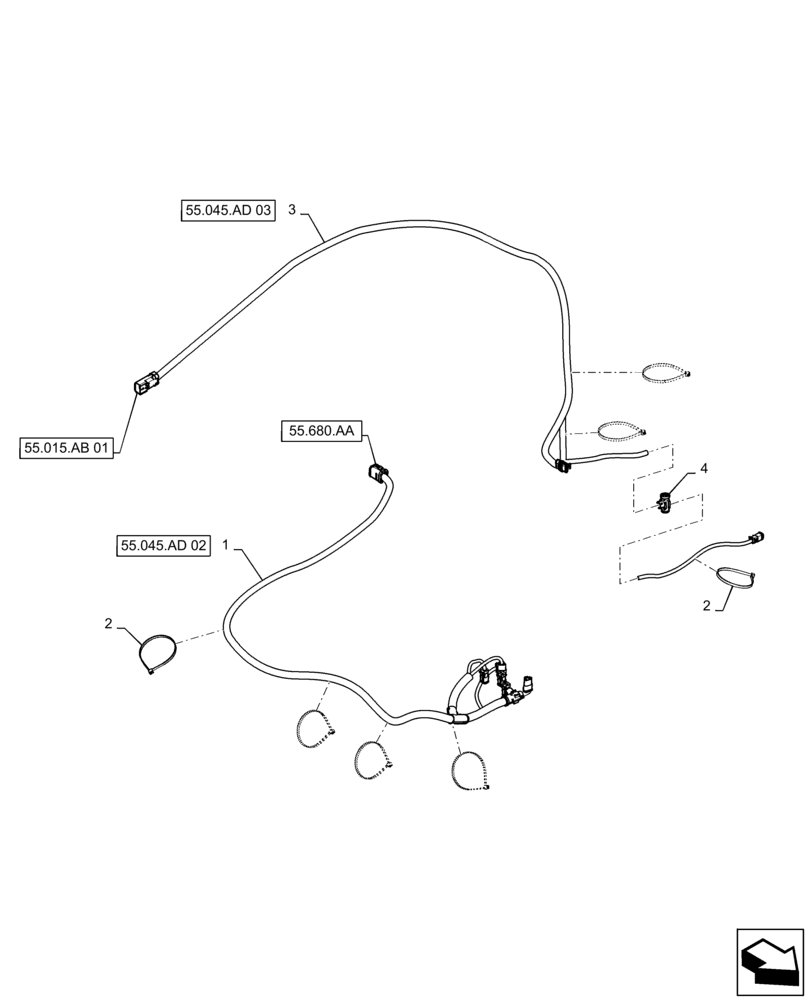

Схема запчастей Case IH MAGNUM 280 - (55.045.AD[01]) - VAR- 420228, 429199, 429380 - MOUNTING PARTS, WIRE HARNESS, SUSPENDED AXLE (55) - ELECTRICAL SYSTEMS
2
55.045.ad 02
55.045.ad 03
55.015.ab 01
55.680.aa
1
3
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47562392

WIRE HARNESS

Suspended Axle Solenoid, LF

1шт.

2

86566990

CABLE TIE,292mm OAL x 4.8mm W

8шт.

3

47385172

WIRE HARNESS

FSUS Sensor, LF

1шт.

4

84292754

CLIP,Cable Tie W/ Fir Tree, 5mm OD x 203mm OAL

Tie 203mm

2шт.

Выбрано товаров: 4
