Запчасти Case IH MAGNUM 280 (55.024.AA[03]) - VAR - 429330, 429331, 429332, 429333 - WIRE HARNESS, TRANSMISSION, POWERSHIFT (55) - ELECTRICAL SYSTEMS

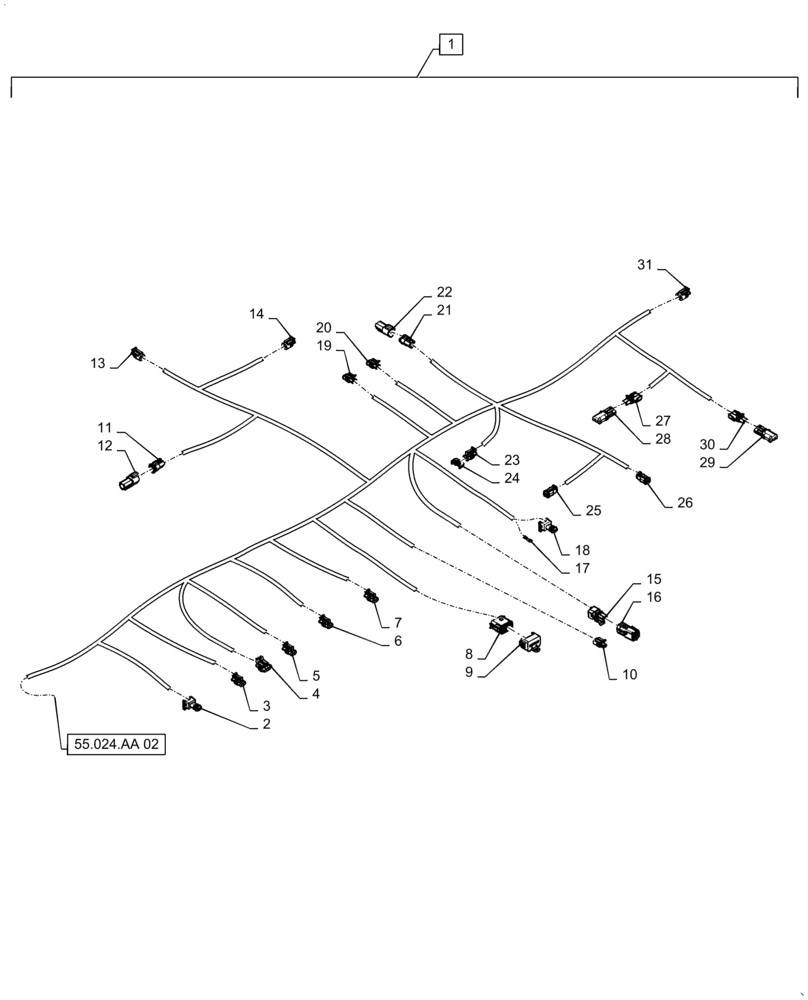

Схема запчастей Case IH MAGNUM 280 - (55.024.AA[03]) - VAR - 429330, 429331, 429332, 429333 - WIRE HARNESS, TRANSMISSION, POWERSHIFT (55) - ELECTRICAL SYSTEMS
31
29
27
55.024.aa 02
30
18
12
3
20
23
22
11
24
7
6
26
14
10
28
15
25
5
16
9
8
17
1
2
13
4
21
19

Артикул

Название

Примечание

Количество

1

47577034

WIRE HARNESS

Powershift Transmission, Incl 2 - 31

1шт.

2

84607243

ELEC CONNECTOR,Female, 2 Cavities

X-436 System Pressure

1шт.

2

87702681

TERMINAL

JPT Recep Contact

2шт.

3

82012083

WIRE CONNECTOR,Female

X-160 MFD Sol

1шт.

3

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Mini Mic Rcpt Contact

2шт.

4

87693712

ELEC CONNECTOR,Female, 3 Cavities

X-1199 PTO Torque Sensor

1шт.

4

87688852

ELEC. TERMINAL PIN

Female Metri-Pack .150 Terminal

3шт.

4

87693732

LOCKING TAB,Wedge Lock

Cream Secondary Lock - 3-way

1шт.

5

82012083

WIRE CONNECTOR,Female

X-036 Lo/C1 Clutch Sol

1шт.

5

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Mini Mic Rcpt Contact

2шт.

6

82012083

WIRE CONNECTOR,Female

X-037 Mid/C2 Clutch Sol

1шт.

6

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Mini Mic Rcpt Contact

2шт.

7

82012083

WIRE CONNECTOR,Female

X-038 High/C3 Clutch Sol

1шт.

7

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Mini Mic Rcpt Contact

2шт.

8

87708149

ELEC CONNECTOR

X-022 To Secondary Steering Harness

1шт.

8

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Stamped Socket Contact Size 16

10шт.

8

84068583

PLUG,12 - 16 Ga, White

Deutsch Sealing Plug 12 - 16

2шт.

8

87695651

LOCKING TAB,Wedge Lock

Wedge Lock 12-way Plug

1шт.

9

84391169

CAP,Male, 2 Pins

Dust Cap 12/15/18 Way Male Rec Hsg

1шт.

10

82012093

WIRE CONNECTOR

X-069 Trans Output Speed Sensor

1шт.

10

87690510

ELEC. TERMINAL PIN,Female, 0.75 - 1 mm2

Female Metri-Pack .150 Terminal

2шт.

11

87695580

ELEC CONNECTOR,Female, 3 Pole

X-154 Left Hand Draft

1шт.

11

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Stamped Socket Contact Size 16

3шт.

12

87695723

ELEC CONNECTOR,Male , 3 Pole

Deutsch DT Series 3-way Tab Hsg

1шт.

12

84068583

PLUG,12 - 16 Ga, White

Deutsch Sealing Plug 12 - 16

3шт.

12

84074639

LOCKING TAB,Wedge Lock

Wedge Lock 3-way Plug

1шт.

13

82012093

WIRE CONNECTOR

X-449 PTO Small Shaft Sw

1шт.

13

87690510

ELEC. TERMINAL PIN,Female, 0.75 - 1 mm2

Female Metri-Pack .150 Terminal

2шт.

14

82012093

WIRE CONNECTOR

X-145 PTO Shaft Speed

1шт.

14

87690510

ELEC. TERMINAL PIN,Female, 0.75 - 1 mm2

Female Metri-Pack .150 Terminal

2шт.

15

87692862

ELEC CONNECTOR

X-068 Radar

1шт.

15

87692880

CABLE TERMINAL

Male Weather Pack I Terminal

4шт.

16

87692881

WIRE CONNECTOR

Dust Cap, Delphi Weather Pack 4-way Tab Hsg

1шт.

16

87686742

PLUG

Green Cable Cavity Plug

4шт.

17

NSS

NOT SOLD SEPARAT

RING TERMINAL X-201 Transmission Filter Restriction, Incl in 1

1шт.

18

84607243

ELEC CONNECTOR,Female, 2 Cavities

X-089 Trans Oil Temp Sensor

1шт.

18

87702681

TERMINAL

JPT Recep Contact

2шт.

19

82012083

WIRE CONNECTOR,Female

X-158 Rear Diff Sol

1шт.

19

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Mini Mic Rcpt Contact

2шт.

20

82012083

WIRE CONNECTOR,Female

X-159 Rear PTO Sol

1шт.

20

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Mini Mic Rcpt Contact

2шт.

21

87695580

ELEC CONNECTOR,Female, 3 Pole

X-153 Right Hand Draft

1шт.

21

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Stamped Socket Contact Size 16

3шт.

22

87706349

HYD CONNECTOR

Dust Cap, For Deutsch DT Series 3-way Recep

1шт.

22

84074639

LOCKING TAB,Wedge Lock

Wedge Lock 3-way Plug

1шт.

23

82012083

WIRE CONNECTOR,Female

X-360 Brake Lube Solenoid

1шт.

23

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Mini Mic Rcpt Contact

2шт.

24

82035827

ELEC CONNECTOR,Female, 2-3 Cavities

Conn Cap 2-way AMP SS

1шт.

25

87695582

ELEC CONNECTOR,Female, 2 Pole

X-081 EDC Raise Solenoid

1шт.

25

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Stamped Socket Contact Size 16

2шт.

25

84074638

LOCKING TAB,Locking Wedge, Green

Wedge Lock 2-way Plug

1шт.

26

87695582

ELEC CONNECTOR,Female, 2 Pole

X-080 EDC Lower Solenoid

1шт.

26

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Stamped Socket Contact Size 16

2шт.

26

84074638

LOCKING TAB,Locking Wedge, Green

Wedge Lock 2-way Plug

1шт.

27

87692855

CONTACT HOUSING,Male, 2 Cavities

X-070 Trailer Brake Prefill Sol

1шт.

27

87692882

ELEC. TERMINAL PIN

Male Weather Pack Terminal

1шт.

27

87692880

CABLE TERMINAL

Male Weather Pack I Terminal

1шт.

28

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Dust Cap, Delphi Weather Pack 2-way Tab Hsg

1шт.

28

87686742

PLUG

Green Cable Cavity Plug

2шт.

29

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

X-318 Trailer Brake Solenoid

1шт.

29

87692880

CABLE TERMINAL

Male Weather Pack I Terminal

2шт.

30

87692855

CONTACT HOUSING,Male, 2 Cavities

Dust Cap, Delphi Weather Pack 2-way Herm Hsg

1шт.

30

87686742

PLUG

Green Cable Cavity Plug

2шт.

31

198550A1

CONNECTOR, ELEC

X-155 Rockshaft Pot

1шт.

31

87690510

ELEC. TERMINAL PIN,Female, 0.75 - 1 mm2

Female Metri-Pack .150 Terminal

3шт.

Выбрано товаров: 65
