Запчасти Case IH MAGNUM 280 (55.024.AA[02]) - VAR - 429330, 429331, 429332, 429333 - WIRE HARNESS, TRANSMISSION, POWERSHIFT (55) - ELECTRICAL SYSTEMS

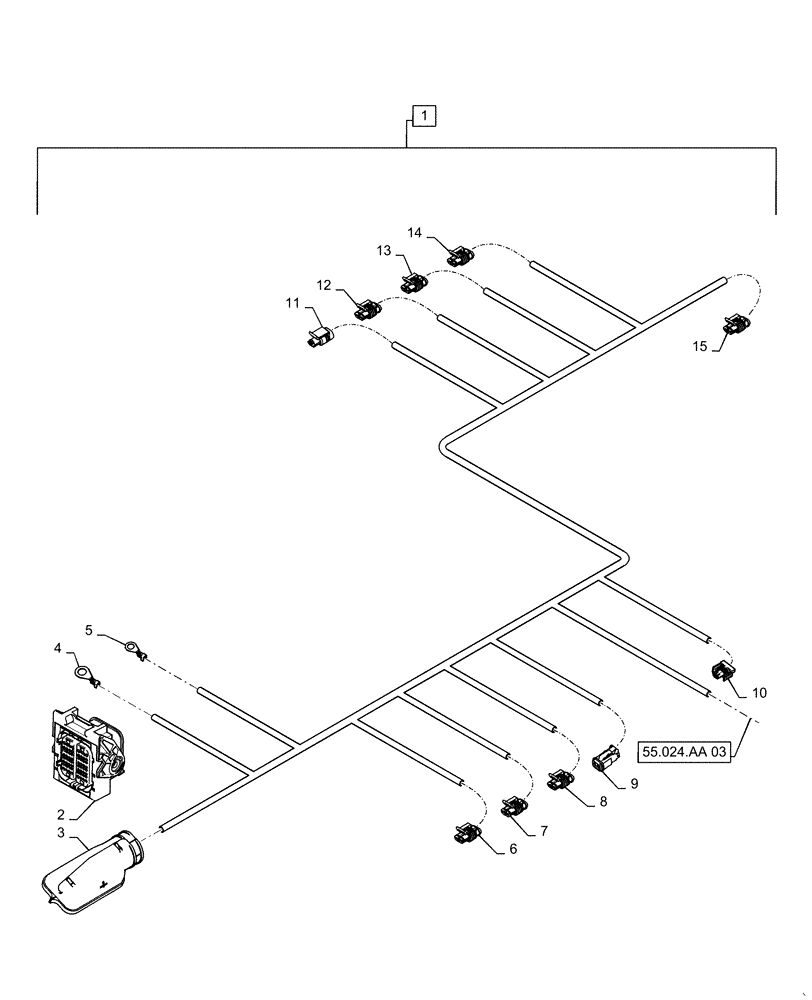

Схема запчастей Case IH MAGNUM 280 - (55.024.AA[02]) - VAR - 429330, 429331, 429332, 429333 - WIRE HARNESS, TRANSMISSION, POWERSHIFT (55) - ELECTRICAL SYSTEMS
1
9
6
5
15
11
3
10
2
13
8
7
4
14
55.024.aa 03
12

Артикул

Название

Примечание

Количество

1

47577034

WIRE HARNESS

Powershift Transmission, Incl 2 - 15

1шт.

2

84254835

ELEC CONNECTOR

X-026 To Outside Cab Harness

1шт.

2

87697866

TERMINAL,Female, Nickel, 0.50 - 1.00mm

Solid Socket Contact Size 20

49шт.

2

84807680

PLUG

Deutsch Sealing Plug Size 20

13шт.

3

84539347

SHELL

90 Degree Backshell

1шт.

4

84122130

TERMINAL

X-674 Transmission Ground (Cab Mount)

1шт.

5

NSS

NOT SOLD SEPARAT

RING TERMINAL X-088 Hydraulic Filter Restriction, Incl in 1

1шт.

6

82012083

WIRE CONNECTOR,Female

X-030 Even Sol

1шт.

6

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Mini Mic Rcpt Contact

2шт.

7

82012083

WIRE CONNECTOR,Female

X-029 Odd Clutch Sol

1шт.

7

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Mini Mic Rcpt Contact

2шт.

8

82012083

WIRE CONNECTOR,Female

X-039 Creep Sol

1шт.

8

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Mini Mic Rcpt Contact

2шт.

9

87695582

ELEC CONNECTOR,Female, 2 Pole

X-049 Park Brake Sol / Euro Park Brake Sol

1шт.

9

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Stamped Socket Contact Size 16

2шт.

9

84074638

LOCKING TAB,Locking Wedge, Green

Wedge Lock 2-way Plug

1шт.

10

87692812

ELEC CONNECTOR

X-035 Master Sol

1шт.

10

87690510

ELEC. TERMINAL PIN,Female, 0.75 - 1 mm2

Female Metri-Pack .150 Terminal

2шт.

10

NSS

NOT SOLD SEPARAT

SECONDARY LOCK Black, 2-way, Incl in 1

1шт.

11

87657131

MULTIPOLE CONNECTOR,Female, 3 Pole

X-044 System Pressure

1шт.

11

84151605

TERMINAL

Female GT 150 Terminal

3шт.

12

82012083

WIRE CONNECTOR,Female

X-031 1/2 Sol

1шт.

12

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Mini Mic Rcpt Contact

2шт.

13

82012083

WIRE CONNECTOR,Female

X-032 3/4-Forward Sol

1шт.

13

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Mini Mic Rcpt Contact

2шт.

14

82012083

WIRE CONNECTOR,Female

X-033 5/6-Reverse Sol

1шт.

14

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Mini Mic Rcpt Contact

2шт.

15

82012083

WIRE CONNECTOR,Female

X-034 Rev Sol

1шт.

15

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Mini Mic Rcpt Contact

2шт.

Выбрано товаров: 29
