Запчасти Case IH MAGNUM 280 (55.015.AB[04]) - WIRE HARNESS, FRONT FRAME - ASN ZGRF02860 (55) - ELECTRICAL SYSTEMS

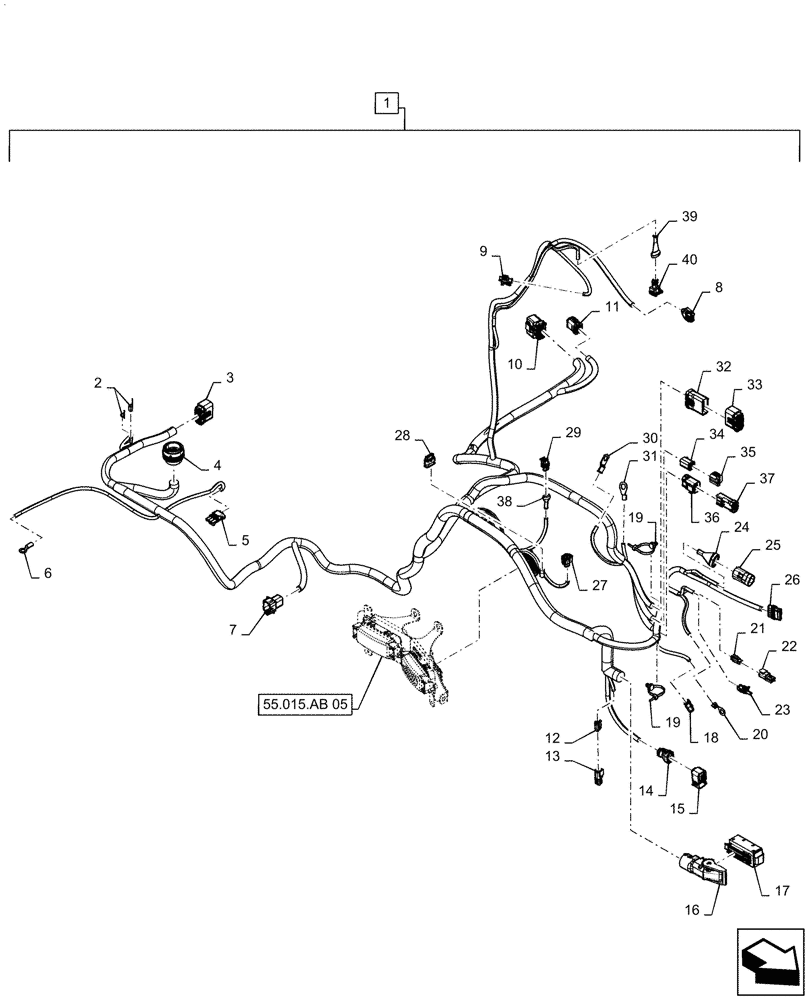

Схема запчастей Case IH MAGNUM 280 - (55.015.AB[04]) - WIRE HARNESS, FRONT FRAME - ASN ZGRF02860 (55) - ELECTRICAL SYSTEMS
15
35
20
1
38
25
31
33
14
22
17
8
9
19
4
10
11
3
37
27
24
36
26
6
40
7
12
32
28
23
19
18
13
30
2
21
29
34
39
16
55.015.ab 05
5

Артикул

Название

Примечание

Количество

1

47919600

WIRE HARNESS

Front Frame, Tier 4B; Incl 2 - 52

1шт.

2

47625551

TERMINAL,M8

M8 Ring; X-674 Transmission Ground; X-674A A/C Compressor Ground

2шт.

3

87382926

WIRE CONNECTOR,Female, 14 Cavities

X-061 To Outside Cab Harness

1шт.

3

84395356

TERMINAL,Female, 2.8mm, 18-20

11шт.

3

84279937

PLUG,Apex, 2.80mm

Cavity Plug

1шт.

4

84526555

MULTIPOLE CONNECTOR

X-060 To Cab Harness

1шт.

4

87695623

ELEC. TERMINAL PIN

22шт.

4

87697956

TERMINAL

1шт.

4

84068583

PLUG,12 - 16 Ga, White

Cavity Plug

8шт.

5

87644909

WIRE CONNECTOR,Female, 3 Pins

X-066 Fuel Sender

1шт.

5

87692856

CABLE TERMINAL

3шт.

6

47875839

TERMINAL

M5 Ring; X-005 Engine Main B+

1шт.

7

87700321

ELEC CONNECTOR,Female, 8 Cavities

X-003 To SCR Canister Harness

1шт.

7

87695623

ELEC. TERMINAL PIN

7шт.

7

84068583

PLUG,12 - 16 Ga, White

Cavity Seal

1шт.

7

84806919

PLUG,Wedge Lock

Wedge Lock, 8-Way

1шт.

8

87709798

ELEC CONNECTOR,Female, 2 Cavities

X-199 DEF Dosing Module

1шт.

8

84130602

TERMINAL CONNECTOR

2шт.

9

87709809

ELEC CONNECTOR

X-151 Temp / Humidity Sensor

1шт.

9

84130603

TERMINAL

4шт.

10

87382926

WIRE CONNECTOR,Female, 14 Cavities

X-1000 To LH Platform Harness

1шт.

10

84395356

TERMINAL,Female, 2.8mm, 18-20

8шт.

10

84395358

TERMINAL

4шт.

10

84279937

PLUG,Apex, 2.80mm

Cavity Plug

2шт.

11

84122167

ELEC CONNECTOR

X-236 To LH Platform Harness

1шт.

11

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

6шт.

11

84068583

PLUG,12 - 16 Ga, White

Cavity Plug

2шт.

11

84806312

LOCKING TAB,Wedge Lock

Wedge Lock, 8-Way

1шт.

12

87696093

ELEC CONNECTOR,Female, 2 Cavities

X-183 ECM Flashing (CAN B)

1шт.

12

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

2шт.

13

87696547

ELEC CONNECTOR,Female, 2 Cavities

Dust Cap

1шт.

13

84807680

PLUG

Sealing Plug

2шт.

13

87696145

LOCKING TAB

Wedge Lock, 2-Way

1шт.

14

84152563

ELEC CONNECTOR

X-156 Engine Interface Connector

1шт.

14

84152576

TERMINAL

2шт.

14

82035902

PLUG

Cavity Plug, Natural

1шт.

14

84129571

PLUG

Cavity Plug, White

2шт.

15

47529852

COVER

Cover, 180 Degree

1шт.

16

84596421

COVER

ECU Controller Plug

1шт.

17

84595906

ELEC CONNECTOR

X-180 ECU Controller

1шт.

17

84300195

TERMINAL

45шт.

17

84300193

LOCK

Secondary Lock, 96-Way

1шт.

18

87695582

ELEC CONNECTOR,Female, 2 Pole

X-086 To Alternator

1шт.

18

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

1шт.

18

84068583

PLUG,12 - 16 Ga, White

Cavity Plug

1шт.

18

84074638

LOCKING TAB,Locking Wedge, Green

Wedge Lock, 2-Way

1шт.

19

84292754

CLIP,Cable Tie W/ Fir Tree, 5mm OD x 203mm OAL

4шт.

20

84140737

TERMINAL CONNECTOR

M10 Ring; X-310 A/C Compressor Clutch Ground

1шт.

21

87696093

ELEC CONNECTOR,Female, 2 Cavities

X-152 CAN C

1шт.

21

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

2шт.

22

87696547

ELEC CONNECTOR,Female, 2 Cavities

Dust Cap

1шт.

22

84807680

PLUG

Sealing Plug

2шт.

22

87696145

LOCKING TAB

Wedge Lock, 2-Way

1шт.

23

87693744

WIRE CONNECTOR

X-073 A/C Compressor Clutch

1шт.

23

87692856

CABLE TERMINAL

1шт.

24

84428161

WIRE CONNECTOR

1шт.

25

87688788

MULTIPOLE CONNECTOR,Male, 2 Pole

X-071 A/C High Pressure Switch

1шт.

25

87688814

TERMINAL

2шт.

25

87688862

LOCKING TAB

Secondary Lock, Black, 2-Way

1шт.

26

87688719

ELEC CONNECTOR,Female, 5 Cavities

X-789 Fan Vistronic

1шт.

26

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

5шт.

27

87709793

WIRE CONNECTOR,Female, 2 Cavities

X-203 DOC Upstream Temperature Sensor

1шт.

27

84130603

TERMINAL

2шт.

28

84190317

WIRE CONNECTOR,Female, 5 Cavities

X-186 Upstream NOX ECU and Sensor

1шт.

28

84190318

TERMINAL CONNECTOR

3шт.

28

84190319

TERMINAL CONNECTOR

2шт.

29

82012083

WIRE CONNECTOR,Female

X-302 Grid Heater Relay Coil

1шт.

29

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

2шт.

30

47875839

TERMINAL

M5 Ring; X-083A Starter Motor Relay Coil

1шт.

31

NSS

NOT SOLD SEPARAT

TERMINAL, M12; X-570 Starter Motor; Incl in 1

1шт.

32

87382929

WIRE CONNECTOR,Male, 14 Cavities

X-2382 Front Hitch

1шт.

32

84395362

TERMINAL,Apex, 2.80mm, Male, 0.50 - 0.80mm2 Wire Range

8шт.

32

84395363

TERMINAL

3шт.

32

84294639

TERMINAL

1шт.

32

84279937

PLUG,Apex, 2.80mm

Cavity Plug

2шт.

33

87382928

WIRE CONNECTOR,Female, 14 Cavities

Dust Cap

1шт.

33

84279937

PLUG,Apex, 2.80mm

Cavity Plug

14шт.

34

87694112

ELEC CONNECTOR,Female, 6 Pole

X-437 To Steering Sensor Harness

1шт.

34

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

6шт.

35

84391167

CAP

Dust

1шт.

35

87694150

LOCKING TAB,Wedge Lock

Wedge Lock, 6-Way

1шт.

36

87382918

WIRE CONNECTOR,Female, 6 Cavities

X-1255 Suspended Axle

1шт.

36

84395356

TERMINAL,Female, 2.8mm, 18-20

5шт.

36

84279937

PLUG,Apex, 2.80mm

Cavity Plug

1шт.

37

87382919

WIRE CONNECTOR,Male, 6 Cavities

1шт.

37

84279937

PLUG,Apex, 2.80mm

Cavity Plug

6шт.

38

84137906

BOOT

1шт.

39

84123824

BOOT

1шт.

40

84607243

ELEC CONNECTOR,Female, 2 Cavities

X-179 Air Filter Restriction Switch

1шт.

40

87702681

TERMINAL

2шт.

Выбрано товаров: 90
