Запчасти Case IH MAGNUM 280 (55.011.AB[03]) - WIRE HARNESS, TANK, LEFT SIDE PLATFORM (55) - ELECTRICAL SYSTEMS

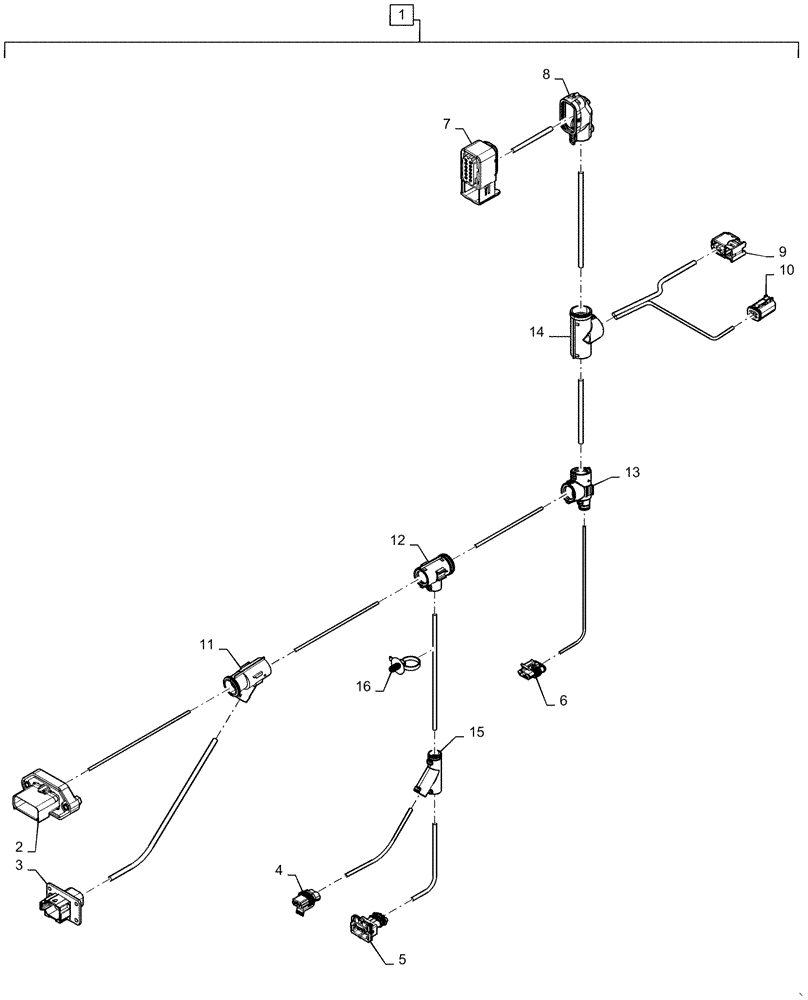

Схема запчастей Case IH MAGNUM 280 - (55.011.AB[03]) - WIRE HARNESS, TANK, LEFT SIDE PLATFORM (55) - ELECTRICAL SYSTEMS
5
6
11
3
9
13
12
10
4
15
16
2
7
14
1
8

Артикул

Название

Примечание

Количество

1

84571045

WIRE HARNESS

Tank, LH Platform LF, Incl 2 - 16, Serial Range: -ZFRF05380

1шт.

1

47851612

WIRE HARNESS

Tank, LH Platform LF, Incl 2 - 16, Start Serial: ZFRF05381

1шт.

2

84574704

ELEC CONNECTOR

X-1000 to Engine Harness

1шт.

3

87695891

ELEC CONNECTOR

X-236 to Engine Harness

1шт.

4

87679438

WIRE CONNECTOR,Female

X-785 Fuel Pump

1шт.

5

87709663

ELEC CONNECTOR,Female, 3 Cavities

X-307 WIF Sensor

1шт.

6

84062580

CONNECTOR, ELEC

X-194 DEF Tank Level Temp Sensor, Sendor Unit

1шт.

7

84152570

ELEC CONNECTOR,Female, 12 Cavities

X-190 DEF Supply Module

1шт.

8

84567010

COVER

X-190 Connector

1шт.

9

84146685

WIRE CONNECTOR,Female, 3 Cavities

X-202 DEF Tank Wapco Heater Valve

1шт.

10

87694101

ELEC CONNECTOR,Female, 4 Cavities

X-007 to Urea Quality Harness

1шт.

11

84378121

JUNCTION

Y Joint 17 - 10 - 17

1шт.

12

84352286

JUNCTION

T Joint 17 - 10 - 17

1шт.

13

87498755

TEE

T Joint 17 - 17 - 7.5

1шт.

14

87494018

TEE

T Joint 17 - 22 - 17

1шт.

15

87396118

JUNCTION BLOCK

Y Joint 10 - 10 - 10

1шт.

16

84292754

CLIP,Cable Tie W/ Fir Tree, 5mm OD x 203mm OAL

Wire Mount 203mm

2шт.

Выбрано товаров: 17
