Запчасти Case IH MAGNUM 280 (50.200.CB[01]) - AIR CONDITIONING, CLIMATE CONTROL WITH AUTO TEMPERATURE CONTROL - BSN ZFR*01420 (50) - CAB CLIMATE CONTROL

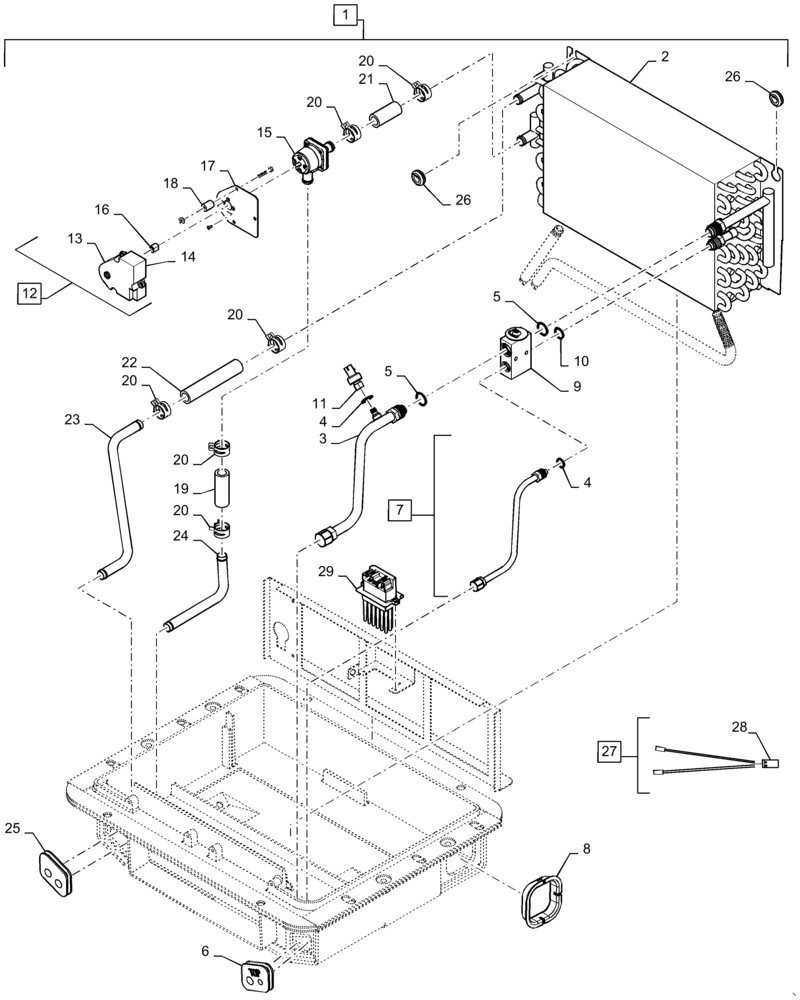

Схема запчастей Case IH MAGNUM 280 - (50.200.CB[01]) - AIR CONDITIONING, CLIMATE CONTROL WITH AUTO TEMPERATURE CONTROL - BSN ZFR*01420 (50) - CAB CLIMATE CONTROL
3
1
10
5
9
11
20
16
4
4
24
22
8
5
26
2
14
18
20
28
19
13
26
20
20
6
29
7
20
15
27
23
25
12
21
17
20

Артикул

Название

Примечание

Количество

1

84211195

AIR CONDITIONER

Assy, ATC HVAC; Incl 2 - 29

1шт.

2

86990262

CORE

Combo, Evap and Heater

1шт.

3

322839A1

TUBE,16mm OD, 211.5, 159.8mm Length

1шт.

4

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

2шт.

5

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

2шт.

6

322989A1

GROMMET

Bulkhead, A/C Tubes

1шт.

7

322840A1

TUBE,10mm OD, 158.4, 163.9mm L

Incl 4

1шт.

8

368313A1

PLASTIC PLUG

HVAC

1шт.

9

386535A1

VALVE

1шт.

10

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

1шт.

11

84419250

PRESSURE SWITCH

A/C Low

1шт.

12

427356A1

CONTROL VALVE

Heater: Incl 13 - 18

1шт.

12

47644646

KIT

Heater Control Valve Replacement, Service Only

1шт.

13

275602A1

ACTUATOR

Motor

1шт.

14

87377103

ELECTRIC MOTOR

Repair Kit for Actuator

1шт.

15

427352A1

VALVE

Heater

1шт.

16

427360A1

INSERT

Coupler, Heater Valve

1шт.

17

427353A1

PLATE

Heater Valve Mount

1шт.

18

427354A1

SPACER

CEI Actuator

3шт.

19

324023A1

HEATER HOSE,15.50 mm ID x 64.00 mm

Supply

1шт.

20

1954736C1

HOSE CLAMP,#24

6шт.

21

324022A1

HEATER HOSE,15.50 mm ID x 54.00 mm

Supply

1шт.

22

1321290C2

HEATER HOSE,15.50 mm ID x 127.00 mm

Washer

1шт.

23

322985A1

HEATER TUBE

Outlet

1шт.

24

322987A1

HEATER TUBE,0.625" OD, 138.2, 79.2 mm Length

Inlet

1шт.

25

322990A1

GROMMET

Bulkhead Heater Hoses

1шт.

26

248-1243

GROMMET,1/2" ID x 13/16" Groove Dia, Diag Cut

2шт.

27

84598774

WIRE HARNESS

Jumper; Incl 28

1шт.

28

87688783

ELEC CONNECTOR

2 Way, A/C Blower/Motor Harness

1шт.

29

87306706

TERMINAL CONNECTOR

Driver, Blower Linear

1шт.

Выбрано товаров: 30
