Запчасти Case IH MAGNUM 280 (41.432.AE[02]) - VALVE ASSY - AUTOGUIDANCE - HIGH FLOW (41) - STEERING

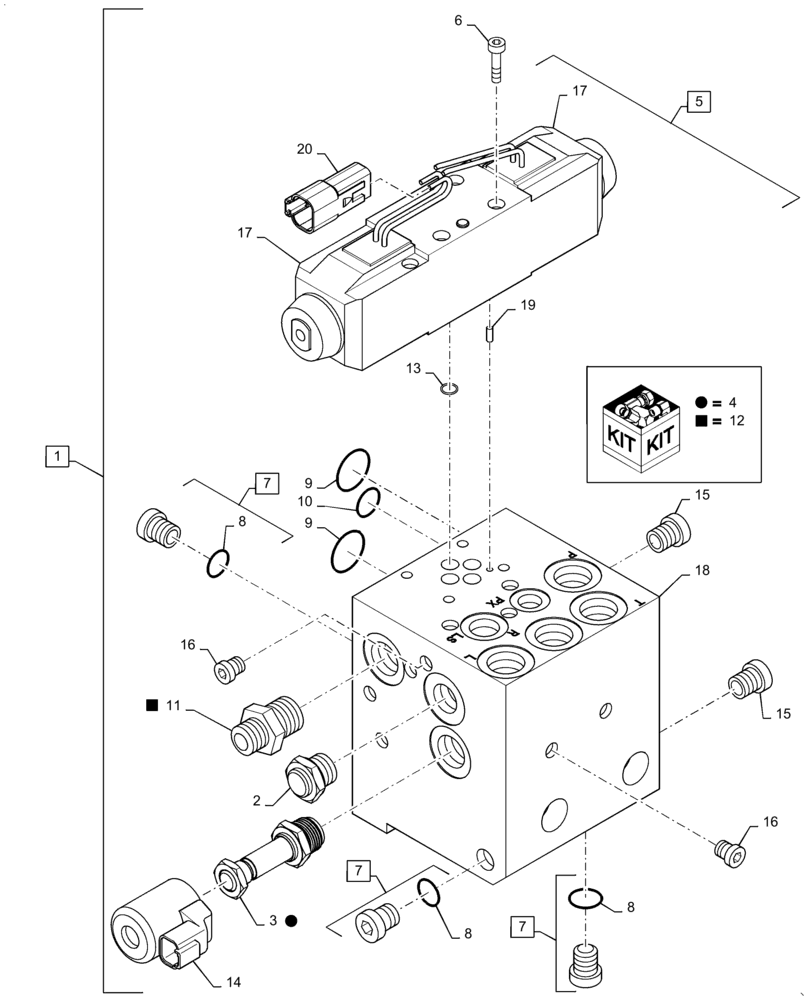

Схема запчастей Case IH MAGNUM 280 - (41.432.AE[02]) - VALVE ASSY - AUTOGUIDANCE - HIGH FLOW (41) - STEERING
9
20
15
7
2
15
16
12
14
19
17
3
12
4
9
18
5
6
11
4
10
12
7
8
4
1
16
8
13
17
8
7

Артикул

Название

Примечание

Количество

1

84392699

VALVE,Control Assembly, Autoguidance

Assembly, Autoguidance High Flow, Incl 2 - 19, Serial Range: -ZFR*02024

1шт.

1

47746341

CONTROL VALVE

Autoguidance High Flow, Incl 2 - 20, Start Serial: ZFR*02025

1шт.

2

87386344

VALVE

Shuttle

1шт.

3

84259237

SOLENOID VALVE

Incl 4

1шт.

4

304418A1

SEAL KIT

Signal Line Flow Reg. Seal

1шт.

5

84401636

VALVE

Directional Control, Incl 13, 17, 19, Serial Range: -ZFR*02024

1шт.

5

47746342

SOLENOID VALVE

Directional Control, Incl 13, 17, 19, 20, Start Serial: ZFR*02025

1шт.

6

281060

HEX SOC SCREW,HSH, #10 - 24 x 1-1/4"

4шт.

7

9625178

PLUG,9/16" - 18 ORB

Incl 8

3шт.

8

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.

9

14457580

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

4шт.

10

122014

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

11

84264316

HYDRAULIC VALVE

Shuttle, Incl 12

1шт.

12

84265394

SEAL KIT

1шт.

13

86629543

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

4шт.

14

84259238

COIL

Tough

1шт.

15

278548

PLUG,Hex, 7/16"-20 ORB

1шт.

16

NSS

NOT SOLD SEPARAT

PLUG, Incl in 1

17шт.

17

84392700

COIL

Directional Valve, Serial Range: -ZFR*02024

2шт.

17

47725854

COIL

Directional Valve, Incl Coil, Nut, and 2 O-Rings, Start Serial: ZFR*02025

2шт.

18

NSS

NOT SOLD SEPARAT

MANIFOLD, Incl in 1

1шт.

19

NSS

NOT SOLD SEPARAT

PIN, Incl in 5

1шт.

20

47766095

ELEC CONNECTOR

4 Pin, Incl Wedge Lock, Start Serial: ZFR*02025

1шт.

21

48148750

Not Illustrated, Start Serial: ZFR*02025

SERVICE KIT

1шт.

Выбрано товаров: 24
