Запчасти Case IH MAGNUM 280 (41.206.AG[01]) - POWERSHIFT - EMERGENCY STEERING HYDRAULICS - HD (41) - STEERING

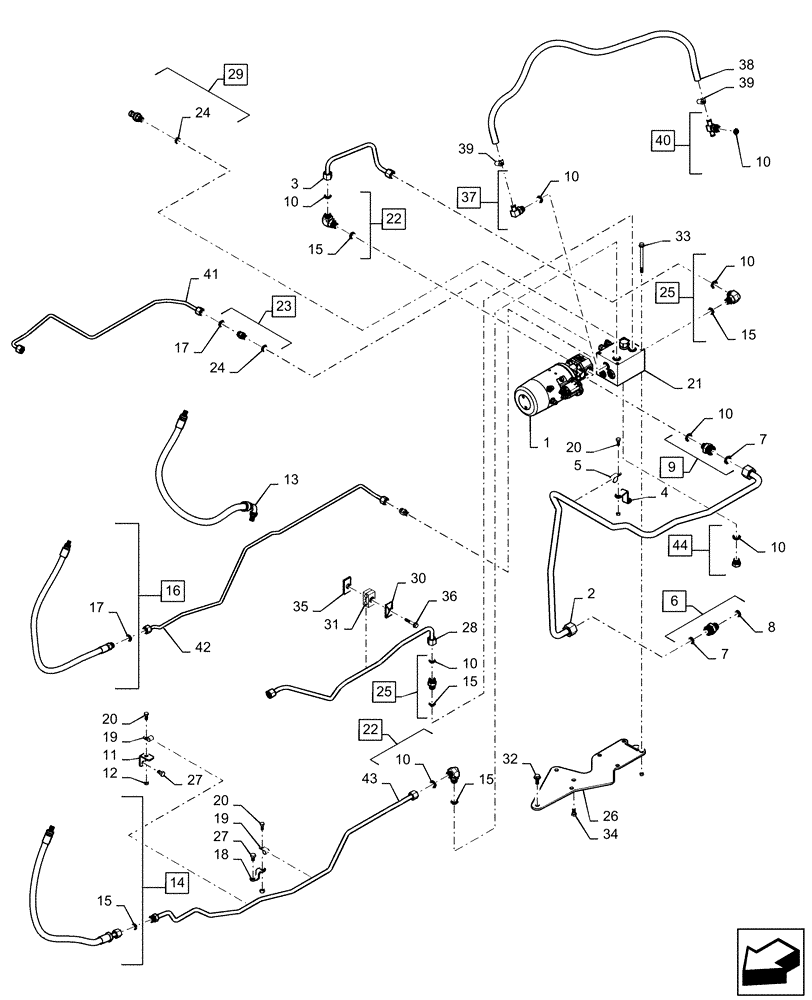

Схема запчастей Case IH MAGNUM 280 - (41.206.AG[01]) - POWERSHIFT - EMERGENCY STEERING HYDRAULICS - HD (41) - STEERING
23
38
5
10
20
10
17
31
42
13
20
10
2
10
25
25
24
40
28
27
15
20
30
4
36
18
29
32
37
22
6
24
12
26
15
33
14
35
10
8
10
21
41
1
11
44
17
7
16
3
15
19
27
34
9
39
43
39
7
19
15
15
22
10
10

Артикул

Название

Примечание

Количество

1

47434204

PUMP,12V

Emergency Steering, Electric

1шт.

2

47409969

TUBE

Emergency Steering, PST

1шт.

3

47409970

TUBE

Emergency Steering Pump Supply, PST

1шт.

4

47410358

BRACKET

Steering Supply Tube Clamp, Rear

1шт.

5

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

1шт.

6

700-107

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M22 x 1.5 Male ORB

Incl 7 - 8

1шт.

7

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

8

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

9

87530371

FITTING

Incl 7, 10

1шт.

10

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

8шт.

11

86988838

BRACKET

Steering Supply Tube Clamp, Front

1шт.

12

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

13

84352407

HYDRAULIC HOSE

Steering Return, PST

1шт.

14

84127337

HOSE,12.7mm ID x 750mm L

Steering Supply, PST; Incl 15

1шт.

15

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

5шт.

16

84127336

HOSE,9.53mm ID x 825mm L

Steering Signal, PST; Incl 17

1шт.

17

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

18

86988840

BRACKET

Steering Supply Tube Clamp, Rear

1шт.

19

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

2шт.

20

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

3шт.

21

84425118

CONTROL VALVE

Emergency Steering System

1шт.

22

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 10, 15

3шт.

23

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 17, 24

2шт.

24

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

4шт.

25

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 10, 15

1шт.

26

84488871

BRACKET

Emergency Steering Valve Motor Mount

1шт.

27

614-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

2шт.

28

84488880

TUBE

Emergency Steering Valve Supply

1шт.

29

375644A1

SENSOR

Steering Pressure Incl 24

2шт.

30

384871A1

PLATE

Hose Clamp

1шт.

31

87705202

CLAMP,12.7mm OD Tube x 12.7mm OD Tube

2 Hole 12.7-12.7 mm Diameter

1шт.

32

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

3шт.

33

84193283

BOLT,Hex, M8 x 110mm, Cl 10.9

Flange, Hvy, M8 x 110 10.9

4шт.

34

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

2шт.

35

384870A1

PLATE

Hose Clamp Cover

1шт.

36

844-8045

BOLT,Hvy Hex, M8 x 45mm, Cl 8.8

1шт.

37

87312846

ELBOW

M18, 90 Degree Hose Barb; Incl 10

1шт.

38

87577426

HYDRAULIC HOSE,12.70 mm ID x 1080.00 mm, SAE 100R6

1шт.

39

214-1408

HOSE CLAMP,11.2mm - 19.8mm

2шт.

40

84518980

TEE

M18 ORB x 1/2" Hose Barb; Incl 10

1шт.

41

47429071

TUBE

Emergency Steering Valve Load Sense

1шт.

42

47429072

TUBE

Emergency Steering Valve Load Sense

1шт.

43

47416089

TUBE

Emergency Steering Valve Supply to Hand Pump

1шт.

44

220066A1

PLUG,M18 x 1.5, ORB

Incl 10

1шт.

Выбрано товаров: 44
