Запчасти Case IH MAGNUM 280 (41.200.AT[05]) - STEERING SYSTEM, CL 5 NON-SUSPENDED WIDE AXLE, POWERSHIFT, MAGNUM 280, 310, 340, 3154 (41) - STEERING

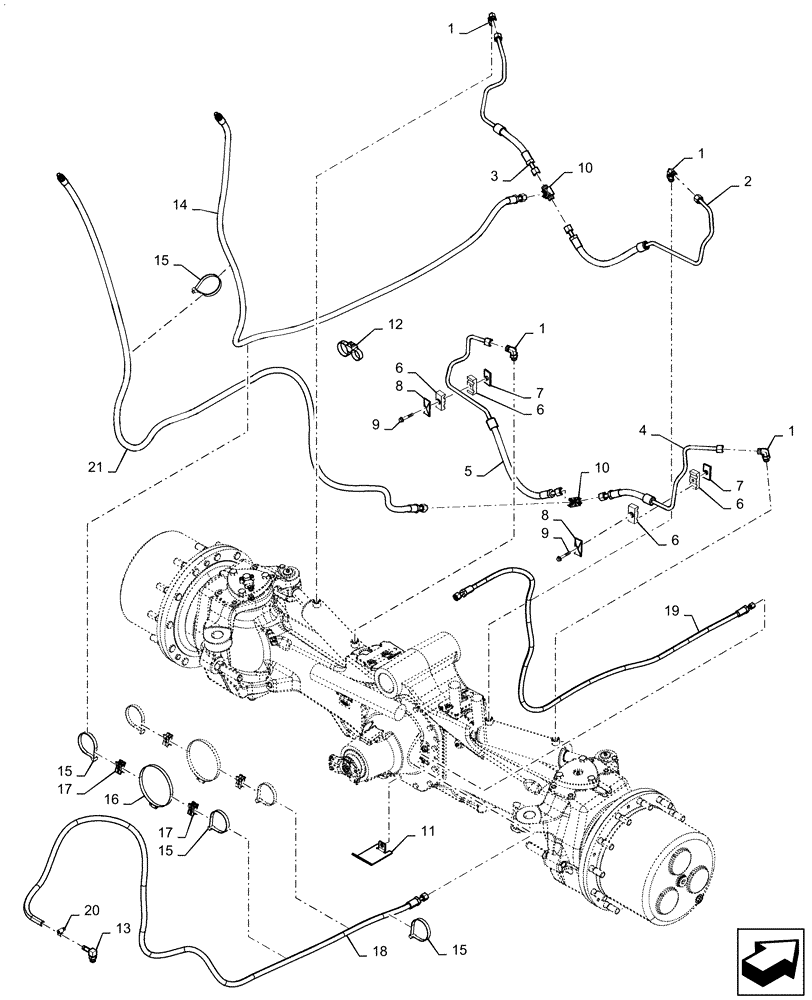

Схема запчастей Case IH MAGNUM 280 - (41.200.AT[05]) - STEERING SYSTEM, CL 5 NON-SUSPENDED WIDE AXLE, POWERSHIFT, MAGNUM 280, 310, 340, 3154 (41) - STEERING
20
6
14
10
19
15
9
13
1
1
18
11
16
2
21
17
1
3
5
6
8
4
7
17
6
9
15
1
6
8
12
15
10
7
15

Артикул

Название

Примечание

Количество

1

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

4шт.

2

47618140

TUBE

RH Cylinder Base Steering

1шт.

3

47618146

HYD TUBE

LH Cylinder Rod Steering

1шт.

4

47618141

TUBE

RH Cylinder Rod Steering

1шт.

5

47618145

HYD TUBE

LH Cylinder Base Steering

1шт.

6

87000149

CLAMP

2 Hole 12.7 mm

2шт.

7

384871A1

PLATE

Hose Clamp Weld

2шт.

8

1347127C1

PLATE

Tube Clamp

2шт.

9

844-8050

BOLT,M8 x 1.25 x 50mm, Cl 8.8

2шт.

10

701-409

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

2шт.

11

47468806

SHIELD

CL5 HYD Steering

1шт.

12

86991000

CLAMP

Dual Tie

1шт.

13

87454069

ELBOW,90 Degree Hose Barb, 1/2" ID x M18 x 1.5 Male ORB

1шт.

14

47727139

HYDRAULIC HOSE

Steering LH/RH STC

1шт.

15

86991007

CABLE TIE,509mm L

20 X .28 IN

6шт.

16

214-14104

HOSE CLAMP,155.45mm - 177.8mm

2шт.

17

86991001

SPACER

Dual Swivel Saddle

4шт.

18

47576523

HYDRAULIC HOSE

Front Diff Lock Return

1шт.

19

84402974

HOSE,9.53mm ID x 2182mm L

Diff Lock Supply

1шт.

20

214-1408

HOSE CLAMP,11.2mm - 19.8mm

1шт.

21

84362824

HOSE,12.5mm ID x 2861mm L, SAE 100R17

Steering RH STC

1шт.

Выбрано товаров: 21
