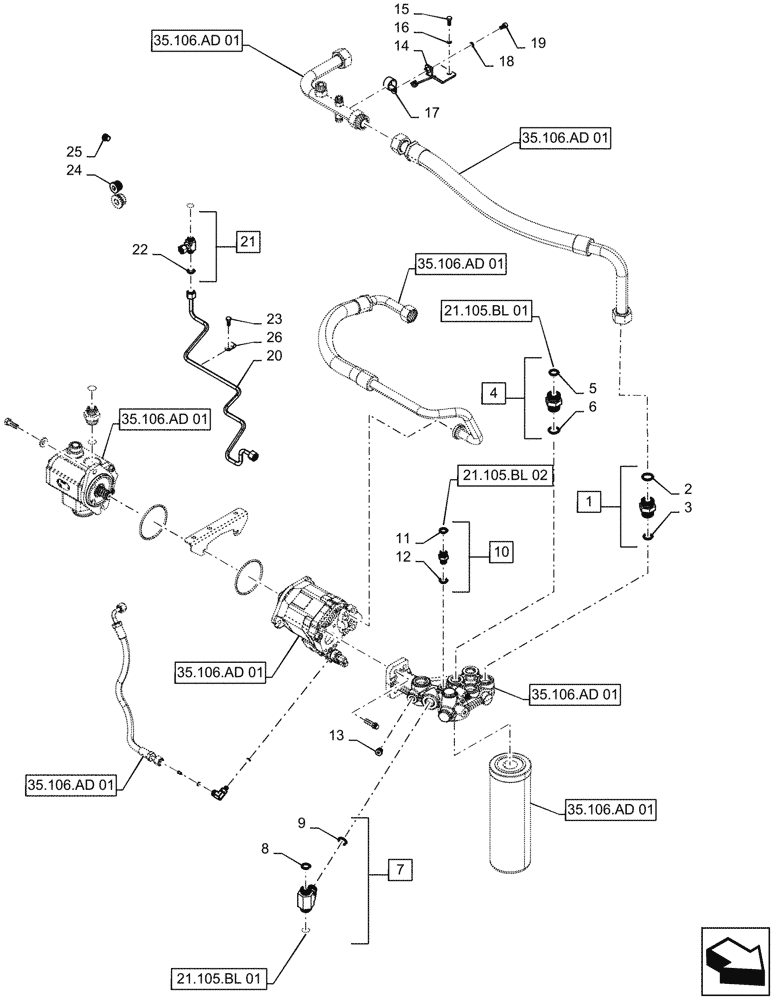

Запчасти Case IH MAGNUM 280 (35.106.AD[02]) - VAR- 420301, 420302 - POWERSHIFT - HYDRAULIC SYSTEM, PISTON PUMP & FILTER, STANDARD & HIGH CAPACITY (35) - HYDRAULIC SYSTEMS

1

700-134

HYD CONNECTOR,1-11/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 2, 3

1шт.

2

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

3

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

4

86597760

HYD CONNECTOR,1"-14 ORFS x M2 x 2.0 ORB

Incl 5, 6

1шт.

5

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

6

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

7

86579712

TEE,M27 x 2 x 55.5mm

Incl 8, 9

1шт.

8

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

9

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

10

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 11, 12

1шт.

11

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

12

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

13

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

1шт.

14

84356692

BRACKET

Tube Clamp

1шт.

15

864-10020

HEX SOC SCREW,M10 x 20mm, Cl 8.8

1шт.

16

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

17

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

1шт.

18

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

19

864-8020

HEX SOC SCREW,M8 x 20mm, Cl 8.8

1шт.

20

84414935

HYD TUBE

Auxillary Manifold Load Sense

1шт.

21

701-434

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl 22

1шт.

22

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

23

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

24

221580A1

PLUG,M27 x 2 ORB

1шт.

25

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

1шт.

26

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

1шт.
