Запчасти Case IH MAGNUM 280 (35.106.AD[01]) - VAR- 420301, 420302 - POWERSHIFT - HYDRAULIC SYSTEM, PISTON PUMP & FILTER, STANDARD & HIGH CAPACITY - BSN ZERF09032 (35) - HYDRAULIC SYSTEMS

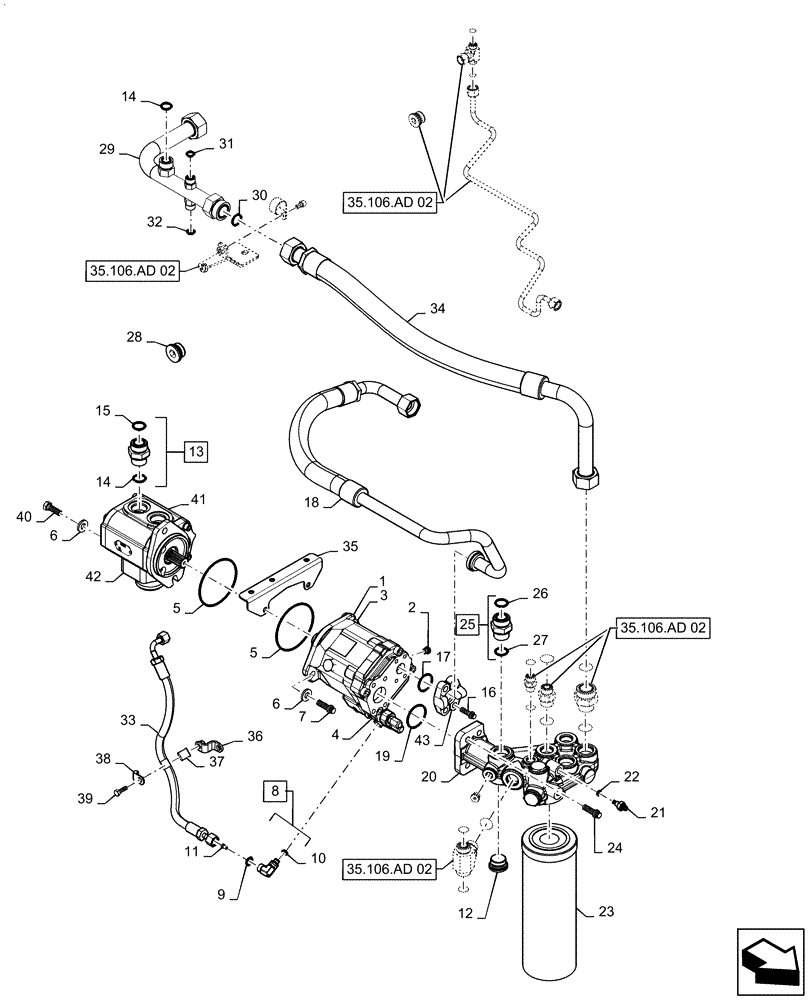

Схема запчастей Case IH MAGNUM 280 - (35.106.AD[01]) - VAR- 420301, 420302 - POWERSHIFT - HYDRAULIC SYSTEM, PISTON PUMP & FILTER, STANDARD & HIGH CAPACITY - BSN ZERF09032 (35) - HYDRAULIC SYSTEMS
41
22
35.106.ad 02
23
24
35.106.ad 02
39
4
30
27
17
6
15
32
16
31
34
6
7
9
38
14
12
14
10
2
20
8
28
5
3
13
36
1
29
11
35
18
35.106.ad 02
40
33
19
26
37
21
35.106.ad 02
5
25
42
43

Артикул

Название

Примечание

Количество

1

87538174

PUMP,156 LPM (41.3 GPM)

63cc, Standard Flow

1шт.

1

87538174R

REMAN-HYD PUMP

63cc, Standard Flow

1шт.

1

87538174C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

87538168

PUMP,211 LPM (55.6 GPM)

85cc, High Flow

1шт.

1

87538168R

REMAN-HYD PUMP

85cc, High Flow

1шт.

1

87538168C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

218-5157

PLUG,Hex Hd, 7/8"-14 ORB

1шт.

3

87489367

SERVICE KIT

Compensator

1шт.

4

87553152

GASKET

Control Valve

1шт.

5

238-5345

O-RING,0.21" Thk x 3.975" ID, -345, Cl 5, 75 Duro

2шт.

6

896-16012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

7

868-12035

12 PT SCREW,M12 x 35mm, Cl 12.9

2шт.

8

451226A1

90 ELBOW

Incl 9, 10

1шт.

9

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

10

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

11

133519C1

SCREEN

1шт.

12

221527A1

PLUG,Hex Soc, M33 x 2, ORB

1шт.

13

700-164

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 14, 15

1шт.

14

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

15

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

16

868-10030

12 PT SCREW,M10 x 30mm, Cl 12.9

4шт.

17

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1шт.

18

87438800

HOSE

PFC Pump Outlet, Standard Flow

1шт.

18

87438801

HOSE

PFC Pump Outlet, High Flow

1шт.

19

238-5225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

Standard Flow

1шт.

19

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

High Flow

1шт.

20

47608783

FILTER HEAD

Standard Flow

1шт.

20

47608784

FILTER HEAD

High Flow

1шт.

21

1957801C1

PRESSURE SWITCH

N/O, Incl 22

1шт.

22

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

23

84487937

HYDRAULIC OIL FILTER,Spin On, 14.48" OAL

Charge/Lube

1шт.

24

868-12035

12 PT SCREW,M12 x 35mm, Cl 12.9

1шт.

25

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 26, 27

3шт.

26

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

27

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

28

221527A1

PLUG,Hex Soc, M33 x 2, ORB

Standard Flow

1шт.

29

84274474

HYD TUBE

Auxillary Manifold Return

1шт.

30

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

31

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

32

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

33

47413295

HOSE,9.53mm ID x 615mm L, SAE 100R17

Pump Load Sense

1шт.

34

87385538

HOSE

Auxillary Manifold Return

1шт.

35

451054A1

BRACKET

A Tube Clamp

1шт.

36

86988840

BRACKET

Rear Supply Tube Clamp

1шт.

37

515-23175

CLAMP,11/16", Insul, 3/8" Bolt

1шт.

38

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

1шт.

39

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

40

615-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

2шт.

41

87407008

SERVICE KIT

Charge Pump

1шт.

42

84347565

PUMP,37.4 CC

Charge Lube

1шт.

43

86980728

COLLAR CLAMP

1шт.

Выбрано товаров: 51
