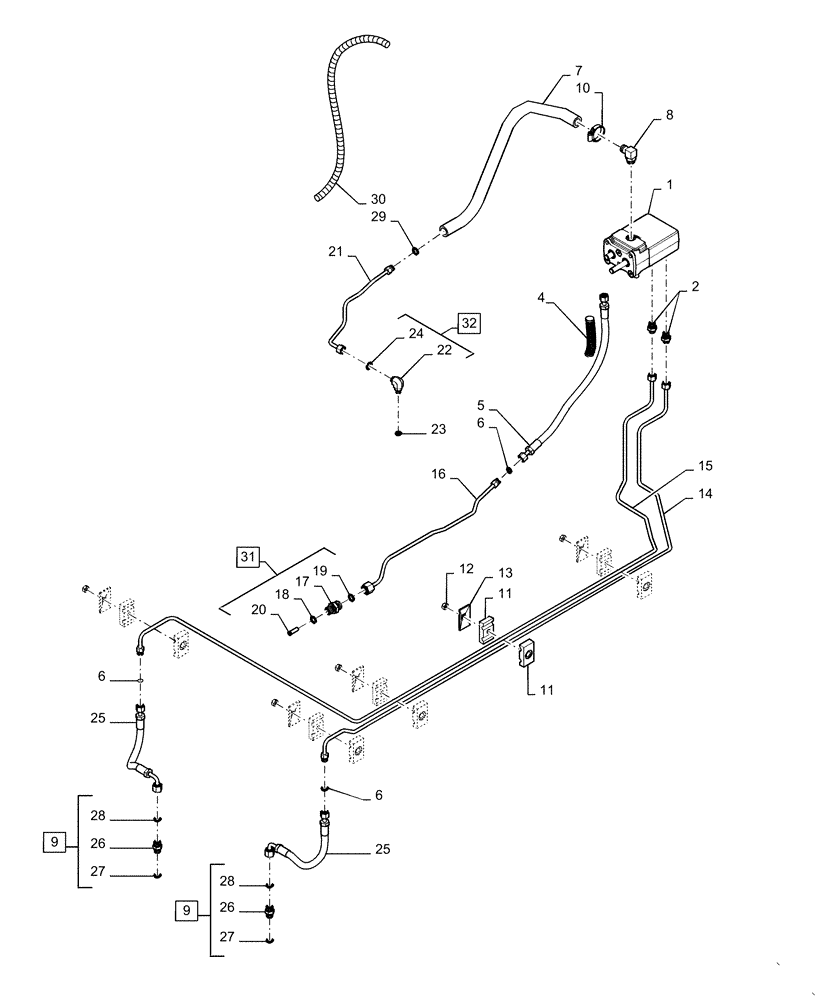

Запчасти Case IH MAGNUM 280 (33.220.AC[01]) - BRAKES, HYDRAULIC SYSTEM, WITHOUT TRAILER BRAKES, POWERSHIFT (33) - BRAKES & CONTROLS

1

87731065

BRAKE VALVE

Brake, Serial Range: -ZFR*05000

1шт.

1

84512003

BRAKE VALVE

, Start Serial: ZFR*05001

1шт.

2

700-106

HYD CONNECTOR,11/16" - 16 Male ORFS x M18 x 1.5 Male ORB

2шт.

4

363250A2

TUBE

4080mm Cut to Length

1шт.

5

87731873

HOSE,9.53mm ID x 704mm L

Supply

1шт.

6

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

7

87577426

HYDRAULIC HOSE,12.70 mm ID x 1080.00 mm, SAE 100R6

Brake Valve Drain

1шт.

8

87454069

ELBOW,90 Degree Hose Barb, 1/2" ID x M18 x 1.5 Male ORB

1шт.

9

87331123

FITTING

Incl 26 - 28

1шт.

10

214-1408

HOSE CLAMP,11.2mm - 19.8mm

1шт.

11

1546024C1

CLAMP

Tube

3шт.

12

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

13

384870A1

PLATE

Hose Clamp Cover

3шт.

14

84151503

RIGID TUBE

Right Hand Brake

1шт.

15

84150573

RIGID TUBE

Left Hand Brake

1шт.

16

433588A1

TUBE

Supply

1шт.

17

NSS

NOT SOLD SEPARAT

Connector; Incl in 31

1шт.

18

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

19

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

20

326965A1

FILTER STRAINER,10.46mm OD x 33.7mm L, 140 Micron

1шт.

21

87440347

TUBE,0.5" OD

Return

1шт.

22

NSS

NOT SOLD SEPARAT

Elbow; Incl in 32

1шт.

23

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

24

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

25

87582257

HOSE,9.5mm ID x 400mm L

Brake Pressure, Right Hand and Left Hand, 45 Degree End

2шт.

26

NSS

NOT SOLD SEPARAT

Connector; Incl in 9

1шт.

27

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

28

70923841

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

29

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

30

384834A1

CONDUIT

1500mm Cut to Length

1шт.

31

316443A2

FITTING

Strainer Assy; Incl 17 - 20

1шт.

32

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

Incl 22 - 24

1шт.
