Запчасти Case IH MAGNUM 280 (27.106.AC[04]) - VAR - 429330, 429331, 429332, 429333 - POWERSHIFT - TRANSMISSION, DIFFERENTIAL PINION SHAFT & GEARS - 310, 340, 3154 (27) - REAR AXLE SYSTEM

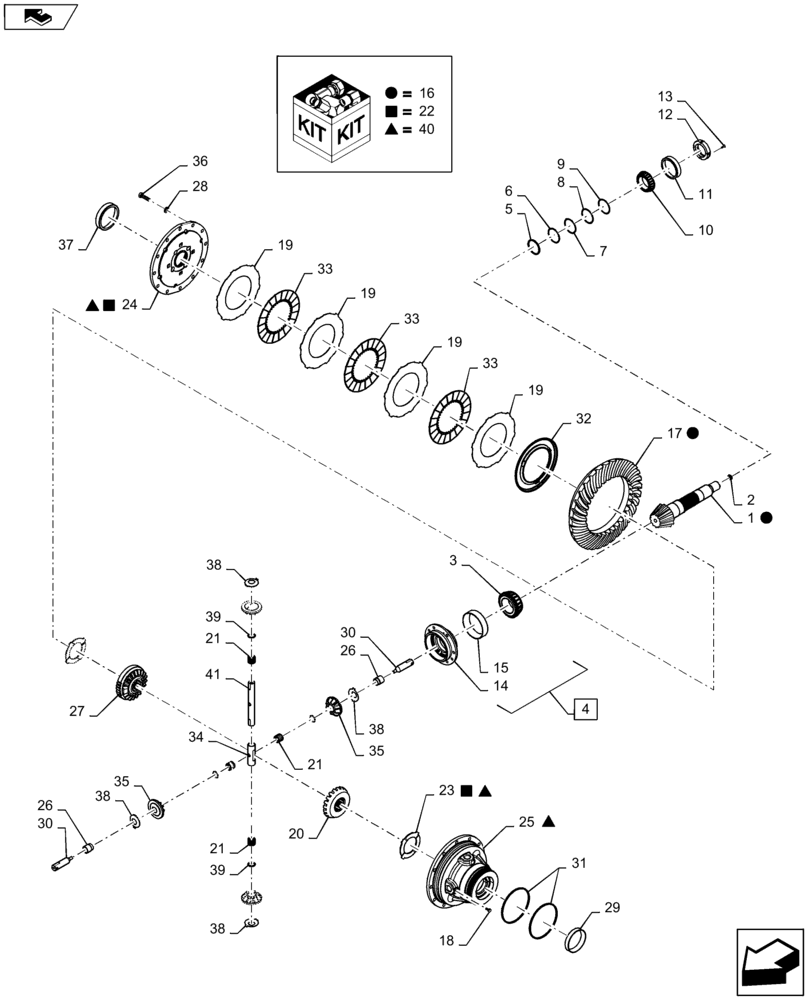

Схема запчастей Case IH MAGNUM 280 - (27.106.AC[04]) - VAR - 429330, 429331, 429332, 429333 - POWERSHIFT - TRANSMISSION, DIFFERENTIAL PINION SHAFT & GEARS - 310, 340, 3154 (27) - REAR AXLE SYSTEM
4
21
24
34
10
38
23
17
19
2
38
19
19
1
16
33
3
41
22
5
33
21
26
7
29
21
39
35
31
40
26
9
18
30
11
30
14
16
37
6
27
13
22
12
8
20
16
16
40
40
22
15
25
28
39
32
36
40
38
19
38
33
35
40
22

Артикул

Название

Примечание

Количество

1

47531217

SHAFT

Main Bevel Pinion 11/54T HD

1шт.

2

92825C1

CAP WASHER

Creeper Countershaft

1шт.

3

87444653

BEARING ASSY,35.72mm ID x 25.4mm W

1шт.

4

87326161

CAGE

Bevel Pinion Bearing, Incl 14,15

1шт.

5

87629963

SEAL,76mm ID x 85mm OD x 3.5mm Thk

Bearing

1шт.

6

87444780

SHIM,76mm ID x 85mm OD x 0.25mm Thk

1шт.

7

87444781

SHIM,0.305mm Thk

1шт.

8

87444782

SHIM,76mm ID x 85mm OD x 0.38mm Thk

1шт.

9

87444783

SHIM,76mm ID x 85mm OD x 0.46mm Thk

1шт.

9

47909823

SHIM

76mm ID x 85mm OD x 0.178mm Thk

1шт.

10

A67328

ROLLER BEARING,74.98mm ID x 29.5mm W

1шт.

11

A67327

BEARING CUP,120 mm OD x 25 mm

1шт.

12

87357631

LOCK NUT,M75 x 2

1шт.

13

87309531

HEX SOC SCREW,FLAT, M5 x 0.8 x 12mm, Cl 10.9

2шт.

14

87443336

CAGE

Pinion Bearing

1шт.

15

87444654

BEARING CUP,150mm OD x 49mm W

1шт.

16

47556761

SERVICE KIT

SPL Bevel Gearset 11/54, Incl 1, 17

1шт.

17

87341260

GEAR

Bevel 54T, Rear Drive HD

1шт.

18

1997421C1

BOLT

Diff Cross Pin

2шт.

19

87745601

CLUTCH PLATE,193mm ID x 315.4mm OD x 2.74mm Thk

Diff Lock Separator

4шт.

20

1259633C3

GEAR

Diff Bevel 20T

1шт.

21

1270697C1

NEEDLE BEARING

112шт.

22

87641690

KIT

Differential Cover, Incl 23, 24

1шт.

23

84321280

SHIM,95mm ID x 158mm OD x 4.91mm Thk

2шт.

24

84327399

COVER

Differential

1шт.

25

84327397

CASE

HD Differential

1шт.

26

1289350C1

SPACER

Short, Pinion Needle

2шт.

27

1259634C3

PINION

Diff Lock Bevel 20T

1шт.

28

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

12шт.

29

622337C1

BEARING CUP,129.99mm OD x 23.90mm Thk

1шт.

30

92906C1

SHORT SHAFT

Diff Pinion

2шт.

31

148939C1

SEALING RING,OD 200.60 mm

Diff Lock

2шт.

32

1997422C1

PISTON

Brake and Diff Lock

1шт.

33

84225275

PLATE

Diff Lock Friction

3шт.

34

1289349C1

SPACER

Long Pinion Needle

1шт.

35

92905C1

PINION

Diff Pinion 10T

4шт.

36

48137515

LOCK BOLT,Hex, M16 x 55mm, Cl 10.9, Full Thd

12шт.

37

67251C1

BEARING CUP,144.98mm OD x 26.90mm Thk

1шт.

38

92718C2

THRUST WASHER,32.7mm ID x 70mm OD x 1.6mm Thk

Diff Pinion

4шт.

39

1289348C1

RING

Needle Bearing Thrust

4шт.

40

87641688

KIT

HD Differential Case, Incl 23, 24, 25

1шт.

41

92907C1

SHAFT

Diff Pinion Long

1шт.

Выбрано товаров: 42
