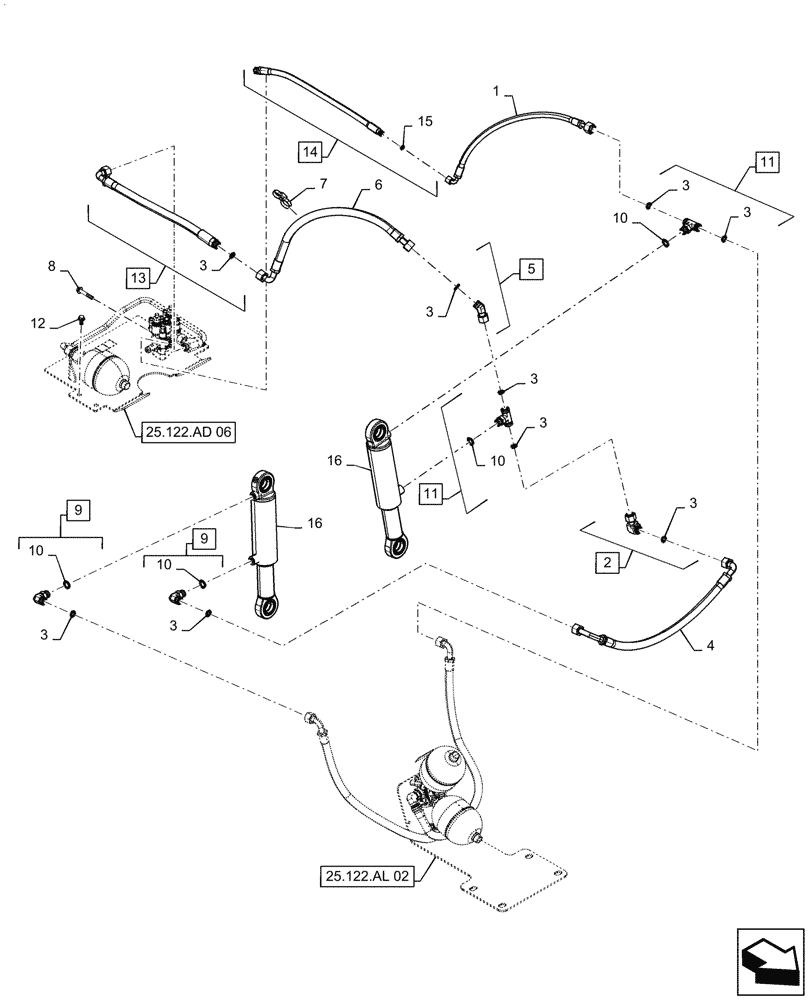

Запчасти Case IH MAGNUM 280 (25.122.AD[02]) - FRONT AXLE SUSPENSION HYDR LINES - CL 4.75 OR CL 5 WITH CVT (25) - FRONT AXLE SYSTEM

1

47726726

HYDRAULIC HOSE

Suspended Axle Valve, A Port

1шт.

2

84989412

ELBOW,90 Degree, 1-3/16-12 ORFS x 1-3/16"-12 Fem Sw

Incl 3

1шт.

3

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

9шт.

4

47724255

HYDRAULIC HOSE

Suspended Axle Valve, B Port

1шт.

5

84214051

45 ELBOW,1-3/16"-12 ORFS x 14mm

Incl 3

1шт.

6

47724247

HYDRAULIC HOSE

Suspended Axle Valve, B Port

1шт.

7

86991000

CLAMP

1шт.

8

844-12070

BOLT,Hvy Hex, M12 x 70mm, Cl 8.8

2шт.

9

86579697

ELBOW,90 Degree, 1-3/16"-12 ORFS x M27 x 2.0 ORB

Incl 3, 10

2шт.

10

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

4шт.

11

86579712

TEE,M27 x 2 x 55.5mm

Incl 3, 10

2шт.

12

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

3шт.

13

47751619

HYDRAULIC HOSE

Suspended Axle Valve, B Port, Incl 3

1шт.

14

47751616

HYDRAULIC HOSE

Suspended Axle Valve, A Port, Incl 15

1шт.

15

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

16

47632134

HYDRAULIC CYLINDER

MFD Axle Suspension

2шт.
