(25.122.AB[02]) - VAR- 429199. 429380 - CYLINDER ASSY, SADDLE SUSPENSION - CL 5

Запчасти Case IH MAGNUM 280 (25.122.AB[02]) - VAR- 429199. 429380 - CYLINDER ASSY, SADDLE SUSPENSION - CL 5 (25) - FRONT AXLE SYSTEM

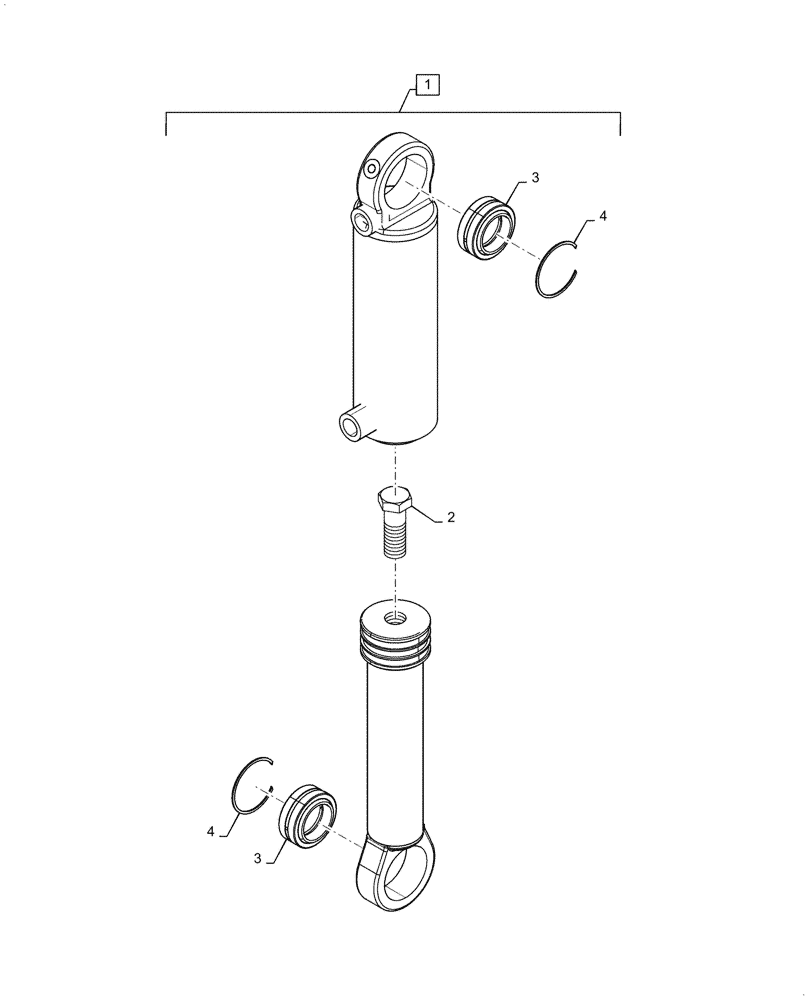

Схема запчастей Case IH MAGNUM 280 - (25.122.AB[02]) - VAR- 429199. 429380 - CYLINDER ASSY, SADDLE SUSPENSION - CL 5 (25) - FRONT AXLE SYSTEM
3
4
2
1
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47632134

HYDRAULIC CYLINDER

Suspension, Class 5 MFD Axle, Incl 2 - 4

1шт.

2

47696567

Piston to Rod

BOLT

1шт.

3

47930661

BALL JOINT

Spherical Bearing, 45mm ID

2шт.

4

84375340

RING

Bearing Retaining

2шт.

Выбрано товаров: 4
