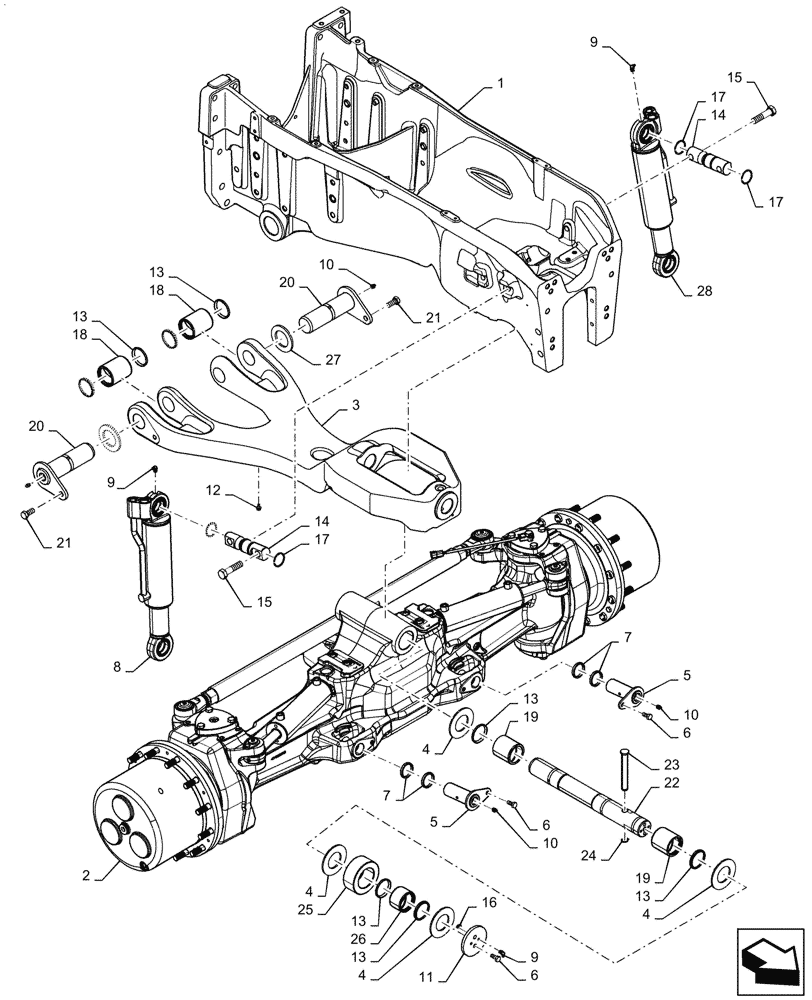

Запчасти Case IH MAGNUM 280 (25.100.BB[03]) - VAR- 429380 - FRONT AXLE SUSPENSION, CLASS 5 WIDE MFD AXLE - BSN ZFRF05001 (25) - FRONT AXLE SYSTEM

1

47531952

FRAME

Front Main Saddle Suspension

1шт.

2

47453000

4WD AXLE ASSY

Assy, Front Saddle Suspension CL 5 Wide

1шт.

3

47763671

SUSPENSION

Saddle Suspension

1шт.

4

86990303

THRUST WASHER,60.8mm ID x 112mm OD x 4.65mm Thk

MFD Pivot Pin

4шт.

5

87696365

PIN,45mm OD x 118mm L

Suspension Cylinder

2шт.

6

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

4шт.

7

87696368

SPACER

Suspension Cylinder Rod Pin

4шт.

8

87696280

CYLINDER

Suspension, RH

1шт.

9

13408411

LUBE NIPPLE,90 Degree , M10 x1

4шт.

10

933781R1

LUBE NIPPLE,M10 x 1

4шт.

11

87484805

RETAINER

1шт.

12

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

1шт.

13

87400202

SEAL

8шт.

14

87695275

PIN

Upper Cylinder Mount

2шт.

15

827-20080

BOLT,Hex, M20 x 2.5 x 80mm, Cl 10.9

4шт.

16

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

2шт.

17

101-11177

SNAP RING,#177, 1.657", Ext

4шт.

18

87696363

BUSHING

Suspended Axle

2шт.

19

87433501

BUSHING,60.46mm ID x 74.97mm OD x 75.78mm L

MFD Axle Pivot Pin

2шт.

20

87681720

PIN,60.26mm OD x 222mm L

Saddle Suspension

2шт.

21

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

22

84154325

PIN,60.26mm OD x 528.5mm L

MFD Axle Pivot

1шт.

23

87694639

HEADED PIN

MFD Axle Pivot Pin Retainer

1шт.

24

800-4520

SNAP RING,M20, Ext

1шт.

25

87696369

ROLLER

1шт.

26

87696370

BUSHING

1шт.

27

87696364

THRUST WASHER

Saddle Pivot

2шт.

28

87696281

CYLINDER,Double Acting, 63mm Rod, 219mm Stroke

Suspension, LH

1шт.
