Запчасти Case IH MAGNUM 280 (25.100.AB[02]) - FRONT AXLE MOUNTING PARTS, SUSPENDED AXLE (25) - FRONT AXLE SYSTEM

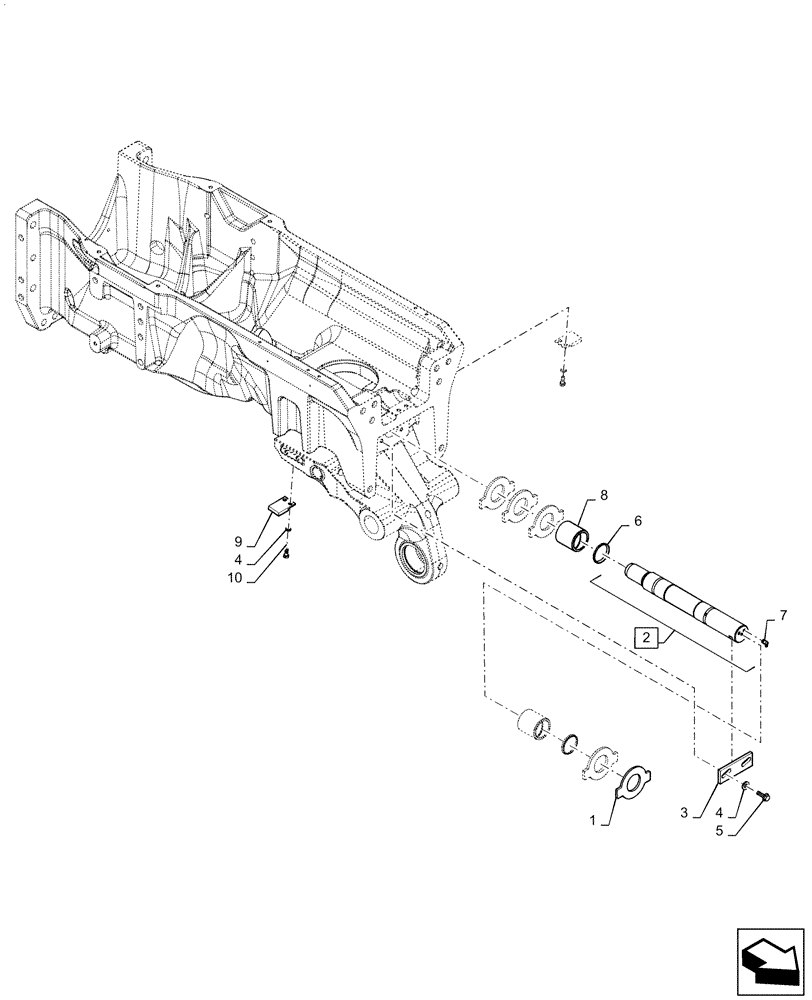

Схема запчастей Case IH MAGNUM 280 - (25.100.AB[02]) - FRONT AXLE MOUNTING PARTS, SUSPENDED AXLE (25) - FRONT AXLE SYSTEM
3
2
5
9
10
4
6
4
8
7
1

Артикул

Название

Примечание

Количество

1

87309060

THRUST WASHER,60.8mm ID x 112mm OD x 7.75mm Thk

5.75/7.75mm

1шт.

1

87309061

THRUST WASHER,6.25mm Thk

6.25/8.25mm

1шт.

1

87309062

THRUST WASHER,7mm Thk

7.00/9.00mm

1шт.

1

87309063

THRUST WASHER,7.5mm Thk

7.50/9.50mm

1шт.

1

87369711

THRUST WASHER,60.8mm ID x 112mm OD x 8mm Thk

8.00/10.00mm

1шт.

2

87400196

PIN ASSY.,60.26mm OD x 510mm L

Incl 7

1шт.

3

84409103

PLATE

Front Axle Pivot

1шт.

4

896-16012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

6шт.

5

857-12035

BOLT,Hvy Hex, M12 x 35mm, Cl 10.9

2шт.

6

87400202

SEAL

MFD Pivot Dirt Excluder

2шт.

7

219-92

LUBE NIPPLE,90 Degree Elbow, 1/8" NPTF

1шт.

8

87433501

BUSHING,60.46mm ID x 74.97mm OD x 75.78mm L

MFD Axle Pivot Pin

2шт.

9

447672A1

BLOCK

Travel Limiting

2шт.

10

854-12035

BOLT,Hvy Hex, M12 x 35mm, Cl 10.9

4шт.

Выбрано товаров: 14
