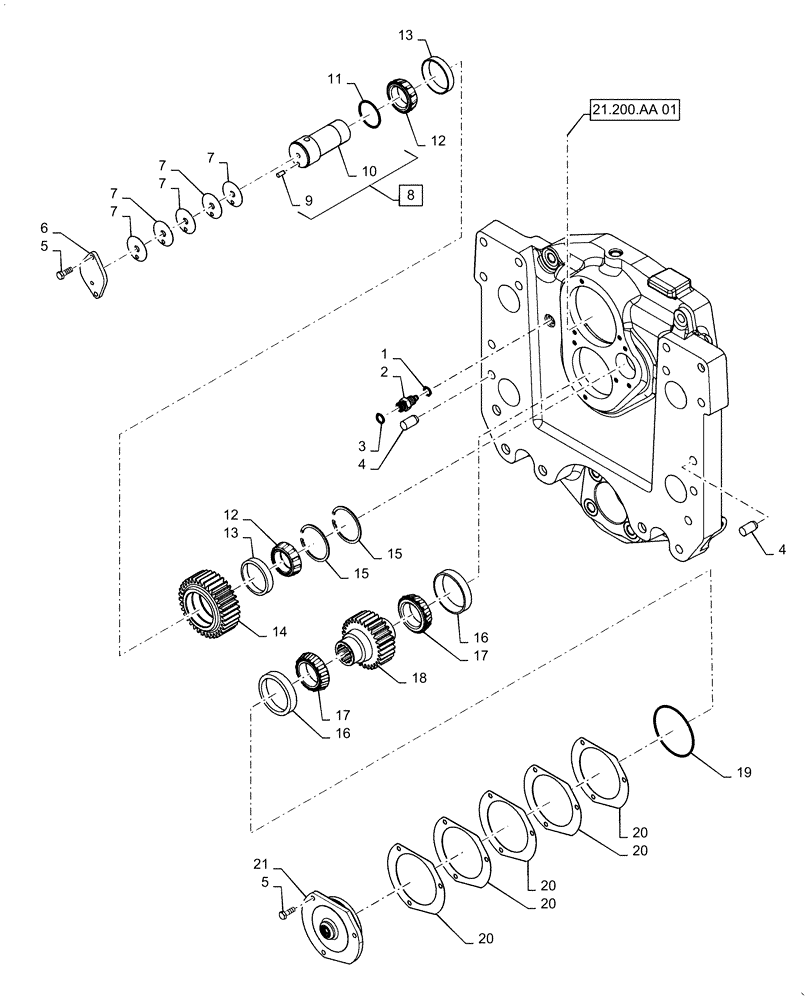

Запчасти Case IH MAGNUM 280 (21.200.AA[02]) - VAR - 429330, 429331, 429332, 429333 - POWERSHIFT - TRANSMISSION, DROP BOX (21) - TRANSMISSION

1

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

2

93105C1

UNION

JIC to FFS Bulkhead

1шт.

3

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

4

837-20040

DOWEL,M20 x 40

2шт.

5

339770A1

BOLT,Hex, M10 x 30mm, Cl 10.9, W/ Sealant

8шт.

6

258469A1

COVER PLATE

Idler Shaft

1шт.

7

228300A1

SHIM,13.5mm ID x 59mm OD x 0.36mm Thk

1шт.

7

228303A1

SHIM,13.50mm ID x 59mm OD x 0.635mm Thk

1шт.

7

275215A1

SHIM,13.5mm ID x 59mm OD x 0.2mm Thk

1шт.

7

341207A1

SHIM,13.5mm ID x 59mm OD x 0.18mm Thk

1шт.

7

341208A1

SHIM,13.50mm ID x 59mm OD x 0.152mm Thk

1шт.

8

228304A2

SHAFT ASSY.

Idler Gear, Incl 9, 10

1шт.

9

226189A2

SHAFT

1шт.

10

837-8020

DOWEL,8mm OD x 20mm L

1шт.

11

238-5140

O-RING,0.103" Thk x 2.237" ID, -140, Cl 5, 75 Duro

1шт.

12

364463C91

BEARING ASSY,2.0005" ID x 3.2283" OD x 0.875"

2шт.

13

364462C1

BEARING CUP,82.55mm OD x 16.51mm W

2шт.

14

302554A1

IDLER GEAR

34T

1шт.

15

101-21325

SNAP RING,#325, 3.488", Int

2шт.

16

105496H

BEARING CUP,97.63mm OD x 19.45mm W

2шт.

17

105503H

ROLLER BEARING,57.15mm ID x 24.61mm W

2шт.

18

87740760

GEAR SHAFT

Input/Output 30T

1шт.

19

238-5157

O-RING,0.103" Thk x 4.487" ID, -157, Cl 5, 75 Duro

1шт.

20

341210A1

SHIM,0.152mm Thk

1шт.

20

341209A1

SHIM,123.4mm ID x 175mm OD x 0.18mm Thk

1шт.

20

275213A1

SHIM,123.4mm ID x 175mm OD x 0.2mm Thk

1шт.

20

228265A1

SHIM,123.4mm ID x 175mm OD x 0.64mm Thk

1шт.

20

228261A1

SHIM,123.4mm ID x 175mm OD x 0.36mm Thk

1шт.

21

226188A3

CAGE

Drop Box Output Shaft

1шт.
