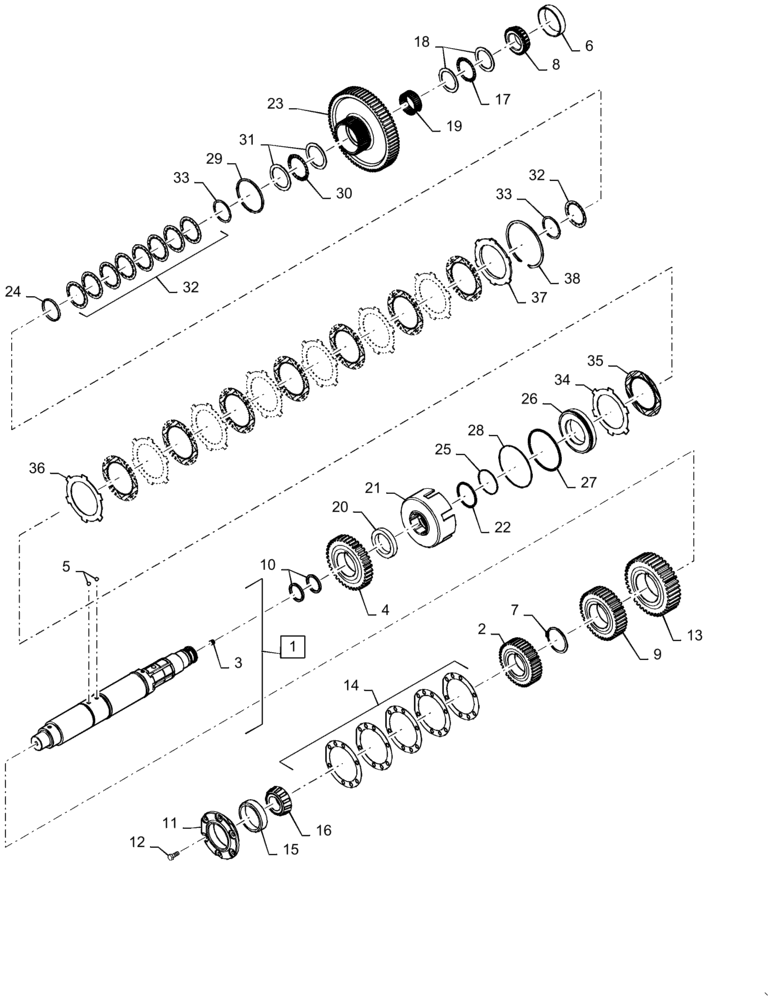

Запчасти Case IH MAGNUM 280 (21.155.AN[02]) - VAR - 429330, 429331, 429332, 429333 - POWERSHIFT - SPEED TRANSMISSION, COUNTERSHAFT WITH CREEP/19 SPEED OR 50 KPH TRANSMISSION (21) - TRANSMISSION

1

87425383

SHAFT ASSY.

Incl 3

1шт.

2

1285981C1

GEAR

Drive, 29T

1шт.

3

187516A1

PLUG,Expansion, 12mm

1шт.

4

1285989C1

GEAR

Driven, 37T

1шт.

5

211-1012

BALL,3/8" Dia

4шт.

6

614052

BEARING CUP

92.76mm OD

1шт.

7

100-11293

SNAP RING,#293, Ext

1шт.

8

219530H1

BEARING ASSY,49.99mm ID x 24.71mm W

1шт.

9

1285983C1

DRIVING GEAR

34T

1шт.

10

1286024C1

SEALING RING,Locking, 46.61mm ID x 50.61mm OD x 2.87mm Thk

2шт.

11

1286000C3

ROLLER CAGE BEARING,82 mm ID x 148 mm OD x 9.9, 19 mm

1шт.

12

613-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

6шт.

13

1285986C1

GEAR

Driven, 39T

1шт.

14

120647C2

SHIM,0.080mm Thk

1шт.

14

120648C2

SHIM,0.100mm Thk

1шт.

14

120649C2

SHIM,0.130mm Thk

1шт.

14

120650C2

SHIM,0.300mm Thk

1шт.

14

120651C2

SHIM,0.760mm Thk

1шт.

15

ST863

BEARING CUP,93.22mm OD x 23.81mm W

1шт.

16

ST2051

TAPERED BEARING,1.75" ID x 3.6718" OD x 1.1875"

1шт.

17

374011R1

BEARING ASSY,2.257" ID x 2.99" OD

1шт.

18

1286042C1

THRUST WASHER,57.21mm ID x 76.05mm OD x 2.37mm Thk

2шт.

19

80906C1

BEARING ASSY,57.14mm ID x 66.7mm OD x 31.75mm W

1шт.

20

92824C1

SPACER,63.65mm ID x 88.9mm OD x 14mm L

1шт.

21

86991568

CARRIER

Creeper Clutch

1шт.

22

1286081C1

O-RING,1.78mm Thk x 69.57mm ID, -39, 60 Duro

1шт.

23

87425380

DRIVEN GEAR

35T, 50 KPH Transmission

1шт.

23

92795C1

PINION

67T, Creeper Drive

1шт.

24

87434656

SEAL,63.75mm ID x 67.75mm OD x 5.5mm Thk

1шт.

25

1286076C1

RING,73.46mm ID x 76.5mm OD x 2.28mm Thk

1шт.

26

242492A5

PISTON

Shift Clutch

1шт.

27

1286083C1

O-RING,1.78mm Thk x 120.37mm ID, -48, 60 Duro

1шт.

28

1286079C1

RING,128.96mm ID x 132mm OD x 2.28mm Thk

1шт.

29

1286052C1

RING,Locking, 98.8mm ID x 106.6mm OD x 4.5mm Thk

1шт.

30

572182R1

THRUST BEARING,63.5mm ID x 82.5mm OD x 1.98mm W

1шт.

31

1286043C1

THRUST WASHER,63.56mm ID x 82.38mm OD x 2.37mm Thk

2шт.

32

87425389

BELLEVILLE SPRING

Piston Return

9шт.

33

87639535

SNAP RING,Ext, #250, 59.842mm ID

2шт.

34

87738316

DISC,107mm ID x 158mm OD x 2.01mm Thk

Separator

1шт.

35

86990276

DISC,98.63mm ID x 141mm OD x 1.95mm Thk

Friction

8шт.

36

87622084

DISC,107mm ID x 158mm OD x 1.22mm Thk

Separator

7шт.

37

1342645C3

CLUTCH DISC

Backing

1шт.

38

1285996C1

SNAP RING,151mm OD, Internal

1шт.
