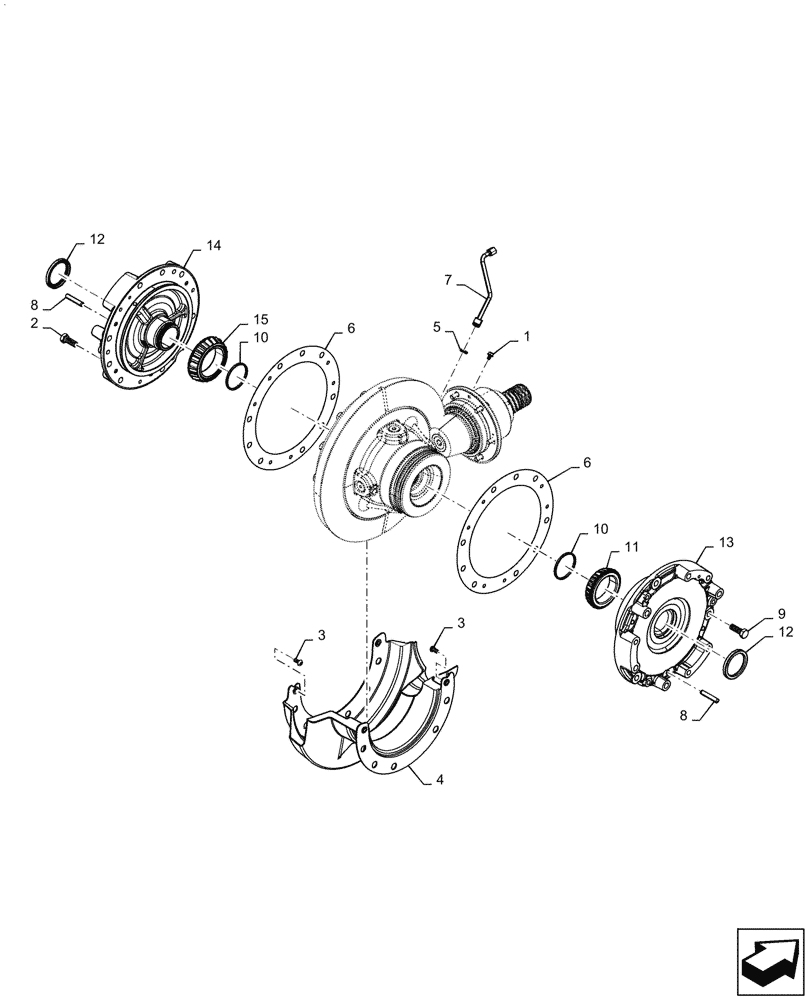

Запчасти Case IH MAGNUM 280 (27.106.AC[06]) - VAR - 429334, 429335, AND 420216 OR 420218 - CVT - DIFFERENTIAL BEARING CARRIER - 250, 280 (27) - REAR AXLE SYSTEM

1

844-8012

BOLT,M8 x 1.25 x 20.1mm, Cl 8.8

1шт.

2

628-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

3шт.

3

84405128

HEX SOC SCREW,M10 x 1.5 x 20mm, Cl 10.9

4шт.

4

84379827

SHIELD

Bevel Ring Gear

1шт.

5

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

6

84374129

SHIM KIT

Differential Setting

1шт.

7

409738A1

TUBE

Differential Lock Pressure

1шт.

8

136433A1

DOWEL,M12 x 65mm, HDN

10шт.

9

628-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd

3шт.

10

139060C2

SEAL,82.6mm ID x 88.6mm OD x 4.5mm Thk

Differential Bearing Seal

2шт.

11

622336C1

ROLLER BEARING,84.99mm ID x 30mm W

1шт.

12

139059C1

SEAL,70mm ID x 90mm OD x 8mm Thk

2шт.

13

47572487

BEARING CARRIER

Differential, RH

1шт.

14

84142455

CARRIER

Differential, LH

1шт.

15

67250C1

ROLLER BEARING,89.99mm ID x 35mm W

1шт.
