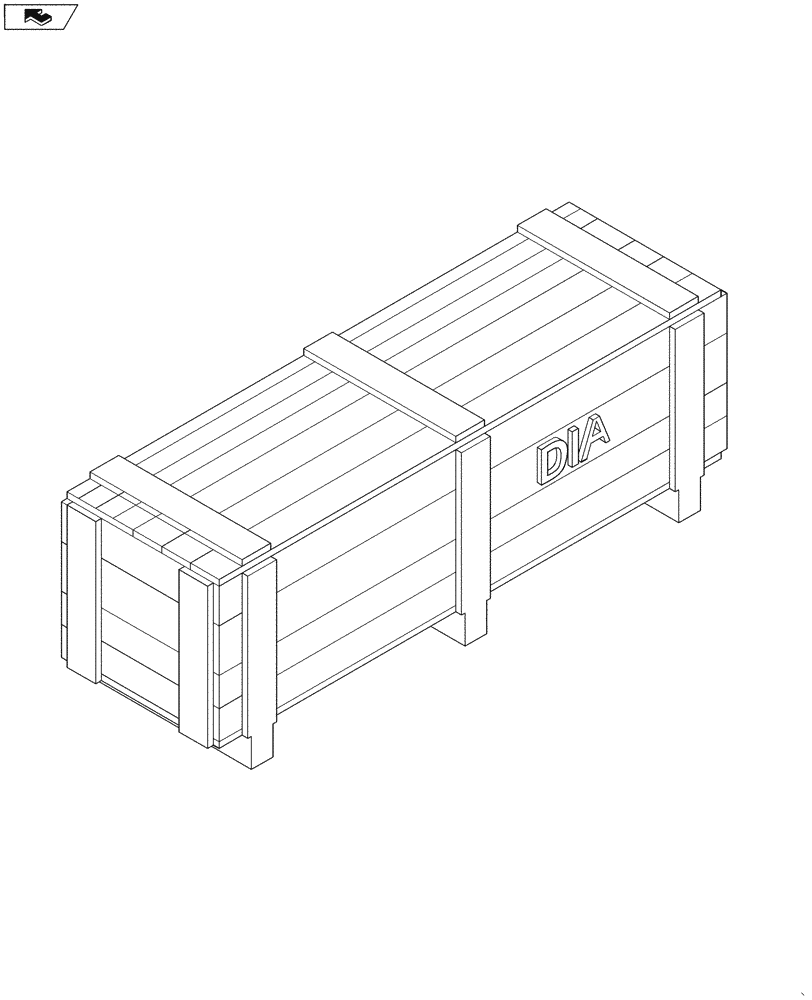

Запчасти Case IH MAGNUM 275 (88.090.01) - DIA KIT, PACKAGE, CHASSIS RE-ENFORCEMENT-MX (88) - ACCESSORIES

1

87647844

DIA KIT, TRACTOR

Package , Chassis Re - Enforcement - Mx, Incl 2 - 32

1шт.

2

87473484

INSTRUCTION

Cih Cch Frame Supp

1шт.

3

87599935

Diagram, Mx Chassis Re-Enforcement Install

1шт.

4

87626107

CROSSBAR

Bar, Chassis Cross-Mx

1шт.

5

87626069

PLATE

Plate, Chassis Enforcement Side

2шт.

6

9843495

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9

17шт.

7

896-12020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

8

87599182

PLATE

Plate, Tube Assembly Mounting Base

1шт.

9

87599599

SCREW

2шт.

10

827-20085

BOLT,Hex, M20 x 2.5 x 85mm, Cl 10.9

2шт.

11

87618511

BLOCK

Bar, Chassis Tube Spacer

2шт.

12

1331939C1

SPACER

Drawbar Strap

1шт.

13

86508350

BOLT,Hex, M20 x 110mm, Cl 10.9

1шт.

14

296033A1

DECAL

Negative Jump Start

1шт.

15

87015584

BOLT,Hex, M20 x 220mm, Cl 10.9

2шт.

16

87596776

SUPPORT

Tube Assembly, Chassis

1шт.

17

86511674

BOLT,Hex, M20 x 120mm, Cl 10.9

4шт.

18

87619907

BLOCK

Chassis Bar Bolt

2шт.

19

86015195

NUT,M20 x 1.5, Cl 10

2шт.

20

87648726

SCREW,Hex, M20 x 1.5 x 90mm, Cl 10.9

2шт.

21

87653821

Support Assembly, Window Step

1шт.

22

9846949

BOLT,Hex, M20 x 2.5 x 80mm, Cl 10.9

3шт.

23

1982103C1

PIN,34.87mm OD x 140mm L

Pin, Drawbar Pivot

1шт.

24

87628396

RETAINER

Drawbar Pivot Pin Retaining Plate

1шт.

25

892-11012

LOCK WASHER,M12

Spring

1шт.

26

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

1шт.

27

87608336

PAD

Mx Fender Stop

2шт.

28

905724R1

HEX SOC SCREW,Flat Csk Hd, M16 x 30mm, Cl 10.9

8шт.

29

87666512

BRACKET

Fuel Water Separator Assembly

1шт.

30

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

4шт.

31

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

32

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

2шт.
