(05.100.03[01]) - FILTERS, MX275, MAGNUM 275

Запчасти Case IH MAGNUM 275 (05.100.03[01]) - FILTERS, MX275, MAGNUM 275 (18) - MISCELLANEOUS

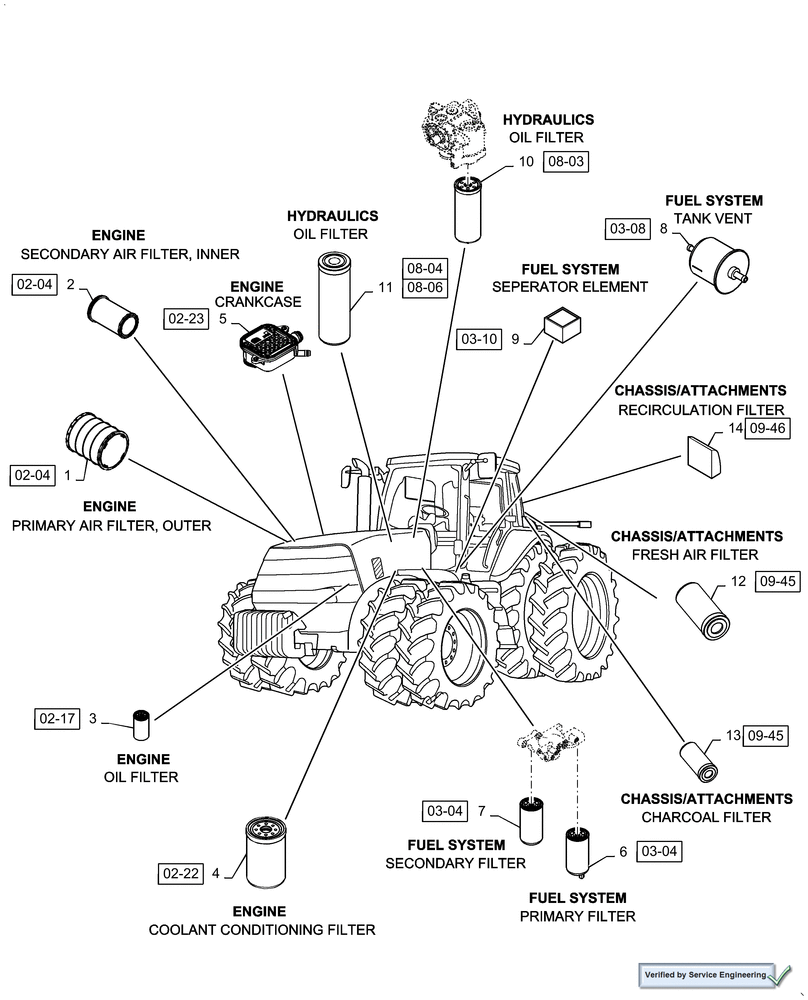

Схема запчастей Case IH MAGNUM 275 - (05.100.03[01]) - FILTERS, MX275, MAGNUM 275 (18) - MISCELLANEOUS
11
7
09-46
10
6
14
08-04
03-04
4
12
08-06
03-10
5
02-17
08-03
1
03-08
2
9
02-22
13
09-45
3
02-04
02-23
09-45
8
03-04
02-04
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84475951

AIR FILTER

Engine, Primary, Serial Range: -Z8RZ03733

1шт.

1

87741560

AIR FILTER

Engine, Primary, Start Serial: Z8RZ03733

1шт.

2

84476647

AIR FILTER

Engine, Secondary, Serial Range: -Z8RZ03733

1шт.

2

87741569

AIR FILTER

Engine, Secondary, Start Serial: Z8RZ03733

1шт.

3

84301243

ENGINE OIL FILTER

1шт.

4

84605017

COOLANT FILTER

H20 Conditioning

1шт.

5

87338649

BREATHER

Crankcase

1шт.

6

84477359

FUEL FILTER

Primary

1шт.

7

84477358

FUEL FILTER

Secondary

1шт.

8

87433010

BREATHER

Fuel System

1шт.

9

336430A1

FUEL FILTER

Seperator Element

1шт.

10

84226258

HYDRAULIC OIL FILTER,94mm OD x 240mm L, 1" 3/8-12UNF

1шт.

11

84487937

HYDRAULIC OIL FILTER,Spin On, 14.48" OAL

For Standard and High Flow

1шт.

12

87684088

CAB FILTER,CAB

1шт.

13

87267363

AIR FILTER,Cab Charcoal Recirculation

1шт.

14

293615A1

FILTER

Cab Air Recirculation, Two Are Required

2шт.

15

1971726C1

BREATHER,1/4" - 18

Transmission

1шт.

Выбрано товаров: 17
