Запчасти Case IH MAGNUM 275 (05-14A) - FRONT AXLE - SUSPENSION, CLASS V - SUSPENDED MFD - MAGNUM 275, 305 AND 335 (05) - STEERING

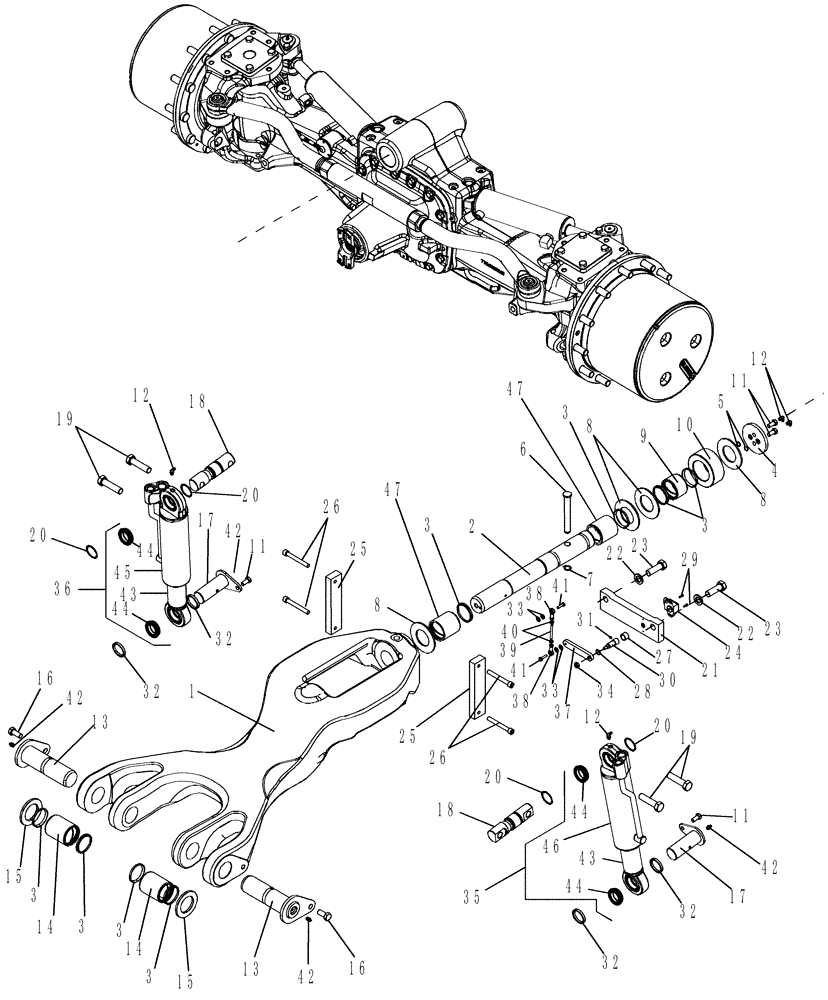

Схема запчастей Case IH MAGNUM 275 - (05-14A) - FRONT AXLE - SUSPENSION, CLASS V - SUSPENDED MFD - MAGNUM 275, 305 AND 335 (05) - STEERING
12
19
9
42
23
3
26
15
20
3
8
41
36
38
31
11
3
44
11
35
11
33
3
40
32
37
25
14
24
3
17
22
13
3
33
44
44
44
45
32
25
20
46
47
15
43
17
41
22
3
12
34
8
27
19
4
5
47
7
42
28
1
21
20
43
20
26
10
14
32
39
18
18
30
29
42
12
6
2
16
8
16
23
32
13
42
38

Артикул

Название

Примечание

Количество

1

84129588

SADDLE

1шт.

2

87484786

LARGE PIN

1шт.

3

87400202

SEAL

MFD Pivot Pin

8шт.

4

87484805

RETAINER

High Pin Axle Pivot

1шт.

5

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

2шт.

6

87694639

HEADED PIN

1шт.

7

800-4520

SNAP RING,M20, Ext

1шт.

8

86990303

THRUST WASHER,60.8mm ID x 112mm OD x 4.65mm Thk

MFD Pivot Pin

4шт.

9

87696370

BUSHING

High Pin

1шт.

10

87696369

ROLLER

1шт.

11

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

4шт.

12

716472R91

LUBE NIPPLE,90 Degree, M10 x 1

4шт.

13

87681720

PIN,60.26mm OD x 222mm L

2шт.

14

87696363

BUSHING

Saddle

2шт.

15

87696364

THRUST WASHER

Saddle Pivot

2шт.

16

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

2шт.

17

87696365

PIN,45mm OD x 118mm L

Suspended Cylinders

2шт.

18

87695275

PIN

Upper Cylinder Mount

2шт.

19

827-20080

BOLT,Hex, M20 x 2.5 x 80mm, Cl 10.9

4шт.

20

101-11177

SNAP RING,#177, 1.657", Ext

4шт.

21

84144536

PLATE

Saddle Retainer

1шт.

22

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

2шт.

23

9843495

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9

2шт.

24

429690A1

SENSOR

Axle Position

1шт.

25

87696371

PLATE

Roller Guide

2шт.

26

863-12100

HEX SOC SCREW,M12 x 100mm, Cl 12.9

4шт.

27

87696373

BUSHING

Sensor

1шт.

28

638-62160

O-RING,16mm ID x 1.8mm Width

1шт.

29

864-4012

HEX SOC SCREW,M4 x 12mm, Cl 8.8

2шт.

30

87485027

PIN

Sensor Extension

1шт.

31

877-1046

SET SCREW,M4 x 6mm

1шт.

32

87696368

SPACER

Cylinder Rod Pin

4шт.

33

495-81102

WASHER,.266" x 1/2" x .060"

4шт.

34

437013

NUT

1шт.

35

87696280

CYLINDER

Right Hand, Inc. 43, 44, 46

1шт.

36

87696281

CYLINDER,Double Acting, 63mm Rod, 219mm Stroke

Left Hand, Inc. 43 - 45

1шт.

36

87696281R

REMAN-HYD CYLINDER

MAGNUM 305, MAGNUM 275, Both (9/06-), MAGNUM 335, All TRACTOR (NA), Left Hand

1шт.

36

87696281C

CORE-HYD CYLINDER

Return Number

1шт.

37

87696374

ARM

Saddle Position Sensor

1шт.

38

431039A1

BALL JOINT HEAD,1/4" - 28

2шт.

39

87696375

ROD

Saddle Position Linkage

1шт.

40

86976064

JAM NUT,Jam, 1/4"-28, G5

2шт.

41

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

42

933781R1

LUBE NIPPLE,M10 x 1

4шт.

43

84184318

PISTON ROD

1шт.

44

84184319

SPHERICAL BEARING,45mm ID x 88mm OD x 32mm W

Incl Snap Ring NSS

2шт.

45

84184320

HYDRAULIC CYLINDER

Left Hand

1шт.

46

84184321

HYDRAULIC CYLINDER

Right Hand

1шт.

47

87433501

BUSHING,60.46mm ID x 74.97mm OD x 75.78mm L

2шт.

Выбрано товаров: 49
