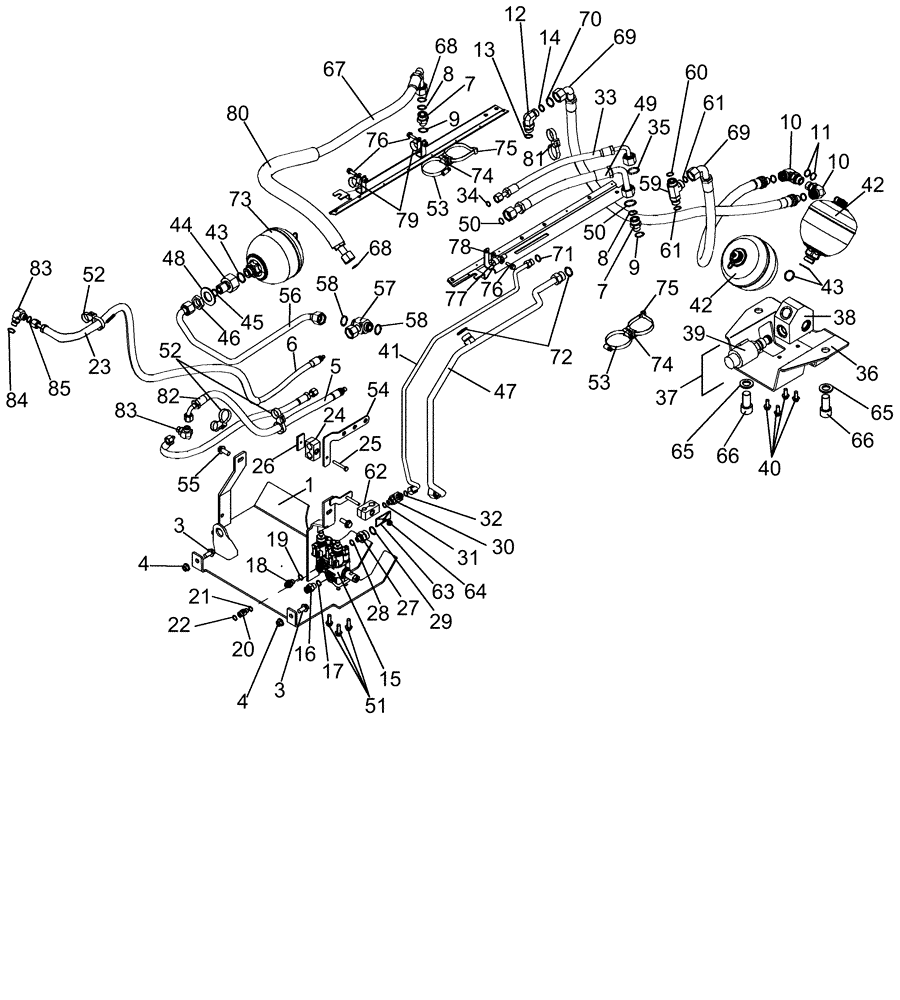

Запчасти Case IH MAGNUM 275 (05-09A) - HYDRAULIC SYSTEM - CLASS V - SUSPENDED MFD AXLE - MAGNUM 275, 305 AND 335 (05) - STEERING

1

84148690

BRACKET

Valve Mounting

1шт.

2

NSS

NOT SOLD SEPARAT

PLATE, Valve Spacer

1шт.

3

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

2шт.

4

825-2412

FLANGE NUT,M12 x 1.75, Flg, Cl 8

2шт.

5

87671508

HOSE ASSY.

Valve Return

1шт.

6

87671510

HOSE

Valve Supply

1шт.

7

700-107

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M22 x 1.5 Male ORB

Inc. 8, 9

2шт.

8

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

9

70923843

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

10

84145620

90 ELBOW,M27 ORB, Male Adj x 20mm STC Fem

Inc. 11

2шт.

11

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

12

84141379

ELBOW

Inc. 13, 14

1шт.

13

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

14

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

15

87668716

VALVE

ASSY, Suspended Axle Control

1шт.

See Figure 05-11

1шт.

16

87331075

HYD CONNECTOR,M18 x 1.5 Male ORB x -08 Fem STC

Inc. 17

1шт.

17

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

18

87602611

HYD CONNECTOR,M16 x 1.5 Male ORB x -06 Fem STC

Inc. 19

1шт.

19

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

20

223971A1

CHECK VALVE,11/16" - 16 ORFS x M14 x 1.5 ORB

Inc. 21, 22

1шт.

21

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

22

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

23

87403388

CONDUIT

1шт.

24

329804A1

CLAMP,22mm ID

1шт.

25

814-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 8.8

1шт.

26

384871A1

PLATE

1шт.

27

87493695

FITTING

Inc. 28, 29

1шт.

28

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

29

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

30

700-385

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Inc. 31, 32

1шт.

31

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

32

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

33

87625551

HOSE

Cylinder Head Supply, Inc. 34, 35

1шт.

34

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

35

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

36

84140980

BRACKET

Blocking Valve Support

1шт.

37

87470577

VALVE

Blocking, Inc. 38, 39

1шт.

38

87470572

BODY

1шт.

39

87749686

SOLENOID

1шт.

40

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

4шт.

41

87495084

TUBE,0.5" OD

Valve Port A, Inc. 87

1шт.

42

87703721

ACCUMULATOR

2 Liter

2шт.

43

84160815

SEALING RING

SEALRING

3шт.

44

87704070

ADAPTER

Inc. 45

1шт.

45

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

46

495-11138

WASHER,1 1/4", SAE

1шт.

47

87493311

TUBE,0.75" OD

Valve Port B, Inc. 86

1шт.

48

701-1249

BHD LOCK NUT,1-3/16" - 12

1шт.

49

87493312

HOSE

Cylinder Rod Supply, Inc. 50

1шт.

50

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

51

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

3шт.

52

86991000

CLAMP

3шт.

53

214-1460

HOSE CLAMP,#60, 3.31" - 4.25", Type F Worm

2шт.

54

87667044

BRACKET

1шт.

55

844-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 8.8

2шт.

56

87493290

TUBE,0.75" OD

Valve to Accumulator

1шт.

57

87328818

TEE

Inc. 58

1шт.

58

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

59

84141301

TEE

Inc. 60, 61

1шт.

60

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

61

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

62

87000153

CLAMP,2 Hole, 19.05 - 12.70 mm Dia Ribbed, 37mm H x 67mm L

2шт.

63

1347127C1

PLATE

2шт.

64

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

65

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

2шт.

66

2186808

HEX SOC SCREW,M24 x 50mm, Cl 8.8

2шт.

67

87493314

HOSE

Cylinder Rod, Left Hand, Inc. 68

1шт.

68

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

69

84145604

HOSE

Accumulators, Inc. 70

2шт.

70

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

71

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

72

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

73

87497534

ACCUMULATOR

2 Liter

1шт.

74

86991001

SPACER

2шт.

75

86991007

CABLE TIE,509mm L

CABLE STRAP

2шт.

76

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

3шт.

77

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

1шт.

78

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

1шт.

79

515-22317

CLAMP,1 1/4", Insul, 5/16" Bolt

2шт.

80

84140357

PROTECTIVE SLEEVE

1шт.

81

86991000

CLAMP

1шт.

82

87671509

HOSE

Valve Load Sense

1шт.

83

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 84, 85

2шт.

84

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

85

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

86

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

87

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.
