Запчасти Case IH MAGNUM 2654 (21.155.AA[08]) - POWERSHIFT - RANGE TRANSMISSION - MFD CLUTCH - CL 4.5 AXLE (21) - TRANSMISSION

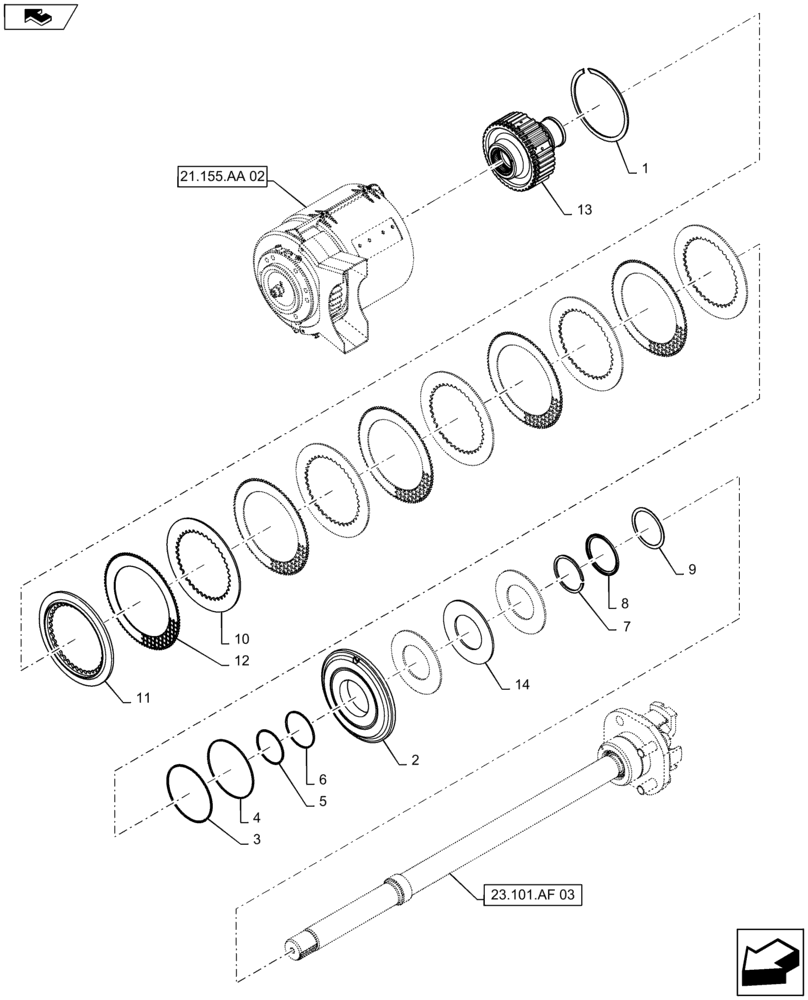

Схема запчастей Case IH MAGNUM 2654 - (21.155.AA[08]) - POWERSHIFT - RANGE TRANSMISSION - MFD CLUTCH - CL 4.5 AXLE (21) - TRANSMISSION
3
14
8
9
23.101.af 03
4
21.155.aa 02
13
5
10
1
12
home
7
6
2
11

Артикул

Название

Примечание

Количество

1

87347811

CIRCLIP

Retaining, External

3шт.

2

84524002

PISTON

Emergency Brake

2шт.

3

87037455

O-RING,0.103" Thk x 5.237" ID, -160, Cl 7, 75 Duro

2шт.

4

87433971

SEAL,139.65mm ID x 143.05mm OD x 2.87mm Thk

Park Brake, MFD, Large

2шт.

5

238-7151

O-RING,0.103" Thk x 2.99" ID, -151, Cl 7, 75 Duro

2шт.

6

87433970

SEAL,85.4mm ID x 88.8mm OD x 2.87mm Thk

Park Brake, MFD, Small

3шт.

7

87434027

CIRCLIP

Retaining, External

3шт.

8

84530165

SNAP RING

Retaining

3шт.

9

87329116

SHIM,84.5mm ID x 100mm OD x 1.52mm Thk

1шт.

9

47572512

SHIM,84.5mm ID x 100mm OD x 1.27mm Thk

1шт.

9

87639547

SHIM,84.5mm ID x 100mm OD x 1mm Thk

1шт.

10

87449793

SEPARATOR

Plate

16шт.

11

84524003

PLATE,161.88mm ID x 228.5mm OD x 19.35mm Thk

39T

2шт.

12

84159176

CLUTCH PLATE

Friction

9шт.

13

84482494

HUB

MFD

1шт.

14

47523411

BELLEVILLE SPRING

MFD

3шт.

Выбрано товаров: 16
