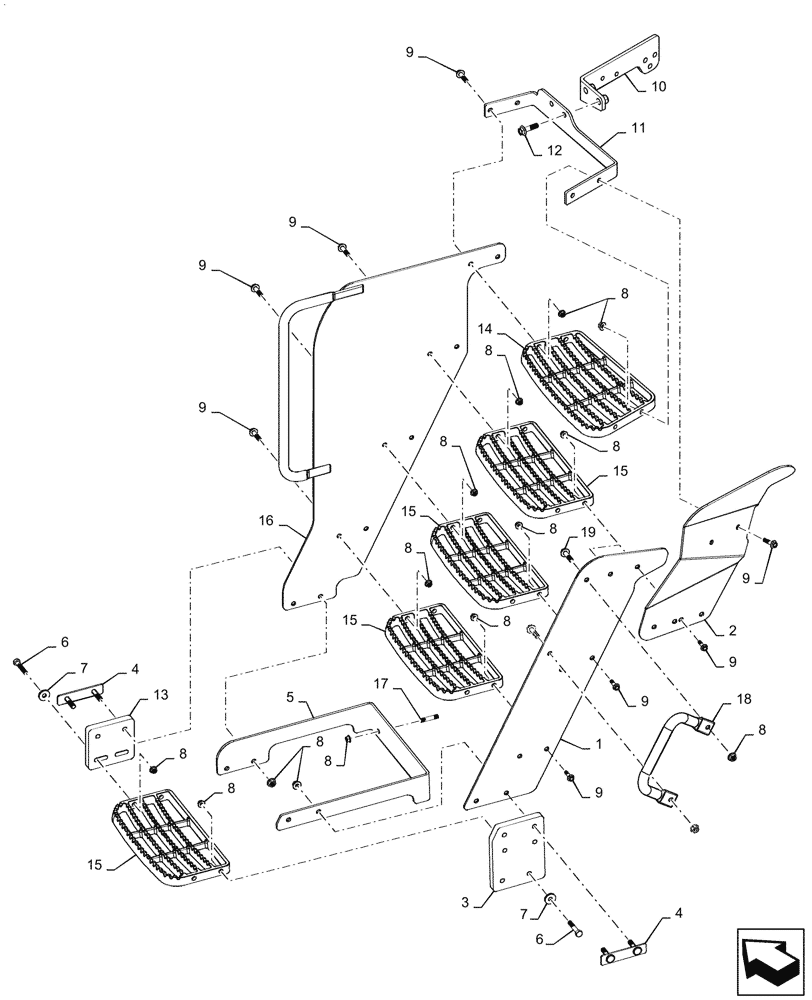

Запчасти Case IH MAGNUM 2654 (90.118.AE[04]) - CAB STEPS - CHINA (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87486131

RISER

Rear Steps

1шт.

2

84256934

RISER

Rear Upper Step

1шт.

3

87486039

RISER

Flexible Step

1шт.

4

47379261

PLATE

Step

2шт.

5

47380386

BRACKET

Lower Step Support

1шт.

6

614-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd

4шт.

7

86642464

WASHER,11mm ID x 30mm OD x 2.5mm Thk

4шт.

8

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

28шт.

9

844-10035

BOLT,Hex, M10 x 35mm, Cl 8.8

16шт.

10

47380391

BRACKET

Rear Upper Support

1шт.

11

47381380

BRACKET

Front Upper Support

1шт.

12

844-12035

BOLT,Hvy Hex, M12 x 35mm, Cl 8.8

2шт.

13

47422639

RISER

Flexible Step

1шт.

14

87310397

STEP

1шт.

15

87301185

STEP

Cast Aluminum with Clear Coating

4шт.

16

47454030

RISER

Step, w/Handle

1шт.

17

86533693

STUD,M10 x 47, Cl 8.8

2шт.

18

48152403

HANDLE

1шт.

19

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

2шт.
