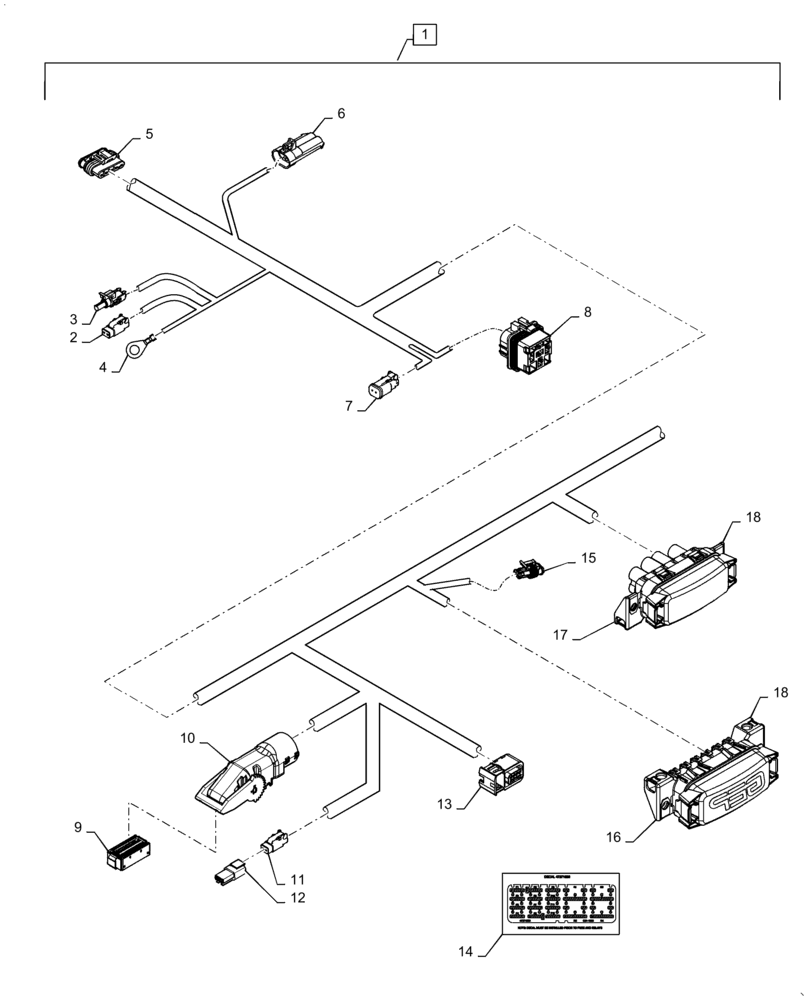

Запчасти Case IH MAGNUM 2654 (55.015.AB[06]) - WIRE HARNESS, FRONT FRAME (55) - ELECTRICAL SYSTEMS

1

47761403

WIRE HARNESS

Incl 2 - 17

1шт.

2

87696093

ELEC CONNECTOR,Female, 2 Cavities

Controller Area Network

1шт.

3

87693744

WIRE CONNECTOR

A/C Compressor Clutch

1шт.

4

84176551

ELEC CONNECTOR,16.00 - 16.00mm

M10 Ring Terminal, A/C Compressor Clutch Ground

1шт.

5

87688719

ELEC CONNECTOR,Female, 5 Cavities

Fan Vistronic

1шт.

6

87688788

MULTIPOLE CONNECTOR,Male, 2 Pole

A/C High Pressure Switch

1шт.

7

87695582

ELEC CONNECTOR,Female, 2 Pole

Alternator

1шт.

8

87697757

ELEC CONNECTOR

Aspirator Relay

1шт.

9

84595906

ELEC CONNECTOR

ECU Controller

1шт.

10

84596421

COVER

ECU Lock

1шт.

11

87696093

ELEC CONNECTOR,Female, 2 Cavities

ECM Flashing

1шт.

12

84807680

PLUG

ECM Flashing, Protector

1шт.

13

84152563

ELEC CONNECTOR

Engine Interface

1шт.

14

47371520

DECAL

Fuse Block

1шт.

15

82012083

WIRE CONNECTOR,Female

Grid Heater Relay Coil

1шт.

16

84380518

FUSE BOX

GEP Module 2

1шт.

17

84563565

FUSE HOLDER

GEP Module 1

1шт.

18

84404932

COVER

Cover

2шт.
