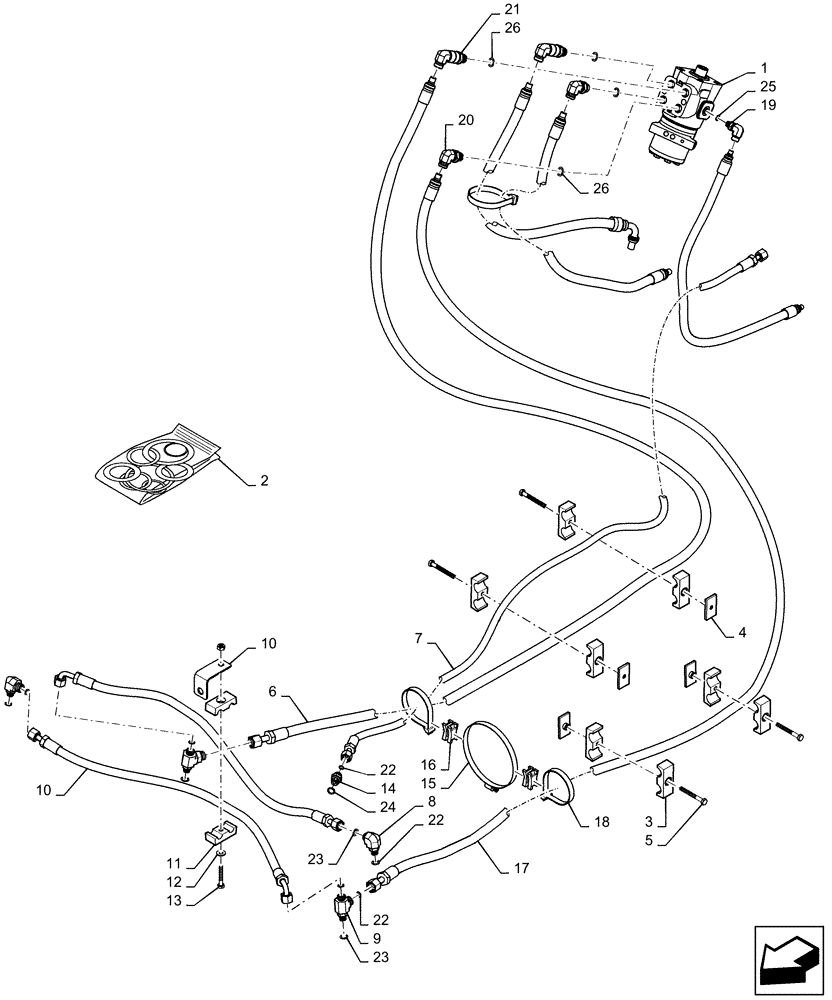

Запчасти Case IH MAGNUM 2654 (41.200.AT[03]) - STEERING SYSTEM, CL 4.5 AXLE, STANDARD MFD, MAGNUM 250, 2654 (41) - STEERING

1

445303A2

PUMP

Steering, 231 cc

1шт.

2

87454545

SEAL KIT

Steering Pump

1шт.

3

87000152

CLAMP,25.4mm D Clamping Pipes x 2

4шт.

4

384871A1

PLATE

4шт.

5

814-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8

4шт.

6

84272390

FLEXIBLE HOSE,9.53mm ID x 2216mm L

Differential Lock Supply

1шт.

7

214-14104

HOSE CLAMP,155.45mm - 177.8mm

1шт.

8

86991001

SPACER

2шт.

9

700-406

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 22, 23

2шт.

10

84244142

HYDRAULIC HOSE

Crossover

2шт.

11

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 22, 23

2шт.

12

84244231

BRACKET, SUPPORTING

1шт.

13

87000150

CLAMP,15.869mm ID

1шт.

14

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

15

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

16

700-157

HYD CONNECTOR,11/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl 22, 24

1шт.

17

84272391

FLEXIBLE HOSE,12.7mm ID x 2525mm L, SAE 100R17

Left Hand, Right Hand, STC

2шт.

18

86991007

CABLE TIE,509mm L

Cable Strap

3шт.

19

87401122

ELBOW

Incl 25

1шт.

20

87401123

ELBOW

Incl 26

2шт.

21

87401124

90 ELBOW

Incl 26

2шт.

22

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

5шт.

23

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

4шт.

24

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

25

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

26

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

4шт.
