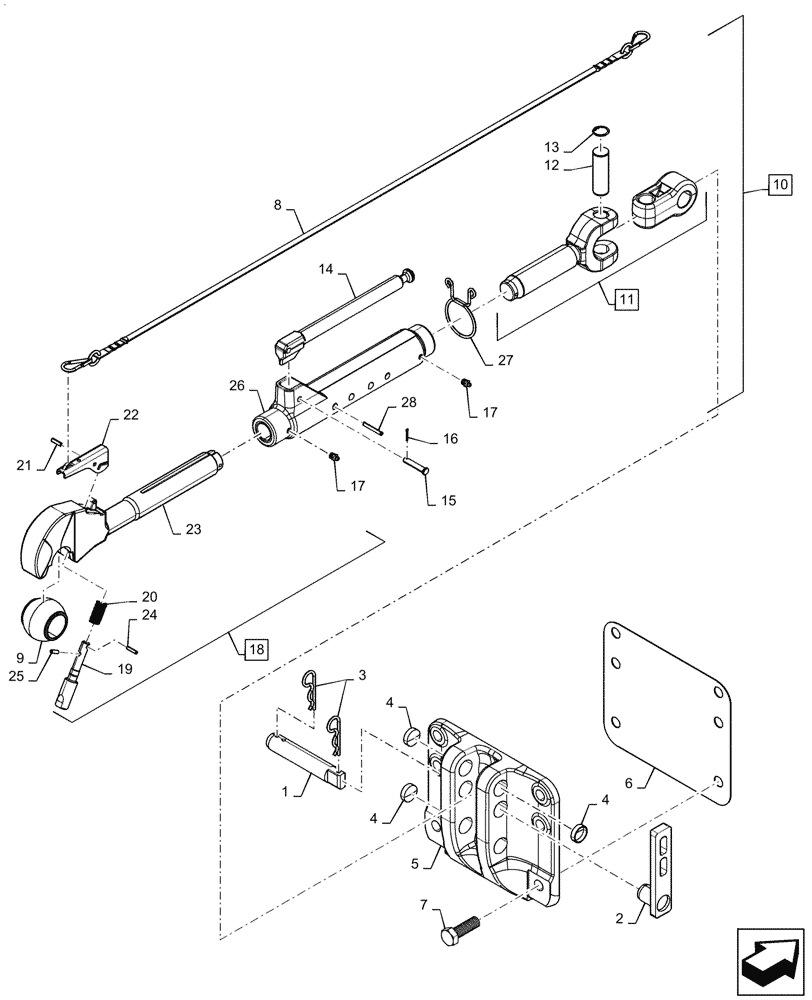

Запчасти Case IH MAGNUM 2654 (37.120.AA[13]) - VAR - 429401 - HITCH, TOP LINK CLAW END, CAT 3, EU (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

378929A1

PIN,31.65mm OD x 180mm L

1шт.

2

378932A1

PIN,31.65mm OD x 46mm L

Upper Link

1шт.

3

486830R1

COTTER PIN

2шт.

4

641-3432

PLUG,M32, Conical

3шт.

5

84300123

MOUNT

Upper Link to Transmission

1шт.

6

84387265

PLATE

Upper Link Opening

1шт.

7

628-20060

SCREW,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

6шт.

8

1348080C1

CABLE,1500mm L

Upper Link Release

1шт.

9

359188A2

BALL JOINT

Upper Link Cat 3

1шт.

10

284336A4

UPPER LINK

Cat 3 Manual, Claw End, Incl 11 - 28

1шт.

11

319585A1

CLEVIS

Upper Link, Incl 12, 13

1шт.

12

310476A2

PIN

Rod Pivot

1шт.

13

800-2128

SNAP RING,M28, Int

1шт.

14

1331863C2

HANDLE

Upper Link Turnbuckle

1шт.

15

427-6200

CLEVIS PIN,3/8" x 2", HDN

1шт.

16

432-610

COTTER PIN,3/32" x 5/8"

1шт.

17

378716A1

LUBE NIPPLE,Hex, M10 x 1 x 17.5mm L

2шт.

18

245301A2

END

Claw, Cat 3, Incl 19 - 25

1шт.

19

82032557

PIN,15.5mm OD x 127.5mm L

1шт.

20

118705A1

SPRING

Claw Latch Pin

1шт.

21

838-5524

LOCK PIN,M5 x 24, Slotted

1шт.

22

118708A1

LEVER

Claw Latch

1шт.

23

245302A1

END

Claw, Cat 3

1шт.

24

838-5624

LOCK PIN,M6 x 24, Slotted

1шт.

25

838-5620

LOCK PIN,M6 x 20, Slotted

1шт.

26

1954223C4

ARM,1-3/4" - 5

Upper Link

1шт.

27

315912A1

SPRING

Link Handle Retainer

1шт.

28

738-5645

LOCK PIN,M6 x 45, Slotted

2шт.
