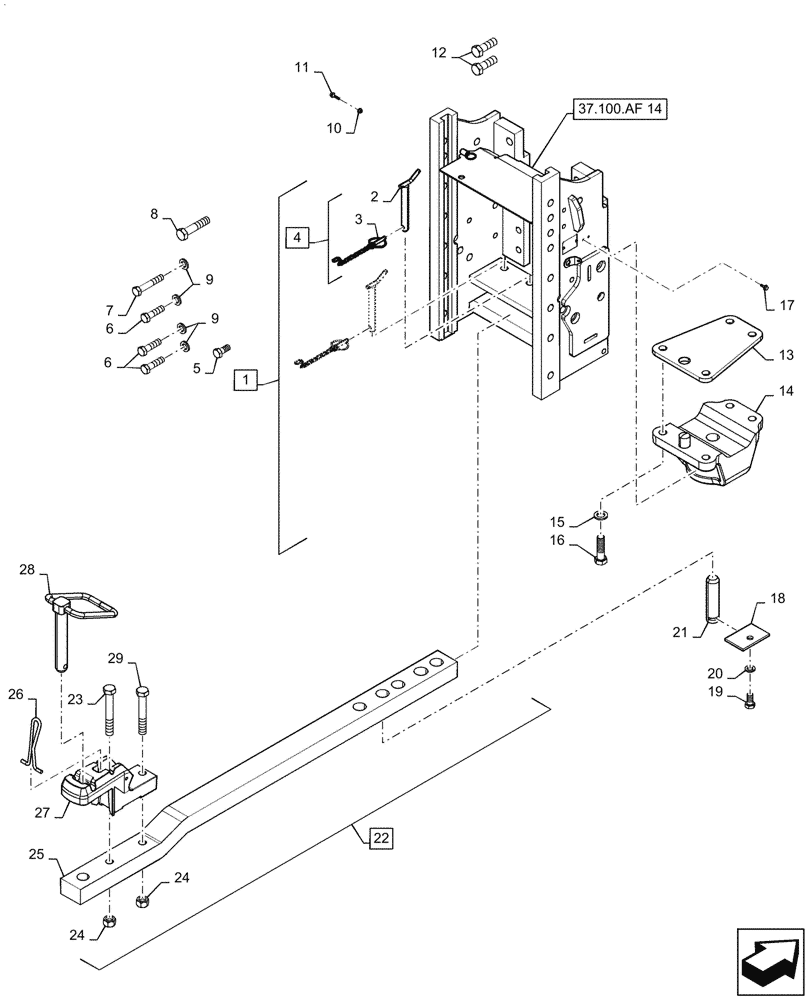

Запчасти Case IH MAGNUM 2654 (37.100.AA[12]) - VAR - 429388 - EEC EURO DRAWBAR W/LONG LADDER FRAME - STDRA (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

84583166

FRAME

Assy, German/Italian Trailer Hitch - 360, Incl 4

1шт.

2

450465A1

PIN

Drawbar Retaining

2шт.

3

449060A1

PIN,19mm OD x 149mm L

Chain Assy, Rubig Style

2шт.

4

449061A1

PIN ASSY.

Drawbar Retainer

2шт.

5

628-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

2шт.

6

828-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

6шт.

7

828-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

2шт.

8

828-20090

BOLT,Hex, M20 x 2.5 x 90mm, Cl 10.9

2шт.

9

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

10

86511444

FLANGE NUT,Hex, M6 x 1

2шт.

11

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

2шт.

12

628-20060

SCREW,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

4шт.

13

47482858

PLATE

Drawbar Pivot

1шт.

14

87489660

BRACKET

Assy, Drawbar Pivot, Cat 3

1шт.

15

896-12020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

16

828-20080

BOLT,Hex, M20 x 2.5 x 80mm, Cl 10.9

4шт.

17

844-6016

BOLT,Hvy Hex, M6 x 16mm, Cl 8.8

2шт.

18

87720346

RETAINER

Drawbar Pin

1шт.

19

86508623

BOLT,Hex, M16 x 30mm, Cl 10.9

1шт.

20

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

1шт.

21

1982103C1

PIN,34.87mm OD x 140mm L

Drawbar Pivot

1шт.

22

48046135

DRAWBAR

Assy, European EEC Approved, Incl 23 - 29

1шт.

23

827-20140

BOLT,Hex, M20 x 2.5 x 140mm, Cl 10.9

1шт.

24

829-1420

NUT,M20, Cl 10

2шт.

25

275054A2

SWINGING DRAWBAR,1451mm L x 76.2mm W x 50.8mm Thk, 35mm Offset

50mm For EEC

1шт.

26

232617A1

LATCH

Trigger Draw Pin

1шт.

27

275055A3

TOW HOOK,247.65mm L x 76.2mm W x 44.45mm Thk, 92mm Offset

Swinging Drawbar Hammerstrap

1шт.

28

275056A3

HITCH PIN,31.75mm OD x 200mm L

Assy, Drawbar Hitch Sz 4

1шт.

29

827-20130

BOLT,Hex, M20 x 2.5 x 130mm, Cl 10.9

1шт.
