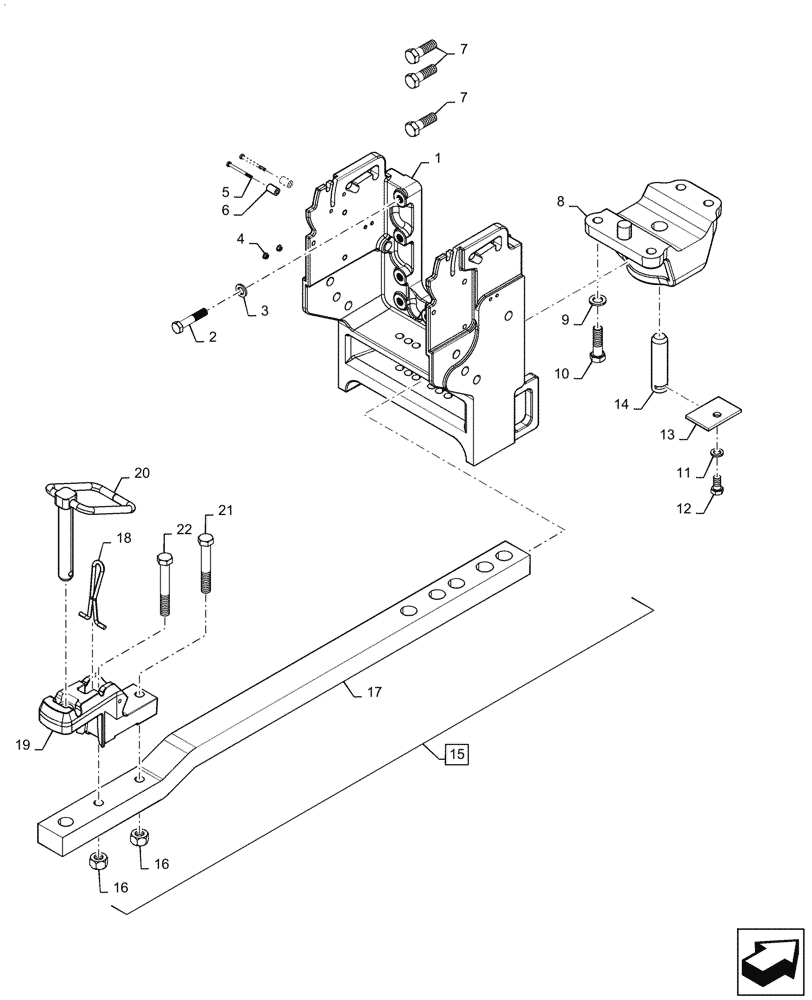

Запчасти Case IH MAGNUM 2654 (37.100.AA[11]) - VAR - 429387 - EEC EURO DRAWBAR W/DB SUPPORT FOR CAMS-STDRA (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

47675076

SUPPORT

Bracket, Cam/Drawbar Rear Support

1шт.

2

828-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

10шт.

3

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

10шт.

4

86511444

FLANGE NUT,Hex, M6 x 1

4шт.

5

827-6070

BOLT,Hex, M6 x 70mm, Cl 10.9

4шт.

6

87352470

TUBE SPACER

4шт.

7

628-20060

SCREW,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

6шт.

8

87489660

BRACKET

Assy, Drawbar Pivot Cat3

1шт.

9

896-12020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

10

828-20070

BOLT,Hex, M20 x 2.5 x 70mm, Cl 10.9

4шт.

11

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

1шт.

12

86508623

BOLT,Hex, M16 x 30mm, Cl 10.9

1шт.

13

87720346

RETAINER

Drawbar Pin

1шт.

14

1982103C1

PIN,34.87mm OD x 140mm L

Drawbar Pivot

1шт.

15

48046135

DRAWBAR

Assy, EEC Approved, Incl 16 - 22

1шт.

16

829-1420

NUT,M20, Cl 10

2шт.

17

275054A2

SWINGING DRAWBAR,1451mm L x 76.2mm W x 50.8mm Thk, 35mm Offset

50MM Bar for EEC

1шт.

18

232617A1

LATCH

Drawbar Trigger Pin

1шт.

19

275055A3

TOW HOOK,247.65mm L x 76.2mm W x 44.45mm Thk, 92mm Offset

1шт.

20

275056A3

HITCH PIN,31.75mm OD x 200mm L

1шт.

21

827-20130

BOLT,Hex, M20 x 2.5 x 130mm, Cl 10.9

1шт.

22

827-20140

BOLT,Hex, M20 x 2.5 x 140mm, Cl 10.9

1шт.
