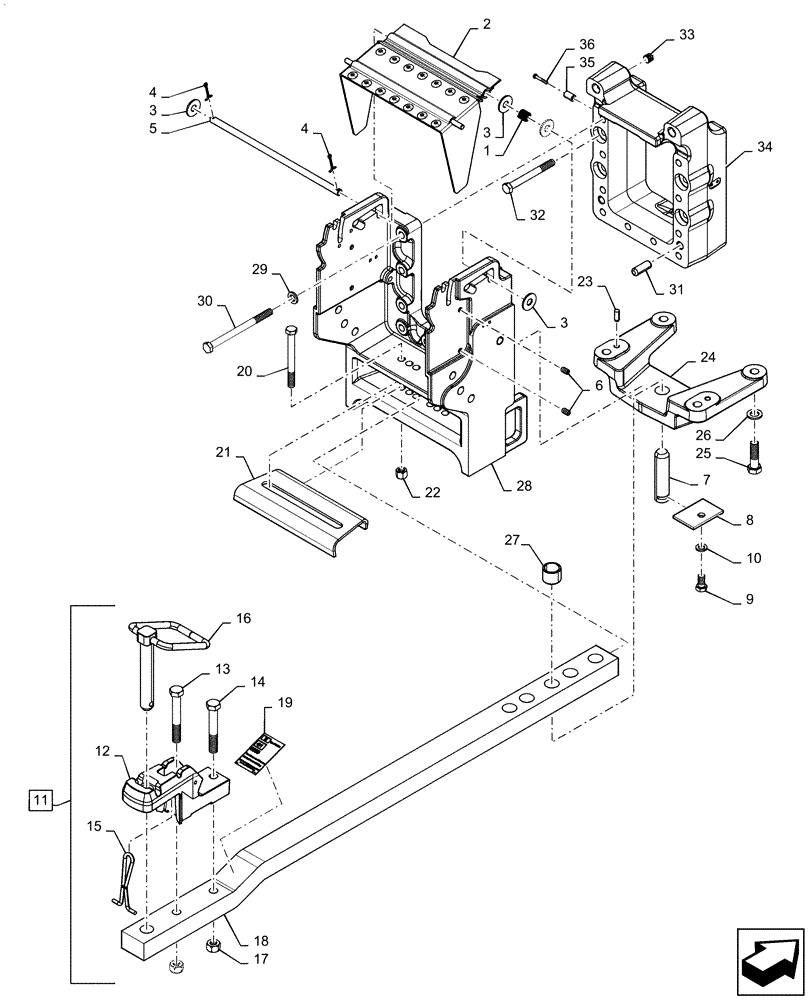

Запчасти Case IH MAGNUM 2654 (37.100.AA[08]) - VAR - 429387 - EEC EURO DRAWBAR W/DB SUPPORT FOR CAMS - HDRA (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

179657A2

SPRING

1шт.

2

379252A2

SHIELD

PTO Top

1шт.

3

495-21069

WASHER,5/8"

4шт.

4

733-5040

COTTER PIN,M5 x 40

2шт.

5

225672A2

ROD

PTO Shield Pivot

1шт.

6

87681203

SET SCREW,Hex Skt, M12 x 20mm, Cl 8.8, Full Thd, Cup Pt

4шт.

7

1982103C1

PIN,34.87mm OD x 140mm L

Drawbar Pivot

1шт.

8

87720346

RETAINER

Drawbar Pin

1шт.

9

86508623

BOLT,Hex, M16 x 30mm, Cl 10.9

1шт.

10

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

1шт.

11

84527078

DRAWBAR

Euro HD Axle, W/Clevis, Incl 12 - 19

1шт.

12

275055A3

TOW HOOK,247.65mm L x 76.2mm W x 44.45mm Thk, 92mm Offset

Hammerstrap

1шт.

13

827-20140

BOLT,Hex, M20 x 2.5 x 140mm, Cl 10.9

1шт.

14

827-20130

BOLT,Hex, M20 x 2.5 x 130mm, Cl 10.9

1шт.

15

232617A1

LATCH

Drawbar Pin

1шт.

16

275056A3

HITCH PIN,31.75mm OD x 200mm L

Drawbar Hitch

1шт.

17

829-1420

NUT,M20, Cl 10

2шт.

18

NSS

NOT SOLD SEPARAT

DRAWBAR, Incl in 11

1шт.

19

NSS

NOT SOLD SEPARAT

DECAL, EEC Drawbar, Incl in 11

1шт.

20

827-16160

BOLT,Hex, M16 x 2 x 160mm, Cl 10.9

2шт.

21

238495A3

PLATE

Drawbar Wear

1шт.

22

832-10416

NUT,M16 x 2, Cl 8

2шт.

23

86978768

DOWEL,M12 x 30mm L

2шт.

24

84514147

BRACKET, PIVOT

Drawbar Pivot

1шт.

25

828-20070

BOLT,Hex, M20 x 2.5 x 70mm, Cl 10.9

4шт.

26

896-12020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

27

84527824

BUSHING,35.17mm ID x 44.74mm OD x 34mm L

Euro Drawbar

1шт.

28

87712383

FRAME,Hitch

Drawbar Rear Support

1шт.

29

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

10шт.

30

84518951

BOLT,Hex, M16 x 210mm, Cl 10.9

10шт.

31

37-11232

DOWEL,3/4" x 2"

2шт.

32

828-16150

BOLT,Hex, M16 x 2 x 150mm, Cl 10.9

4шт.

33

305138A1

PLUG

Plastic

2шт.

34

47411636

BRACKET

Hitch Spacer

1шт.

35

87352470

TUBE SPACER

Coupling Spillage Bottle Mounting

4шт.

36

827-6040

BOLT,Hex, M6 x 40mm, Cl 10.9

4шт.
