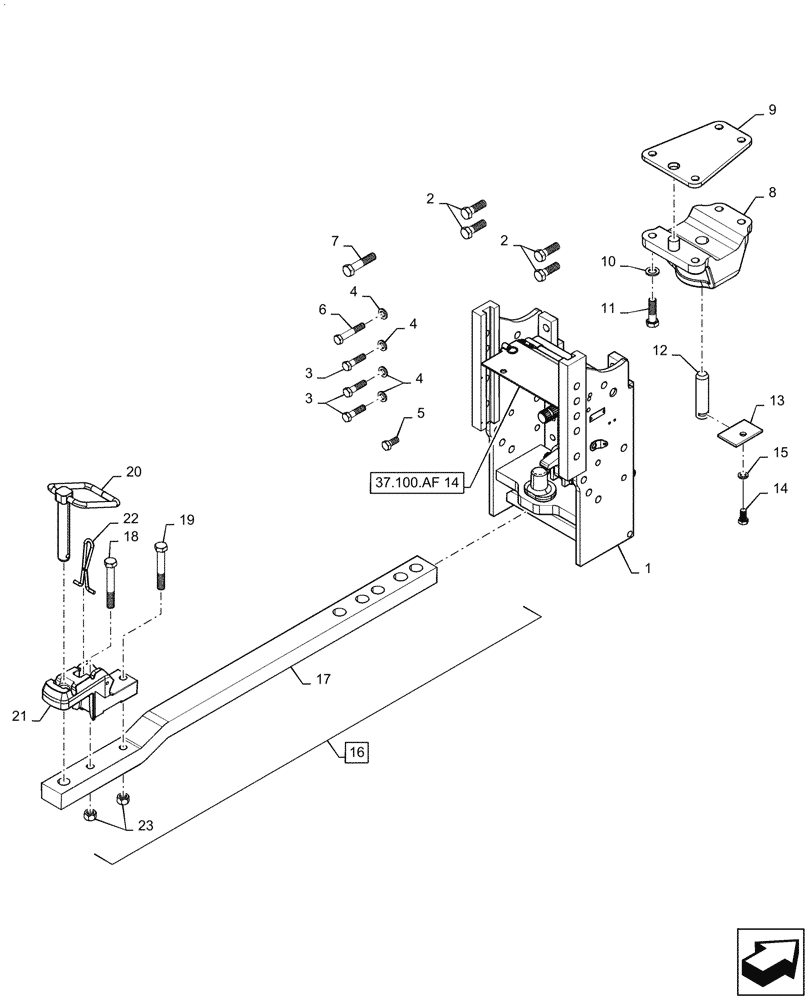

Запчасти Case IH MAGNUM 2654 (37.100.AA[05]) - VAR - 429417 - EEC EURO DRAWBAR W/SHORT LADDER FRAME AND PITON HITCH, STDRA (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

84583169

FRAME

Frame Assy, French Trailer Hitch W/Piton 360

1шт.

2

628-20060

SCREW,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

4шт.

3

828-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

6шт.

4

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

5

628-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

2шт.

6

828-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

2шт.

7

828-20090

BOLT,Hex, M20 x 2.5 x 90mm, Cl 10.9

2шт.

8

87489660

BRACKET

Assy, Drawbar Pivot Cat3

1шт.

9

47482858

PLATE

Drawbar Pivot

1шт.

10

896-12020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

11

828-20080

BOLT,Hex, M20 x 2.5 x 80mm, Cl 10.9

4шт.

12

1982103C1

PIN,34.87mm OD x 140mm L

Drawbar Pivot

1шт.

13

87720346

RETAINER

Drawbar Pin

1шт.

14

86508623

BOLT,Hex, M16 x 30mm, Cl 10.9

1шт.

15

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

1шт.

16

48046135

DRAWBAR

Assy, European EEC Approved, Incl 17 - 23

1шт.

17

275054A2

SWINGING DRAWBAR,1451mm L x 76.2mm W x 50.8mm Thk, 35mm Offset

50MM For EEC

1шт.

18

827-20140

BOLT,Hex, M20 x 2.5 x 140mm, Cl 10.9

1шт.

19

827-20130

BOLT,Hex, M20 x 2.5 x 130mm, Cl 10.9

1шт.

20

275056A3

HITCH PIN,31.75mm OD x 200mm L

1шт.

21

275055A3

TOW HOOK,247.65mm L x 76.2mm W x 44.45mm Thk, 92mm Offset

Hammerstrap

1шт.

22

232617A1

LATCH

Trigger Draw Pin

1шт.

23

829-1420

NUT,M20, Cl 10

2шт.
