Запчасти Case IH MAGNUM 2654 (31.225.AA[01]) - VAR - 420603, 420604 - POWER TAKE OFF ASSEMBLY, INPUT SHAFT (31) - IMPLEMENT POWER TAKE OFF

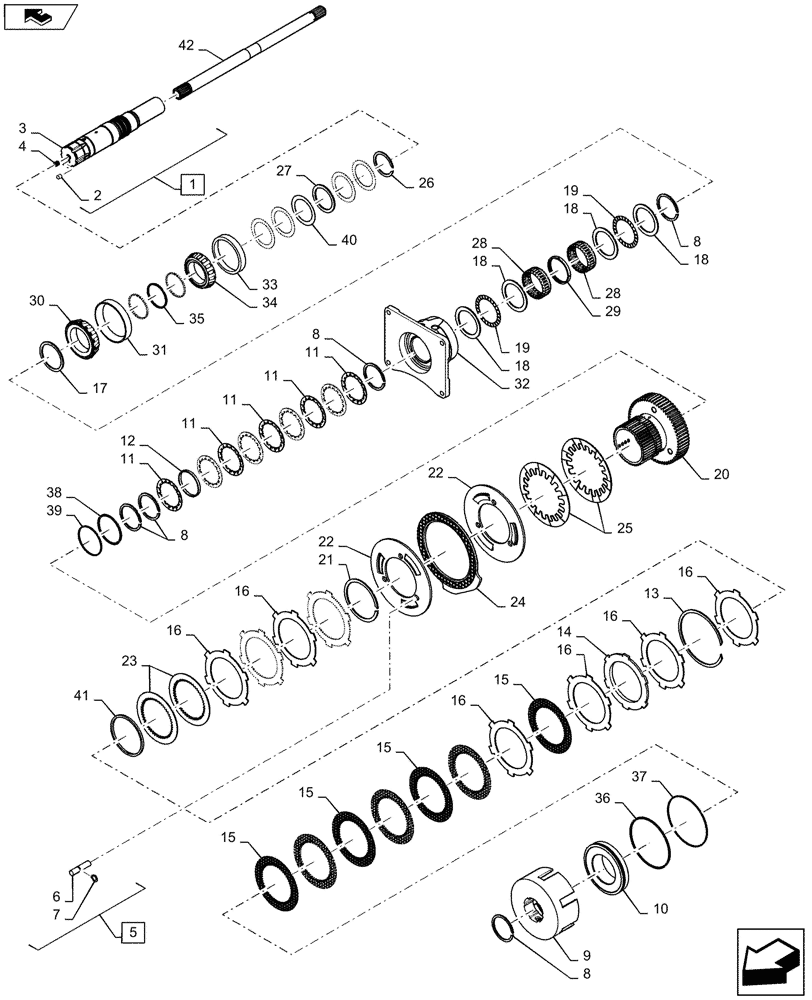

Схема запчастей Case IH MAGNUM 2654 - (31.225.AA[01]) - VAR - 420603, 420604 - POWER TAKE OFF ASSEMBLY, INPUT SHAFT (31) - IMPLEMENT POWER TAKE OFF
31
23
24
35
15
21
10
4
11
14
3
12
28
38
34
37
22
19
18
15
16
39
25
36
6
11
40
2
16
8
33
18
17
26
8
16
7
41
18
20
1
15
16
13
9
11
18
11
16
11
42
15
30
28
32
27
16
29
22
5
8
8
19

Артикул

Название

Примечание

Количество

1

84370500

PTO SHAFT

Incl 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

PLUG; Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

SHAFT; Incl in 1

1шт.

4

877-31212

SET SCREW,Hex Skt M12 x 12mm, Flat Pt

1шт.

5

87367860

PIN,12.69mm OD x 60mm L

Pin, Brake; Incl 6 - 7

3шт.

6

NSS

NOT SOLD SEPARAT

Pin; Incl in 5

1шт.

7

100-1450

SNAP RING,#50, Ext

1шт.

8

93350C1

RING

Retaining

5шт.

9

446596A4

CARRIER

PTO Clutch

1шт.

10

84167245

PISTON

Shift Clutch

1шт.

11

87425389

BELLEVILLE SPRING

Washer, Piston

9шт.

12

87434656

SEAL,63.75mm ID x 67.75mm OD x 5.5mm Thk

Lube Management

1шт.

13

1285996C1

SNAP RING,151mm OD, Internal

Backing Plate Retaining

1шт.

14

1342645C3

CLUTCH DISC

Backing

1шт.

15

1997907C1

PLATE

Friction

8шт.

16

87738316

DISC,107mm ID x 158mm OD x 2.01mm Thk

Separator

8шт.

17

1277309C1

WASHER,65.25mm ID x 77mm OD x 3mm Thk

MFD Clutch Bearing

1шт.

18

1286043C1

THRUST WASHER,63.56mm ID x 82.38mm OD x 2.37mm Thk

Needle Bearing 2.50

4шт.

19

572182R1

THRUST BEARING,63.5mm ID x 82.5mm OD x 1.98mm W

2шт.

20

87696444

GEAR

PTO Drive, 61T

1шт.

21

101-11400

SNAP RING,#400, 3.771, Ext

1шт.

22

435393A2

PLATE

Separator

2шт.

23

87366290

BRAKE DISC,98.63mm ID x 135mm OD x 3.5mm Thk

Pusher, 3.5 mm Thick

1шт.

24

435892A2

BRAKE DISC,154.5mm ID x 197mm OD x 7.74mm Thk

Friction

1шт.

25

435636A1

SPRING

Brake Apply Disc

2шт.

26

375374R1

RING

Countershaft Snap

1шт.

27

87427329

SPACER,57.55mm ID x 72mm OD x 3.12mm L

Bearing

1шт.

28

435716A1

NEEDLE BEARING,63.49mm ID x 73.04mm OD x 25.21mm W

2шт.

29

86989332

RING

Needle Bearing Support

1шт.

30

630694C1

BEARING CONE,64.98mm ID x 105mm OD x 24mm W

1шт.

31

630695C1

BEARING CUP,65mm ID x 105mm OD x 24mm W

1шт.

32

87696449

CAGE

IPTO Input

1шт.

33

105497H

BEARING CUP,96.85mm OD x 15.77mm W

1шт.

34

L33289

ROLLER BEARING,57.1565mm ID x 21.857mm Thk

1шт.

35

1286026C1

SEALING RING,Locking, 59.41mm ID x 63.41mm OD x 2.87mm Thk

Seal

3шт.

36

1286083C1

O-RING,1.78mm Thk x 120.37mm ID, -48, 60 Duro

Low Shift Clucth Piston

1шт.

37

1286079C1

RING,128.96mm ID x 132mm OD x 2.28mm Thk

Seal, Shift Clutch Piston

1шт.

38

1286081C1

O-RING,1.78mm Thk x 69.57mm ID, -39, 60 Duro

Low Shfit Clutch Piston

1шт.

39

1286076C1

RING,73.46mm ID x 76.5mm OD x 2.28mm Thk

Shift Clutch Piston

1шт.

40

446943A1

SHIM

Kit, Incl 10 Shims

1шт.

41

87690675

RING,Locking, 97.5mm ID x 106.6mm OD x 4.5mm Thk

Shift Clutch TFE Seal

1шт.

42

84220811

DRIVE SHAFT

PST, OAL = 980mm (38.582")

1шт.

42

47393287

SHAFT

CVT, OAL = 636mm (25.039")

1шт.

43

86577049

TAPERED BEARING,65mm ID x 105mm OD x 24mm W

Incl 30, 31

1шт.

Выбрано товаров: 44
