Запчасти Case IH MAGNUM 2654 (31.146.AE[01]) - CLUTCH, FRONT PTO (31) - IMPLEMENT POWER TAKE OFF

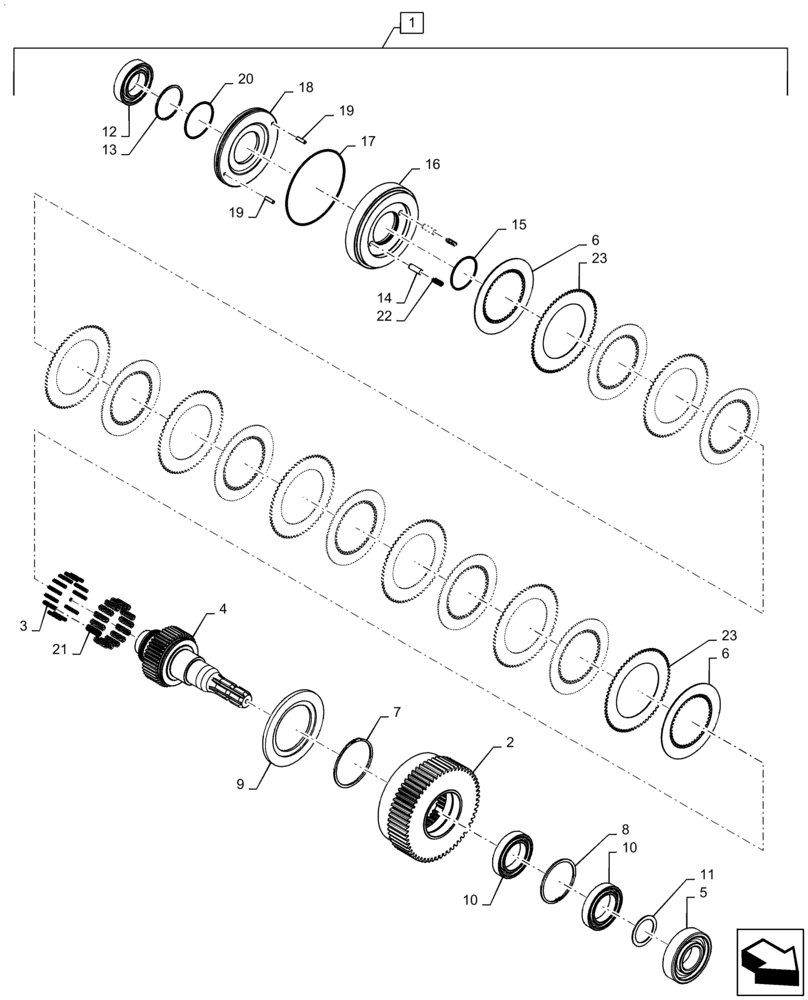

Схема запчастей Case IH MAGNUM 2654 - (31.146.AE[01]) - CLUTCH, FRONT PTO (31) - IMPLEMENT POWER TAKE OFF
19
14
10
11
7
18
19
23
8
3
13
9
20
6
10
22
17
15
5
21
6
23
1
4
12
16
2

Артикул

Название

Примечание

Количество

1

84497003

PTO CLUTCH

Front PTO, 6 Spline Output

1шт.

2

47407320

GEAR

Front PTO Output Clutch

1шт.

3

47407341

COMPRESSION SPRING

Front PTO Clutch Inner

14шт.

4

47407379

GEAR

Front PTO Output Shaft

1шт.

5

87736484

BALL BEARING

1шт.

6

87736042

CLUTCH PLATE

Front PTO Clutch Friction

9шт.

7

370010

SNAP RING,M100, External

100mm

1шт.

8

300640

SNAP RING,M95, Ext

95mm

1шт.

9

87735083

BACK-UP RING

Front PTO Clutch Backup

1шт.

10

87736483

BALL BEARING

2шт.

11

87736025

SPACER

Front PTO Clutch Disc

1шт.

12

87736482

BALL BEARING

1шт.

13

11070276

SNAP RING,M68, Ext

68mm

1шт.

14

837-10032

DOWEL,10mm OD x 32mm L

10 x 32 mm

2шт.

15

87736458

O-RING,3mm Thk x 70mm ID

Front PTO Clutch Cylinder ID

1шт.

16

87736036

THRUST PLATE

Front PTO Clutch

1шт.

17

87736459

O-RING,4mm Thk x 155mm ID

Front PTO Clutch Cylinder OD

1шт.

18

87736026

PISTON

Front PTO Clutch

1шт.

19

87736478

DOWEL,6mm OD x 24mm L

6mm x 24mm

2шт.

20

87736456

O-RING,2mm Thk x 65mm ID

Front PTO Piston ID

1шт.

21

87736039

COMPRESSION SPRING

Front PTO Clutch

14шт.

22

87736044

COMPRESSION SPRING

Front PTO Clutch Return

2шт.

23

87736460

CLUTCH DRIVING PLATE

Front PTO Clutch Drive

8шт.

Выбрано товаров: 23
