Запчасти Case IH MAGNUM 2654 (27.120.AF[02]) - REAR AXLE, PLANETARY - MAGNUM 280, 310, 2654, 3154 (27) - REAR AXLE SYSTEM

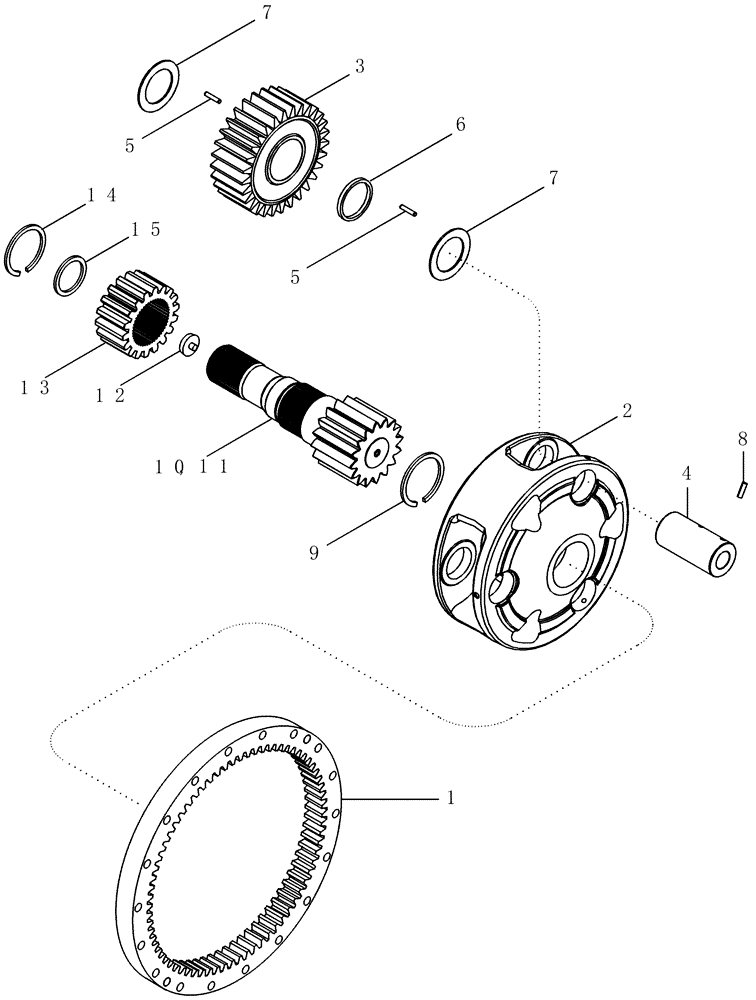

Схема запчастей Case IH MAGNUM 2654 - (27.120.AF[02]) - REAR AXLE, PLANETARY - MAGNUM 280, 310, 2654, 3154 (27) - REAR AXLE SYSTEM
3
5
1
2
12
13
7
15
14
6
4
7
10
5
9
11
8

Артикул

Название

Примечание

Количество

1

310695A1

RING GEAR,77T

2шт.

2

388366A1

PINION CARRIER

2шт.

3

310694A2

PLANETARY GEAR,29T

6шт.

4

310697A3

SHAFT,31.75mm ID x 63.4mm OD x 130mm L

6шт.

5

1349347C1

NEEDLE ROLLER,Needle, 6.65mm OD x 34.09mm L

396шт.

6

86985634

SPACER, RING,66.5mm ID x 76.45mm OD x 7mm L

Nylon

6шт.

7

84214687

WASHER,64.3mm ID x 95mm OD x 2.6mm Thk

Steel, Service Only, Replaces Black Plastic Thrust Washer This Application

12шт.

8

838-3826

PIN,M8 x 26, Coiled

6шт.

9

101-11350

SNAP RING,#350, Ext

2шт.

10

395481A1

GEAR SHAFT

16T, LH

1шт.

11

395481A1

GEAR SHAFT

16T, RH

1шт.

12

1981327C1

PLUG

Sun Shaft Locator, RH Only

1шт.

13

1259732C1

HUB,47T Internal/18T External

2шт.

14

101-11275

SNAP RING,#275, 2.594, Ext

2шт.

15

1259753C1

THRUST WASHER

2шт.

Выбрано товаров: 15
