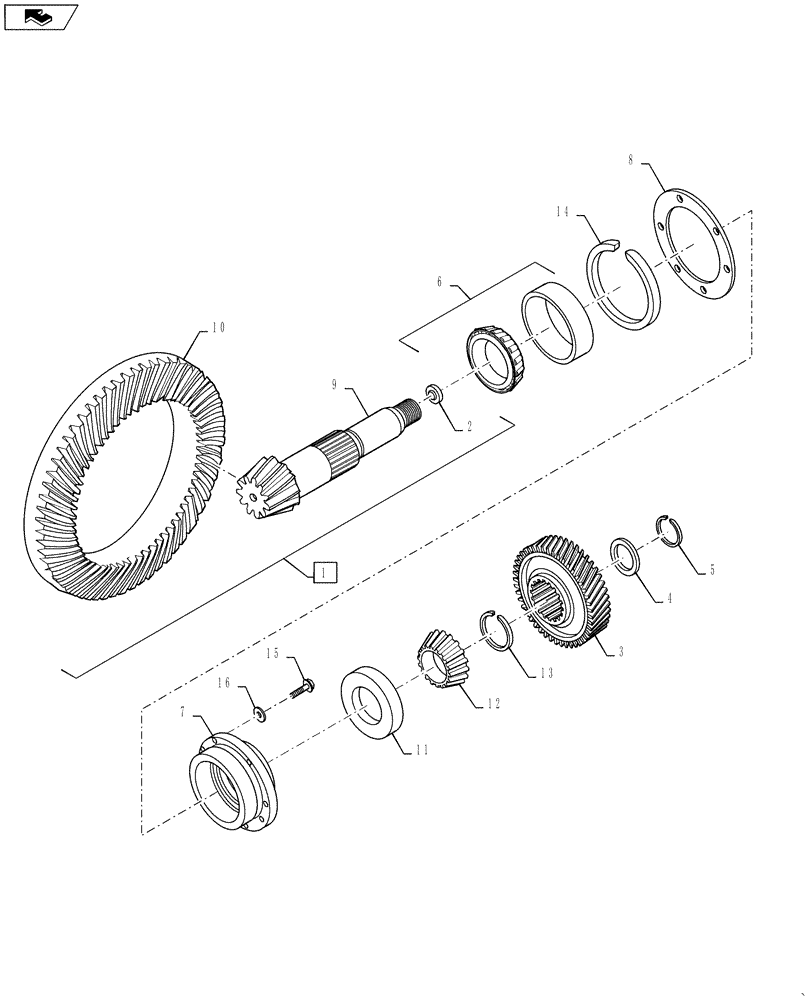

Запчасти Case IH MAGNUM 2654 (27.106.AA[05]) - VAR - 429330, 429331, 429332, 429333 - POWERSHIFT - TRANSMISSION, PINION SHAFT AND GEARS - MAGNUM 250, 280, 2654 (27) - REAR AXLE SYSTEM

1

94616C2

BEVEL GEAR

Incl 2, 9, 10

1шт.

2

92825C1

CAP WASHER

Creeper Countershaft Cup

1шт.

3

87618938

DRIVEN GEAR

46T

1шт.

4

1286039C1

SPACER

Speed Input Shaft Bearing

1шт.

5

143906C1

SNAP RING

Driven Gear

1шт.

6

924849C1

BEARING,74.98mm ID x 120mm OD x 31.1mm W

1шт.

7

1068264C1

BEARING HOUSING

Incl 8

1шт.

8

120977C1

SHIM,171mm ID x 228mm OD x 0.08mm Thk

2шт.

8

120978C1

SHIM,171mm ID x 228mm OD x 0.1mm Thk

2шт.

8

120979C1

SHIM,171mm ID x 228mm OD x 0.13mm Thk

2шт.

8

120980C1

SHIM,171mm ID x 228mm OD x 0.3mm Thk

2шт.

9

NSS

NOT SOLD SEPARAT

Pinion, Incl in 1

1шт.

10

NSS

NOT SOLD SEPARAT

Gear, Incl in 1

1шт.

11

108326H

BEARING CUP,3.81" ID x 4.71" OD x 0.92"

1шт.

12

94666C1

TAPERED BEARING,73.03mm ID x 30.16mm W

1шт.

13

131432A1

RING,Rtng, Ext, 68.91mm ID x 3.62mm

1шт.

13

94661C1

RING,Rtng, Ext, 68.91mm ID x 3.70mm

1шт.

13

94662C1

RING,Rtng, Ext, 68.91mm ID x 3.78mm

1шт.

13

94663C1

RING,Rtng, Ext, 68.91mm ID x 3.86mm

1шт.

13

110042C1

RING,Rtng, Ext, 68.91mm ID x 3.94mm

1шт.

13

94664C1

RING,Rtng, Ext, 68.91mm ID x 4.02mm

1шт.

13

131433A1

RING,Rtng, Ext, 68.91mm ID x 4.10mm

1шт.

13

131434A1

RING,Rtng, Ext, 68.91mm ID x 4.18mm

1шт.

14

120965C1

SNAP RING

Retaining, Internal Type

1шт.

15

566-12035

12 PT SCREW,Flg, M12 x 35mm, Cl 12.9

6шт.

16

1251958C1

WASHER,13mm ID x 25.40mm OD x 1.367mm, HTS

Bevel Pinion Bearing Cage

6шт.
