Запчасти Case IH MAGNUM 2654 (27.106.AA[04]) - VAR - 429330, 429331, 429332, 429333 - TRANSMISSION PINION SHAFT AND GEARS, HEAVY DUTY REAR AXLE - MAGNUM 310, 340, 3154 (27) - REAR AXLE SYSTEM

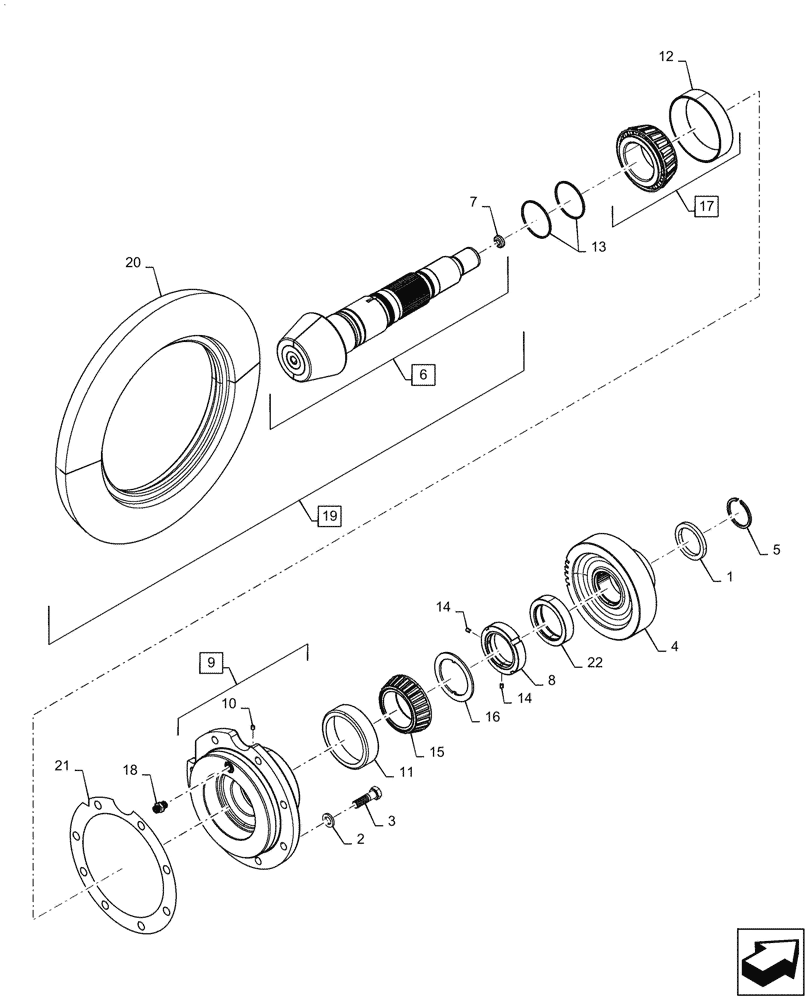

Схема запчастей Case IH MAGNUM 2654 - (27.106.AA[04]) - VAR - 429330, 429331, 429332, 429333 - TRANSMISSION PINION SHAFT AND GEARS, HEAVY DUTY REAR AXLE - MAGNUM 310, 340, 3154 (27) - REAR AXLE SYSTEM
20
13
3
16
17
7
14
15
22
9
12
8
2
14
11
10
18
4
21
5
6
1
19

Артикул

Название

Примечание

Количество

1

87357632

SPACER,63.40mm ID x 82.55mm OD x 6.80mm Thk

Constant Mesh Gear, 6.8

1шт.

1

48097966

Constant Mesh Gear, 6.9

SPACER,63.40mm ID x 82.55mm OD x 6.90mm Thk

1шт.

1

48096503

Constant Mesh Gear, 7.0

SPACER,63.40mm ID x 82.55mm OD x 7.00mm Thk

1шт.

1

48097967

Constant Mesh Gear, 7.1

SPACER,63.40mm ID x 82.55mm OD x 7.10mm Thk

1шт.

1

48096504

Constant Mesh Gear, 7.2

SPACER,63.40mm ID x 82.55mm OD x 7.20mm Thk

1шт.

1

48097968

Constant Mesh Gear, 7.3

SPACER,63.40mm ID x 82.55mm OD x 7.30mm Thk

1шт.

1

48096505

Constant Mesh Gear, 7.4

SPACER,63.40mm ID x 82.55mm OD x 7.40mm Thk

1шт.

1

48097969

Constant Mesh Gear, 7.5

SPACER,63.40mm ID x 82.55mm OD x 7.50mm Thk

1шт.

1

87357636

SPACER,63.40mm ID x 82.55mm OD x 7.60mm Thk

Constant Mesh Gear, 7.6

1шт.

1

48097970

Constant Mesh Gear, 7.7

SPACER,63.40mm ID x 82.55mm OD x 7.70mm Thk

1шт.

1

48096506

Constant Mesh Gear, 7.8

SPACER,63.40mm ID x 82.55mm OD x 7.80mm Thk

1шт.

1

48097971

Constant Mesh Gear, 7.9

SPACER,63.40mm ID x 82.55mm OD x 7.90mm Thk

1шт.

1

48096507

Constant Mesh Gear, 8.0

SPACER,63.40mm ID x 82.55mm OD x 8.00mm Thk

1шт.

1

48097972

Constant Mesh Gear, 8.1

SPACER,63.40mm ID x 82.55mm OD x 8.10mm Thk

1шт.

1

48096508

Constant Mesh Gear, 8.2

SPACER,63.40mm ID x 82.55mm OD x 8.20mm Thk

1шт.

1

48097973

Constant Mesh Gear, 8.3

SPACER,63.40mm ID x 82.55mm OD x 8.30mm Thk

1шт.

1

87385427

SPACER,63.4mm ID x 82.55mm OD x 8.40mm Thk

Constant Mesh Gear, 8.4

1шт.

2

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

3

828-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 10.9

8шт.

4

87615782

DRIVEN GEAR

Constant Mesh, 46T

1шт.

5

47381069

RING

1шт.

6

47531215

SHAFT

Heavy Duty Rear Axle, 11T, Incl 7

1шт.

7

92825C1

CAP WASHER

1шт.

8

47458099

NUT,M75 x 1.5, 22mm H, HT

Bearing Setting

1шт.

9

47528910

BEARING CARRIER

Pinion, Heavy Duty Rear Axle, Incl 10

1шт.

10

87520609

PLUG

Expansion, 6.5mm

1шт.

11

160301R1

BEARING ASSY,133.35mm OD x 32.55mm W

1шт.

12

87444654

BEARING CUP,150mm OD x 49mm W

1шт.

13

87497396

SEALING RING,Locking, 79.61mm ID x 83.61mm OD x 2.87mm Thk

2шт.

14

120242

SET SCREW,Hex Skt, M6 x 10mm, Cup Pt

2шт.

15

1997115C1

TAPERED BEARING,82.575 mm ID x 39.738 mm

1шт.

16

87629649

WASHER,83mm ID x 110mm OD x 4mm Thk

Anti-Rotation

1шт.

17

87444940

TAPERED BEARING

Incl 12

1шт.

18

47472894

FITTING,2mm Orifice, M14 ORB

1шт.

19

47556759

SERVICE KIT

Bevel Gear Set, Heavy Duty Rear Axle, Incl 6, 20

1шт.

20

84466934

RING GEAR

54T

1шт.

21

84569646

SHIM,236mm ID x 310mm OD x 0.5mm Thk

Pinion Setting

1шт.

21

84567698

SHIM,236mm ID x 310mm OD x 0.1mm Thk

Pinion Setting

1шт.

21

84567697

SHIM,236mm ID x 310mm OD x 0.08mm Thk

Pinion Setting

1шт.

21

84567700

SHIM,236mm ID x 310mm OD x 0.3mm Thk

Pinion Setting

1шт.

21

84567699

SHIM,236mm ID x 310mm OD x 0.13mm Thk

Pinion Setting

1шт.

22

47460987

SPACER,74mm ID x 100mm OD x 22mm L

Heavy Duty Final Drive Pinion

1шт.

Выбрано товаров: 42
