Запчасти Case IH MAGNUM 2654 (23.314.AG[01]) - SHIELD, DRIVE SHAFT, POWERSHIFT, SUSPENDED FRONT AXLE (23) - FOUR WHEEL DRIVE SYSTEM

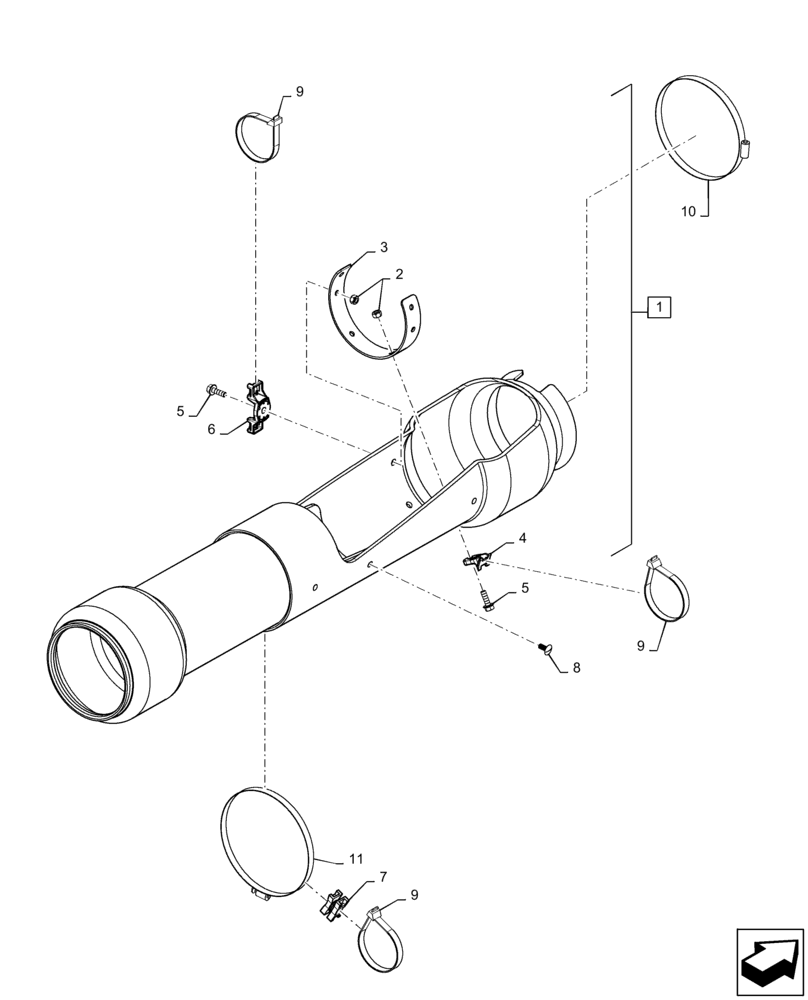

Схема запчастей Case IH MAGNUM 2654 - (23.314.AG[01]) - SHIELD, DRIVE SHAFT, POWERSHIFT, SUSPENDED FRONT AXLE (23) - FOUR WHEEL DRIVE SYSTEM
9
5
9
11
4
9
10
1
2
3
6
5
8
7

Артикул

Название

Примечание

Количество

1

47707068

SHIELD

MFD Drive Shaft, Powershift with Saddle Suspension, Incl 2 - 6

1шт.

2

832-46408

NUT,M8 x 1.25, Cl 8

6шт.

3

47706588

REINFORCEMENT

MFD Drive Shaft Shield Reinforcement

1шт.

4

84474186

BASE

Tie

2шт.

5

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

6шт.

6

84360209

BASE

Tie

2шт.

7

86991001

SPACER

Tie Mount, Dual Swivel Saddle

2шт.

8

93199C1

FASTENER

Ratchet, Nylon

4шт.

9

86991007

CABLE TIE,509mm L

8шт.

10

79083856

CLAMP,165mm - 200mm, Worm Gear

MFD Axle End

1шт.

11

214-14104

HOSE CLAMP,155.45mm - 177.8mm

Swivel Mount Retaining

1шт.

Выбрано товаров: 11
