Запчасти Case IH MAGNUM 260 (27.100.AB[06]) - REAR AXLE, HOUSING - CVT (27) - REAR AXLE SYSTEM

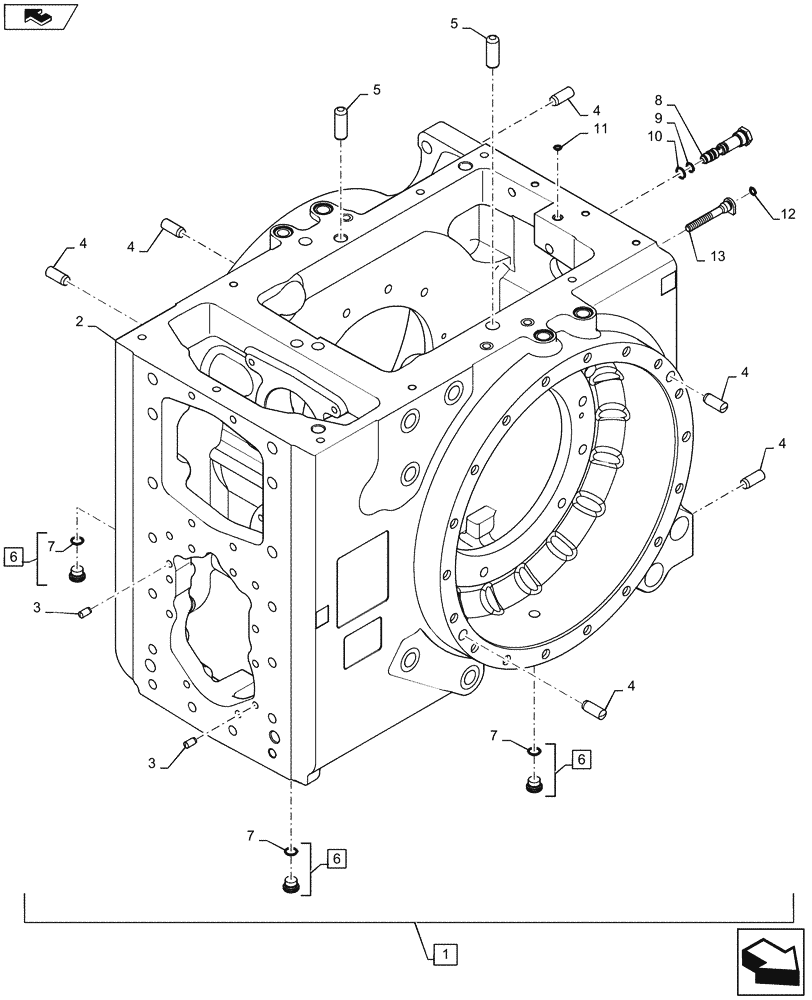

Схема запчастей Case IH MAGNUM 260 - (27.100.AB[06]) - REAR AXLE, HOUSING - CVT (27) - REAR AXLE SYSTEM
4
10
3
4
6
4
4
6
4
5
6
1
8
7
12
4
9
13
7
2
7
11
home
3
5

Артикул

Название

Примечание

Количество

1

87497452

HOUSING

Rear Axle, CVT, Incl 2 - 10, Serial Range: -ZERD01704

1шт.

1

47622506

HOUSING

Rear Axle, CVT, Incl 2 - 10, Start Serial: ZERD01705

1шт.

2

NSS

NOT SOLD SEPARAT

Housing, Incl in 1

1шт.

3

837-10020

DOWEL,M10 x 20

2шт.

4

837-16040

DOWEL,M16 x 40

6шт.

5

37-11232

DOWEL,3/4" x 2"

2шт.

6

86598046

PLUG,M18 x 1.5 ORB

Incl 7

3шт.

7

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

3шт.

8

411075A1

FITTING

Diff Lock Pressure

1шт.

9

238-6111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 6, 90 Duro

1шт.

10

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

1шт.

11

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

, Serial Range: -ZERD01704

1шт.

11

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

, Start Serial: ZERD01705

1шт.

12

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

13

47533513

TUBE

Pinion Mesh Lube

1шт.

Выбрано товаров: 15
