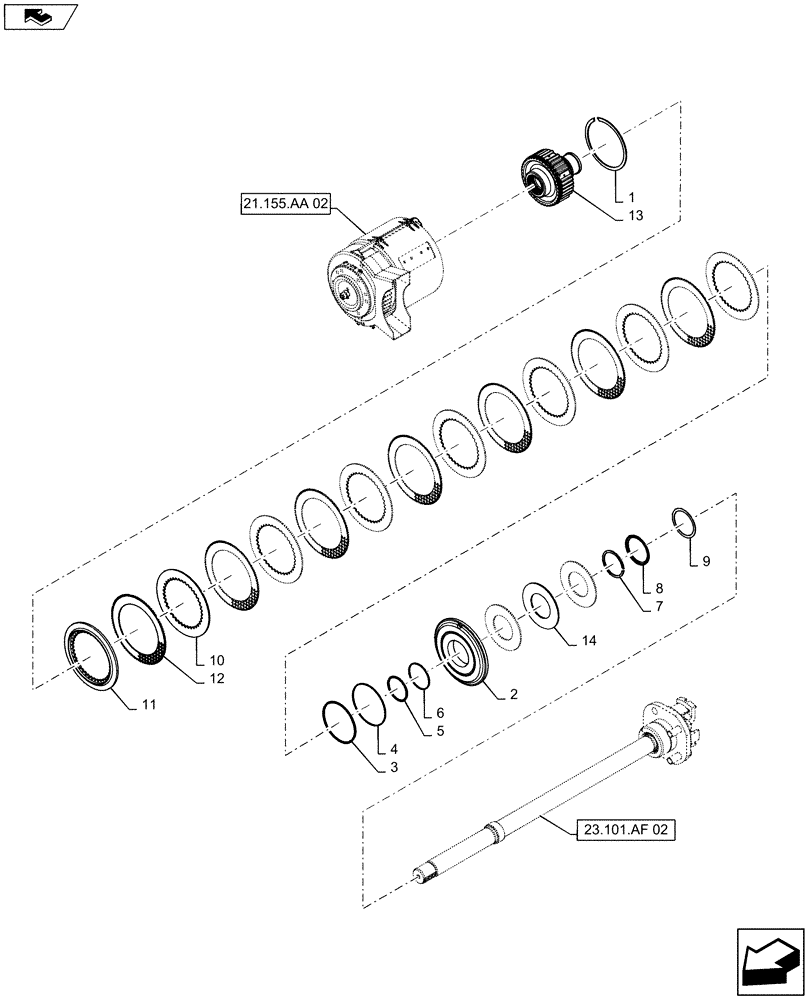

Запчасти Case IH MAGNUM 260 (21.155.AA[10]) - POWERSHIFT - RANGE TRANSMISSION - MFD CLUTCH CL 5 AXLE - ASN ZDRD04268 (21) - TRANSMISSION

1

87347811

CIRCLIP

Retaining, External

1шт.

2

84524002

PISTON

Emergency Brake

1шт.

3

87037455

O-RING,0.103" Thk x 5.237" ID, -160, Cl 7, 75 Duro

1шт.

4

87433971

SEAL,139.65mm ID x 143.05mm OD x 2.87mm Thk

Park Brake/MFD, Large

1шт.

5

238-7151

O-RING,0.103" Thk x 2.99" ID, -151, Cl 7, 75 Duro

1шт.

6

87433970

SEAL,85.4mm ID x 88.8mm OD x 2.87mm Thk

Park Brake/MFD, Small

1шт.

7

87434027

CIRCLIP

Retaining, External

1шт.

8

84530165

SNAP RING

Retaining

1шт.

9

47572513

SHIM KIT,84.50mm ID x 100mm OD

1.0mm Thk ID 84.5mm OD

1шт.

10

87449793

SEPARATOR

Plate

5шт.

11

87347805

BACKING PLATE

1шт.

12

84159176

CLUTCH PLATE

Friction

5шт.

13

84482494

HUB

MFD

1шт.

14

47523411

BELLEVILLE SPRING

MFD

3шт.
