Запчасти Case IH MAGNUM 260 (21.155.AA[08]) - POWERSHIFT - RANGE TRANSMISSION - MFD CLUTCH CL 4.5 AXLE - ASN ZDRD04268 (21) - TRANSMISSION

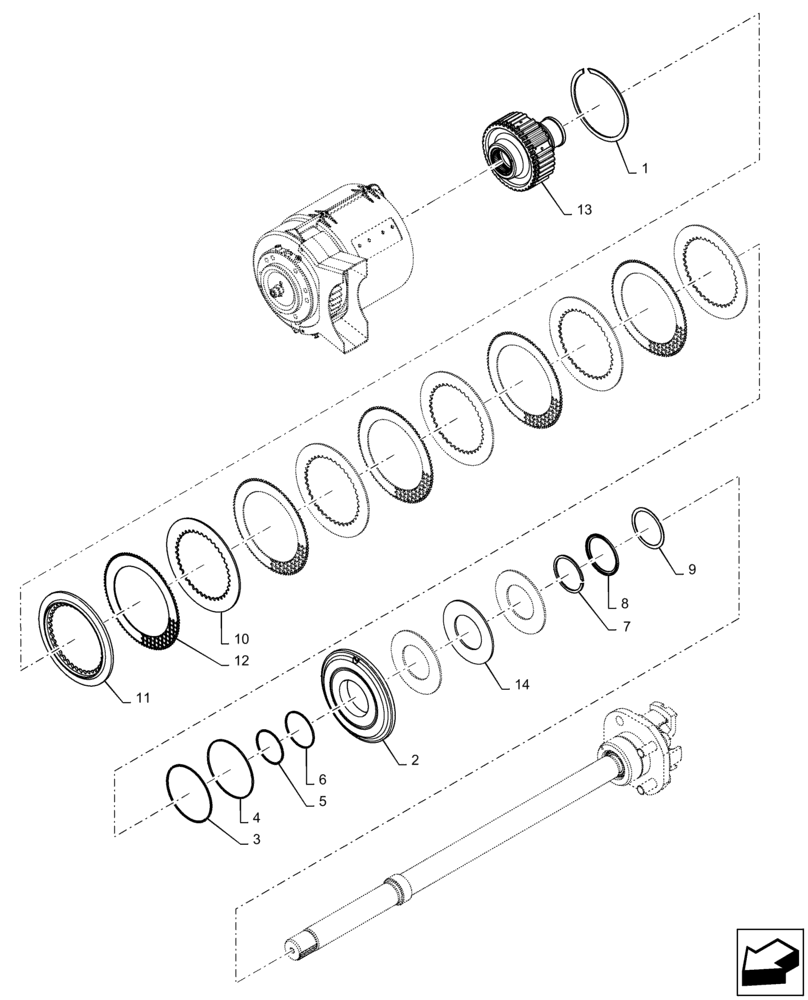

Схема запчастей Case IH MAGNUM 260 - (21.155.AA[08]) - POWERSHIFT - RANGE TRANSMISSION - MFD CLUTCH CL 4.5 AXLE - ASN ZDRD04268 (21) - TRANSMISSION
11
5
12
8
6
9
2
13
4
1
3
7
14
10

Артикул

Название

Примечание

Количество

1

87347811

CIRCLIP

Retaining, External

3шт.

2

84524002

PISTON

Emergency Brake

2шт.

3

87037455

O-RING,0.103" Thk x 5.237" ID, -160, Cl 7, 75 Duro

2шт.

4

87433971

SEAL,139.65mm ID x 143.05mm OD x 2.87mm Thk

Park Brake/MFD, Large

2шт.

5

238-7151

O-RING,0.103" Thk x 2.99" ID, -151, Cl 7, 75 Duro

2шт.

6

87433970

SEAL,85.4mm ID x 88.8mm OD x 2.87mm Thk

Park Brake/MFD, Small

3шт.

7

87434027

CIRCLIP

Retaining, External

3шт.

8

84530165

SNAP RING

Retaining

3шт.

9

47572513

SHIM KIT,84.50mm ID x 100mm OD

84.5 X 100, HRD STL PLN

3шт.

10

87449793

SEPARATOR

Plate

16шт.

11

84524003

PLATE,161.88mm ID x 228.5mm OD x 19.35mm Thk

2шт.

12

84159176

CLUTCH PLATE

Friction

9шт.

13

84482494

HUB

MFD

1шт.

14

47523411

BELLEVILLE SPRING

MFD

3шт.

Выбрано товаров: 14
