Запчасти Case IH MAGNUM 260 (21.105.AI[03]) - POWERSHIFT - TRANSMISSION LUBRICATION LINES - HD - 315, 340 (21) - TRANSMISSION

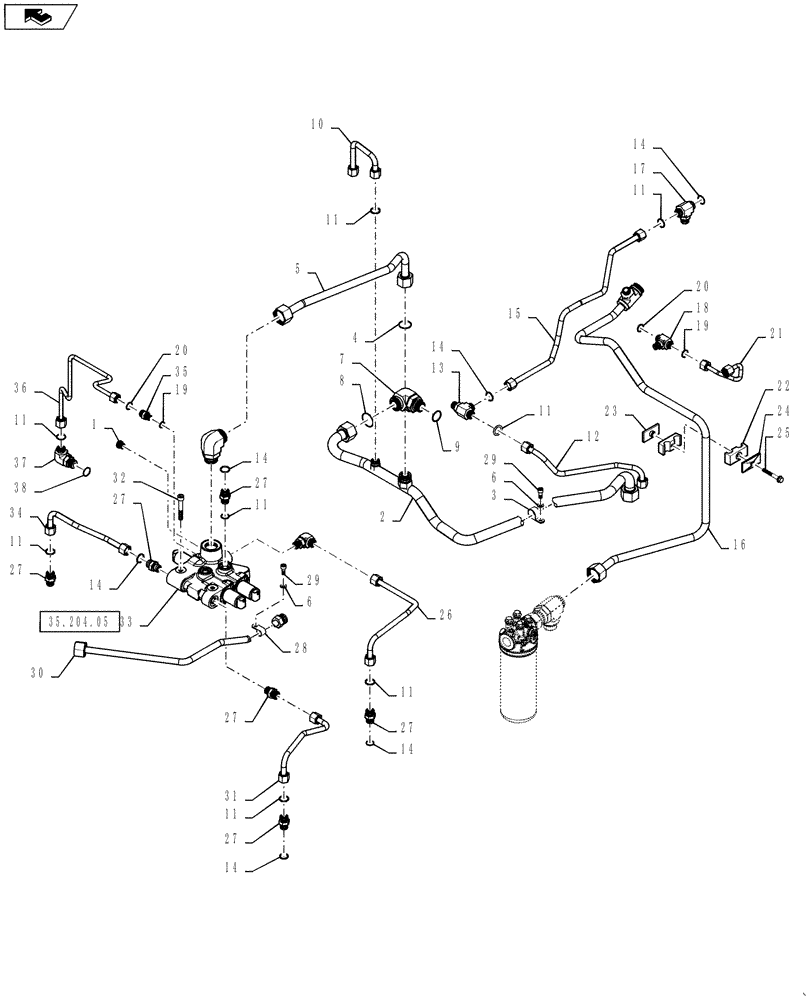

Схема запчастей Case IH MAGNUM 260 - (21.105.AI[03]) - POWERSHIFT - TRANSMISSION LUBRICATION LINES - HD - 315, 340 (21) - TRANSMISSION
37
1
19
2
9
15
20
26
21
12
29
27
18
11
33
11
20
31
11
14
25
36
28
14
10
11
13
27
3
30
22
home
14
35
11
35.204.05
11
14
14
19
6
27
4
7
16
8
27
32
17
29
11
27
14
23
27
11
6
38
24
34
5

Артикул

Название

Примечание

Количество

1

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Lube Relief

1шт.

2

84474358

HYD TUBE

1шт.

3

515-22254

CLAMP,1", Insul, 5/16" Bolt

1шт.

4

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

5

84474361

HYD TUBE

1шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

7

700-313

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. Reference 8, 9

1шт.

8

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

9

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

10

87319223

TUBE,0.50" OD

1шт.

11

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

9шт.

12

451060A3

TUBE

A, Odd/Even Lube

1шт.

13

700-412

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. Reference 11, 14

1шт.

14

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

7шт.

15

437336A3

HYD TUBE

A, Drop Box Lube

1шт.

16

84340738

TUBE

Oil Cooler Return

1шт.

17

700-402

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. Reference 11, 14

1шт.

18

700-401

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. Reference 19, 20

1шт.

19

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.

20

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

21

282278A1

HYD TUBE,0.375" OD, 120, 50 mm Length

1шт.

22

87000140

CLAMP,Tube, 19.05mm

2 Hole 19.05-19.05mm DIA Ribbed

1шт.

23

384871A1

PLATE

Hose Clamp Weld

1шт.

24

1347127C1

PLATE

1шт.

25

844-8060

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

1шт.

26

84544198

TUBE

1шт.

27

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. Reference 11, 14

7шт.

28

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

1шт.

29

864-8020

HEX SOC SCREW,M8 x 20mm, Cl 8.8

2шт.

30

84544192

TUBE

1шт.

31

84544199

TUBE

1шт.

32

864-10065

HEX SOC SCREW,M10 x 65mm, Cl 8.8

3шт.

33

84492006

CONTROL VALVE

1шт.

34

84544193

TUBE

1шт.

35

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. Reference 19, 20

1шт.

36

84478415

TUBE

1шт.

37

700-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl. Reference 11, 38

1шт.

38

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

Выбрано товаров: 38
