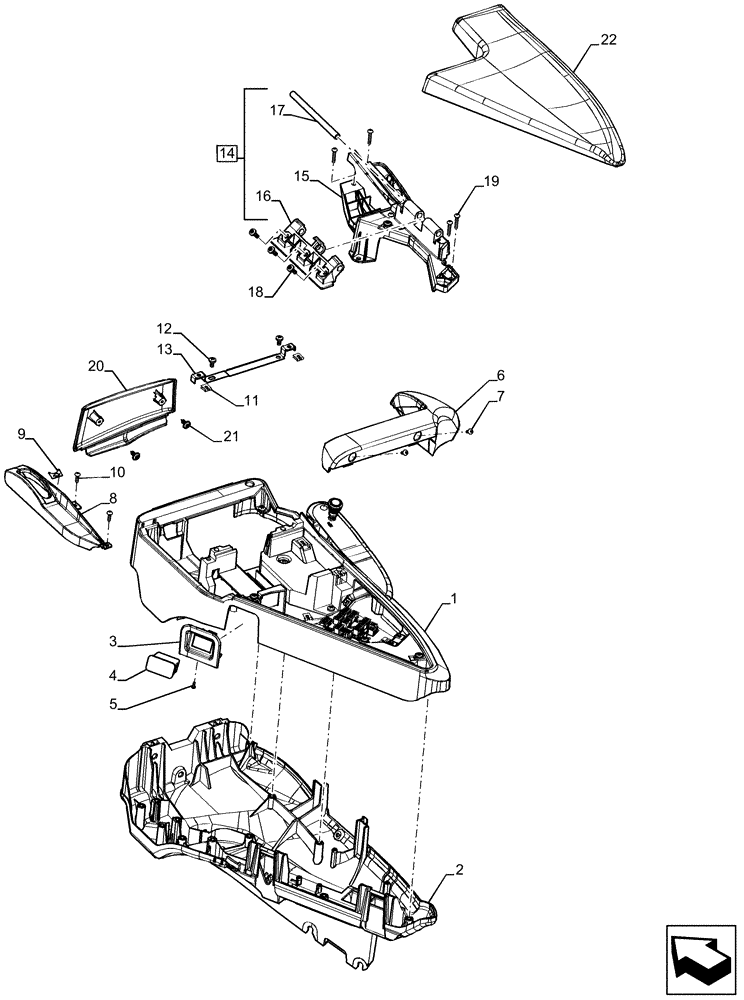

Запчасти Case IH MAGNUM 260 (90.151.AG[01]) - ARMREST (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84150708

SHELL

Armrest, Upper

1шт.

2

47510303

SHELL

Armrest. Lower

1шт.

3

84150714

BEZEL

SHELL Bezel, Adjuster Switch

1шт.

4

82022763

PLUG

Blanking, Rocker Switch

1шт.

5

82007240

SCREW,Round Washer, 3mm OD x 1.34mm Thd

Panhead, ST3.5x13 ZND

1шт.

6

84202333

SUPPORT

Wrist

1шт.

7

87564728

SCREW,Phillips Drive, Pan HD, #10 - 16 x 1/2"

Tapping, #10-16X1/2 B PAN C/R

3шт.

8

84122981

BEZEL

Throttle

1шт.

9

84145169

DECAL

Tortoise

1шт.

10

15903977

SELF-TAP SCREW,Pan Head, M4.8 x 1.6 x 19mm

ST4.8X19 P/HD CR-Z CST BLO

2шт.

11

84148337

SPRING NUT

Spring, 4.8

13шт.

12

840-1612

SCREW,Pan, M6 x 12mm, Cl 4.8

10шт.

13

84226106

BRACKET

EHR Base

1шт.

14

84204558

HINGE

Assembly, Armrest Cushion, Incl 15 - 17

1шт.

15

84153062

HINGE

Fixed

1шт.

16

87487262

HINGE

Moveable

1шт.

17

84147684

PIN,10mm OD x 144mm L

Hinge

1шт.

18

13276217

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 5.8, Full Thd

3шт.

19

260-56516

SELF-TAP SCREW,Phillips Drive, Pan HD, #10 - 16 x 1"

5шт.

20

87493860

PANEL

Less SWCD

1шт.

21

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

2шт.

22

87495096

CUSHION

Armrest

1шт.
