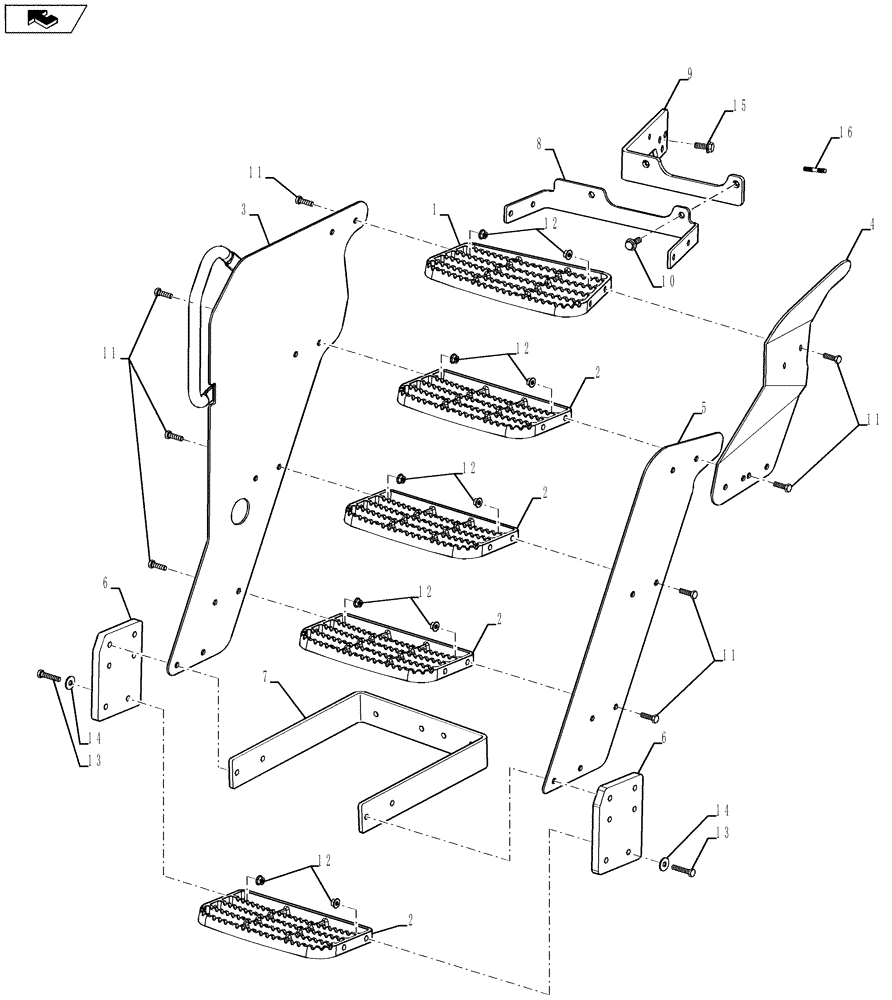

Запчасти Case IH MAGNUM 260 (90.118.AE[01]) - LADDER ASSY - NAR (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87310397

STEP

1шт.

2

87301185

STEP

4шт.

3

84345620

RISER

1шт.

4

84256934

RISER

Rear Upper Step

1шт.

5

87486131

RISER

Rear

1шт.

6

87486039

RISER

2шт.

7

87486133

BRACKET

Lower Step

1шт.

8

84181928

BRACKET, SUPPORTING

Front, Upper

1шт.

9

84360207

BRACKET, SUPPORTING

Rear, Upper

1шт.

10

844-12035

BOLT,Hvy Hex, M12 x 35mm, Cl 8.8

2шт.

11

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

16шт.

12

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

26шт.

13

844-10035

BOLT,Hex, M10 x 35mm, Cl 8.8

8шт.

14

86642464

WASHER,11mm ID x 30mm OD x 2.5mm Thk

8шт.

15

844-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 8.8

3шт.

16

13449721

STUD,M10 x 1.25 x 30mm L, Cl 8.8

2шт.
