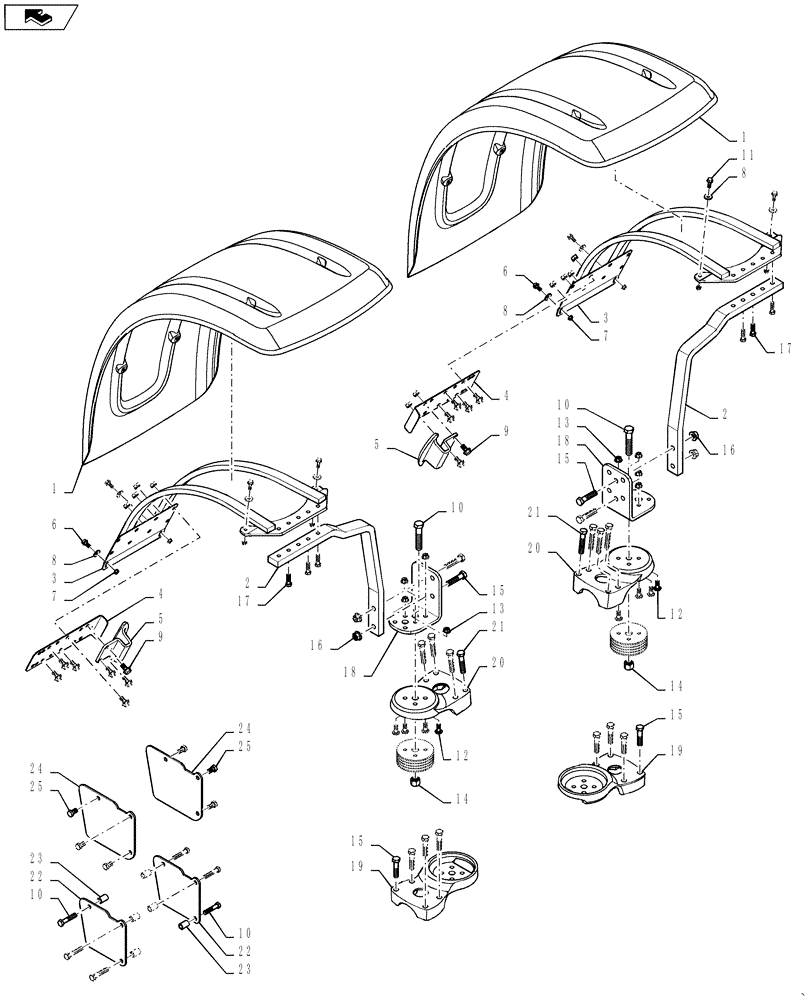

Запчасти Case IH MAGNUM 260 (90.116.AC[04]) - CNH AXLE - FRONT FENDER ASSY - WIDE 650MM (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84547763

FENDER

Wide

2шт.

2

84546384

SUPPORT

Fender Bar

2шт.

3

47404967

FRAME

Fender support

2шт.

4

84546386

PLATE

Bumper Bar Support

2шт.

5

84546378

BUMPER

Bumper

2шт.

6

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

7

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

Hex Head Black M8 x 30

8шт.

8

140041

WASHER,M8 x 28mm OD x 3mm Thk

4шт.

9

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

6шт.

10

827-20100

BOLT,Hex, M20 x 2.5 x 100mm, Cl 10.9

8шт.

11

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

Fender Bar RH

4шт.

12

226690A2

RUBBER BUMPER

Fender Mount

2шт.

13

825-2412

FLANGE NUT,M12 x 1.75, Flg, Cl 8

16шт.

14

832-10420

NUT,M20 x 2.5, Cl 8

2шт.

15

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

12шт.

16

825-51416

FLANGE NUT,Flg, M16, Serr

Serrated Flange M16

4шт.

17

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

6шт.

18

47404864

SUPPORT

Upper Fender

2шт.

19

84573070

BRACKET

Fender, Lower, Serial Range: -

2шт.

Used with 4.75 / 5 Class Axles

1шт.

20

47399567

BRACKET

Fender, Lower, Serial Range: -

2шт.

Used with 4 / 4.5 Class Axles

1шт.

21

1148521

BOLT,Hex, M16 x 85, 10.9

8шт.

22

84497784

PAD

Fender Bumper, Serial Range: -

2шт.

Used with Suspended Axles

1шт.

23

84580679

SPACER

Fender Bumper Plate, Serial Range: -

6шт.

Used with Suspended Axles

1шт.

24

84394172

PAD

Fender Bumper, Serial Range: -

2шт.

Used with Standard Axles

1шт.

25

614-20035

BOLT,Hex, M20 x 2.5 x 35mm, Cl 8.8, Full Thd

6шт.
